HMMWV Overrun, Overdrive, and Fourth Clutch Assembly TM 9-2320-280-24P · Fig. 115

Every part in figure 115 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0713 Intermediate Clutch: 31 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

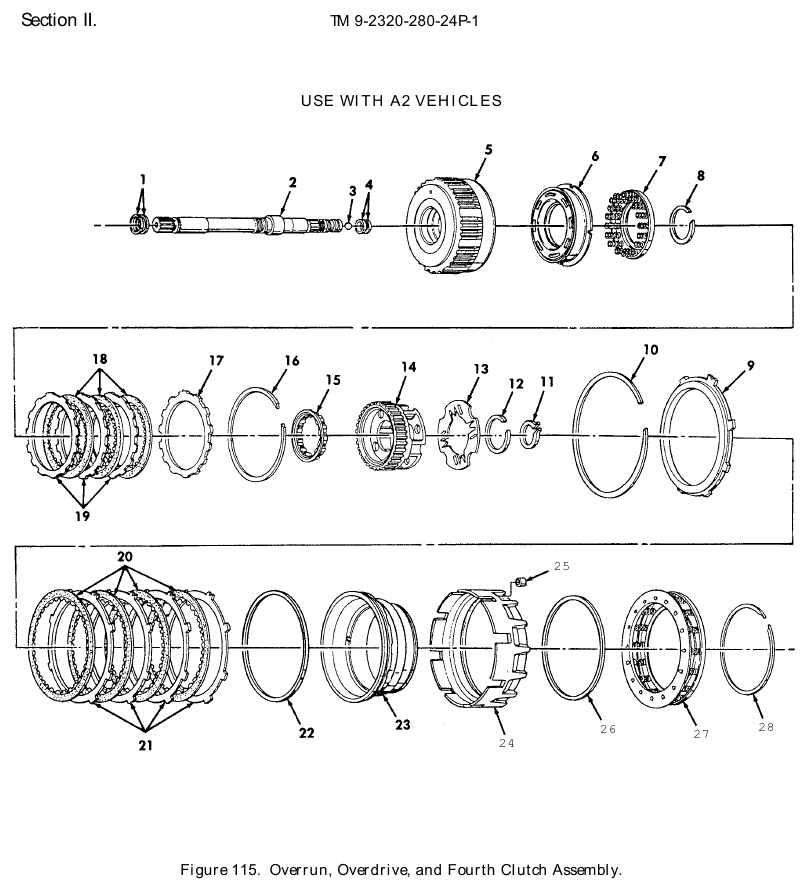

TM 9-2320-280-24P figure 115, Overrun, Overdrive, and Fourth Clutch Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Encased Seal NSN 5330-01-468-3604 · P/N 8661894 SEAL,PLAIN ENCASED PART OF KIT P/N 24204441 PART OF KIT P/N 25205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	2	We can source it $25–$40 eachtypical
2	Turbine Nonaircraft Gas TU Shaft NSN 2835-01-478-4268 · P/N 24200128 SHAFT ASSEMBLY TURB Fits: All A2 models, plus M1123	1	We can source it quote only $103.94 per eachgov't list price
3	Bearing Ball NSN 3110-01-412-0490 · P/N 453571 BALL,BEARING .28 Fits: All A2 models, plus M1123	2	We can source it
4	Plain Seal P/N 8661893 SEAL,PLAIN PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	2	Ask us
5	Transmission Mechan Housing Part NSN 2520-01-410-8079 · P/N 8680918 HOUSING PART,TRANSM Fits: All A2 models, plus M1123	1	2 in stock $467.85 per eachgov't list price
6	Clutch Assembly Carrier NSN 2520-01-456-5014 · P/N 24202092 CARRIER,CLUTCH ASSE Fits: All A2 models, plus M1123	1	367 in stock $25–$45 eachtypical
7	Retainer and Spring NSN 2520-01-461-0085 · P/N 8661629 RETAINER AND SPRING Fits: All A2 models, plus M1123	1	We can source it
8	Retaining Ring NSN 5325-01-408-7971 · P/N 8661568 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
9	Clutch Plate Transmissi Retainer NSN 2520-01-409-1751 · P/N 8661582 RETAINER,CLUTCH PLA 1995,96,97,98 Fits: All A2 models, plus M1123	1	We can source it $25–$60 eachtypical
9	Clutch Plate Transmissi Retainer NSN 2520-01-480-5436 · P/N 24205818 RETAINER,CLUTCH PLA 1999,00,01 Fits: All A2 models, plus M1123	1	We can source it $25–$60 eachtypical
10	Retaining Ring NSN 5325-01-408-7972 · P/N 8677887 RING,RETAINING 1995,96,97,98 Fits: All A2 models, plus M1123	1	We can source it
10	Retaining Ring NSN 5325-01-480-7328 · P/N 24206571 RING,RETAINING 1999,00,01 Fits: All A2 models, plus M1123	1	We can source it $25–$50 eachtypical
11	Retaining Ring NSN 5325-01-408-7969 · P/N 8675523 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it
12	Retaining Ring NSN 5325-01-412-8806 · P/N 8679439 RING,RETAINING PART OF KIT P/N 8680911 Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
13	Clutch Plate Transmissi Retainer NSN 2520-01-461-0083 · P/N 8661623 RETAINER,CLUTCH PLA Fits: All A2 models, plus M1123	1	We can source it
14	Gear Assembly Carrier NSN 3010-01-460-8309 · P/N 24200130 CARRIER,GEAR ASSEMB Fits: All A2 models, plus M1123	1	We can source it $721.61 per eachgov't list price
15	Roller Bearing Retainer NSN 3110-01-411-5784 · P/N 930678 RETAINER,ROLLER,BEA Fits: All A2 models, plus M1123	1	We can source it $75–$125 eachtypical
16	Retaining Ring NSN 5325-01-408-7970 · P/N 8661572 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
17	Clutch Plate Transmissi Retainer NSN 2520-01-461-0078 · P/N 8681449 RETAINER,CLUTCH PLA Fits: All A2 models, plus M1123	1	18 in stock $25–$55 eachtypical
18	Clutch Disk P/N 8661571 DISK,CLUTCH PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	3	Ask us
19	Intermediate Friction Clut Plate NSN 2520-01-409-1767 · P/N 24204287 PLATE,INTERMEDIATE Fits: All A2 models, plus M1123	3	20 in stock
20	Clutch Vehicular Disk NSN 2520-01-481-8478 · P/N 24204283 DISK CLUTCH VEHICUL 1997,98,99,00, 01 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	4	517 in stock $25–$45 eachtypical
20	Clutch Vehicular Disk NSN 2520-01-439-5265 · P/N 8682802 DISK,CLUTCH,VEHICUL 1995,96 PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 Fits: All A2 models, plus M1123	4	999 in stock $25–$40 eachtypical
21	Intermediate Friction Clut Plate NSN 2520-01-411-3959 · P/N 8661579 PLATE,INTERMEDIATE, Fits: All A2 models, plus M1123	4	We can source it
22	O-Ring NSN 5331-01-414-4161 · P/N 24202358 O-RING PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
23	Piston NSN 2520-01-478-6609 · P/N 8661271 PISTON,CLUTCH SHAFT Fits: All A2 models, plus M1123	1	We can source it quote only
24	Housing P/N 8686122 HOUSING,FRICTION CL PART OF KIT P/N 24200789 Fits: All A2 models, plus M1123	1	Ask us
25	Vent Plug NSN 5340-01-408-8522 · P/N 8624209 PLUG,VENT Fits: All A2 models, plus M1123	1	We can source it $432.42 per eachgov't list price
26	O-Ring P/N 24202357 O-RING PART OF KIT P/N 24205251 PART OF KIT P/N 24204441 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	Ask us
27	Clutch Spring Guide NSN 2520-01-410-8241 · P/N 8661577 CLUTCH SPRING GUIDE Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
28	Retaining Ring NSN 5325-01-461-7157 · P/N 8661578 RING,RETAINING Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
