HMMWV Front Servo, Rear Servo, and Governor Assembly TM 9-2320-280-24P · Fig. 116

Every part in figure 116 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0714 Servo Assembly: 29 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

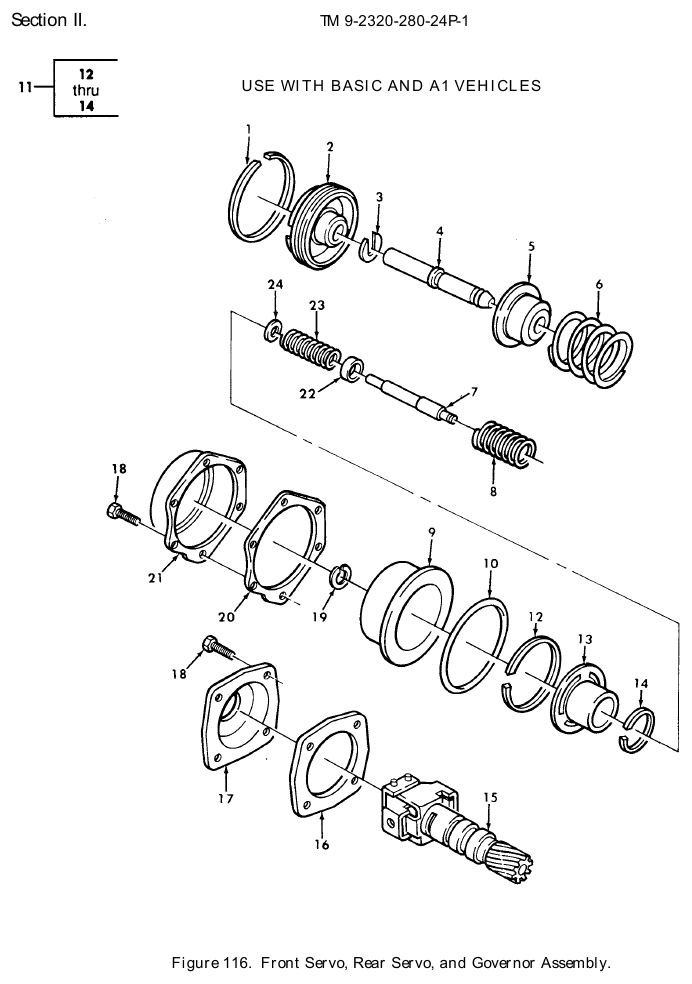

TM 9-2320-280-24P figure 116, Front Servo, Rear Servo, and Governor Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Metal Seal Ring NSN 5330-01-163-2614 · P/N 8626423 SEAL RING,METAL FRONT PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$40 eachtypical
2	Linear Actuating Cylinder Piston NSN 3040-01-149-6759 · P/N 8678537 PISTON,LINEAR ACTUA FRONT Fits: All A0 and A1 models, plus M1121	1	2 in stock
3	Slotted Washer NSN 5310-01-151-4137 · P/N 8626884 WASHER,SLOTTED FRONT Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$45 eachtypical
4	Grooved Headless Pin NSN 5315-01-152-9031 · P/N 8626879 PIN,GROOVED,HEADLES FRONT Fits: All A0 and A1 models, plus M1121	1	We can source it $80–$135 eachtypical
5	Helical Compression Spr Retainer NSN 5340-01-151-4964 · P/N 8626881 RETAINER,HELICAL CO FRONT Fits: All A0 and A1 models, plus M1121	1	We can source it $40–$75 eachtypical
6	Helical Compression Spring NSN 5360-01-150-6086 · P/N 8623489 SPRING,HELICAL,COMP FRONT Fits: All A0 and A1 models, plus M1121	1	20 in stock
7	Shoulder Headless Pin NSN 5315-01-152-9039 · P/N 8624140 PIN,SHOULDER,HEADLE REAR,2 RINGS Fits: All A0 and A1 models, plus M1121	1	We can source it
7	Shoulder Headless Pin NSN 5315-01-152-9040 · P/N 8624141 PIN,SHOULDER,HEADLE REAR, 3 RINGS Fits: All A0 and A1 models, plus M1121	1	51 in stock $39.19our price Buy online ↗
7	Shoulder Headless Pin NSN 5315-01-174-8644 · P/N 8627192 PIN,SHOULDER,HEADLE REAR, 1 WIDE AND 1 NARROW RING Fits: All A0 and A1 models, plus M1121	1	We can source it $250.88 per eachgov't list price
7	Shoulder Headless Pin NSN 5315-01-174-8645 · P/N 8627193 PIN,SHOULDER,HEADLE REAR, PLAIN Fits: All A0 and A1 models, plus M1121	1	143 in stock $53.89our price Buy online ↗
7	Shoulder Headless Pin NSN 5315-01-174-8646 · P/N 8627194 PIN,SHOULDER,HEADLE REAR, 1 NARROW AND 1 WIDE RING Fits: All A0 and A1 models, plus M1121	1	38 in stock
7	Shoulder Headless Pin NSN 5315-01-174-8647 · P/N 8627195 PIN,SHOULDER,HEADLE REAR, 2 WIDE RINGS Fits: All A0 and A1 models, plus M1121	1	108 in stock $25–$45 eachtypical
8	Helical Compression Spring NSN 5360-01-150-6087 · P/N 8624256 SPRING,HELICAL,COMP REAR Fits: All A0 and A1 models, plus M1121	1	6 in stock
9	Linear Actuating Cylinder Piston NSN 3040-01-151-5663 · P/N 8624138 PISTON,LINEAR ACTUA REAR Fits: All A0 and A1 models, plus M1121	1	2 in stock $50–$95 eachtypical
10	Gasket NSN 5330-01-150-6239 · P/N 8623430 GASKET REAR,PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
11	Piston and Ring Assembly NSN 2520-01-164-7157 · P/N 8680929 PISTON AND RING ASS REAR Fits: All A0 and A1 models, plus M1121	1	1 in stock
12	Seal NSN 5330-01-174-8090 · P/N 8623671 SEAL REAR Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$40 eachtypical
13	Piston Rear P/N 8727200 PISTON REAR Fits: All A0 and A1 models, plus M1121	1	Ask us
14	Wiper Ring NSN 5330-01-470-1922 · P/N 8627153 RING,WIPER REAR Fits: All A0 and A1 models, plus M1121	1	We can source it $40–$75 eachtypical
15	Transmission Governor Assembly NSN 2520-01-151-3857 · P/N 8679975 TRANSMISSION GOVERN Fits: All A0 and A1 models, plus M1121	1	4 in stock
16	Gasket NSN 5330-00-001-1984 · P/N 8623263 GASKET PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	15 in stock
17	Governor Transmission Cover NSN 2520-01-127-3969 · P/N 8623262 COVER,GOVERNOR,TRAN Fits: All A0 and A1 models, plus M1121	1	14 in stock
18	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 5/16-18 X 3/4 Fits: All A0 and A1 models, plus M1121	10	761 in stock
19	Retaining Ring NSN 5325-00-682-1762 · P/N MS16633-1031 RING,RETAINING REAR Fits: All A0 and A1 models, plus M1121	1	We can source it
20	Gasket NSN 5330-01-150-5928 · P/N 8623174 GASKET REAR PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	23 in stock
21	Access Cover NSN 5340-01-149-7811 · P/N 8624136 COVER,ACCESS REAR Fits: All A0 and A1 models, plus M1121	1	We can source it
22	Helical Compression Spring Seat NSN 5340-01-154-6559 · P/N 8623664 SEAT,HELICAL COMPRE REAR Fits: All A0 and A1 models, plus M1121	1	We can source it
23	Helical Compression Spring NSN 5360-01-150-7829 · P/N 8623666 SPRING,HELICAL,COMP REAR Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$45 eachtypical
24	Flat Washer NSN 5310-01-150-5919 · P/N 8623744 WASHER,FLAT REAR Fits: All A0 and A1 models, plus M1121	1	We can source it $204.48 per eachgov't list price

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
