HMMWV Front Servo, Rear Servo, and Governor Assembly TM 9-2320-280-24P · Fig. 117

Every part in figure 117 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0714 Servo Assembly: 39 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

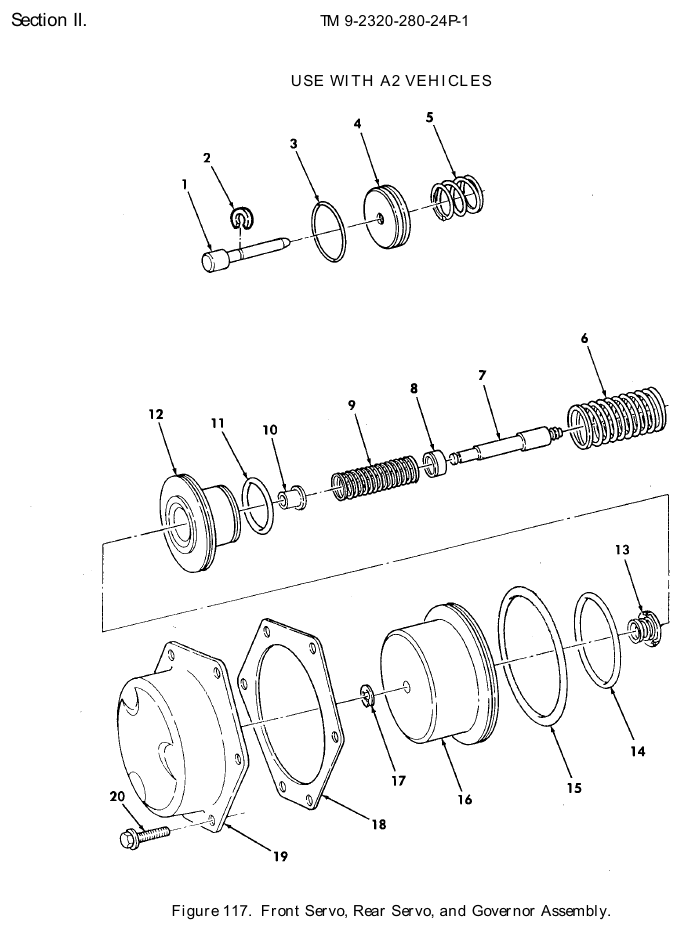

TM 9-2320-280-24P figure 117, Front Servo, Rear Servo, and Governor Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pin P/N 8685473 PIN PART OF KIT P/N 24200418 Fits: All A2 models, plus M1123	1	Ask us
2	Slotted Washer P/N 8685474 WASHER,SLOTTED PART OF KIT P/N 24200418 Fits: All A2 models, plus M1123	1	Ask us
3	Metal Seal Ring NSN 5330-01-163-2614 · P/N 8626423 SEAL RING,METAL PART OF KIT P/N 24204441 PART OF KIT P/N 24200418 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
4	Piston P/N 8685472 PISTON PART OF KIT P/N 24200418 Fits: All A2 models, plus M1123	1	Ask us
5	Helical Compression Spring NSN 5360-01-150-6086 · P/N 8623489 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	20 in stock
6	Helical Compression Spring NSN 5360-01-476-6291 · P/N 8624391 SPRING,HELICAL,COMP 1995,96,97,98 Fits: All A2 models, plus M1123	1	We can source it $50–$85 eachtypical
6	Flat Spring NSN 5360-01-478-6550 · P/N 8655843 SPRING,FLAT 1999,00,01 Fits: All A2 models, plus M1123	1	We can source it
7	Shoulder Headless Pin NSN 5315-01-456-2737 · P/N 24202577 PIN,SHOULDER,HEADLE 3.300-3.306, #1, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
7	Shoulder Headless Pin NSN 5315-01-456-2739 · P/N 24202578 PIN,SHOULDER,HEADLE 3.356-3.362, #3, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $35–$70 eachtypical
7	Shoulder Headless Pin NSN 5315-01-456-6254 · P/N 24202579 PIN,SHOULDER,HEADLE 3.412-3.418, #5, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
7	Shoulder Headless Pin NSN 5315-01-456-2738 · P/N 24202580 PIN,SHOULDER,HEADLE 3.328-3.334, #2, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	7 in stock $35–$70 eachtypical
7	Shoulder Headless Pin NSN 5315-01-456-2740 · P/N 24202581 PIN,SHOULDER,HEADLE 3.384-3.390, #4, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
7	Shoulder Headless Pin NSN 5315-01-456-7882 · P/N 24202582 PIN,SHOULDER,HEADLE 3.440-3.446, #6, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
7	Shoulder Headless Pin NSN 5315-01-456-2743 · P/N 24202583 PIN,SHOULDER,HEADLE 3.468-3.474, #7, 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	3 in stock $25–$45 eachtypical
7	Shoulder Headless Pin NSN 5315-01-152-9038 · P/N 8624139 PIN,SHOULDER,HEADLE 3.300-3.306, #1, 1995 Fits: All A2 models, plus M1123	1	4 in stock $145.67 per eachgov't list price
7	Shoulder Headless Pin NSN 5315-01-152-9039 · P/N 8624140 PIN,SHOULDER,HEADLE 3.356-3.362, #3, 1995 Fits: All A2 models, plus M1123	1	We can source it
7	Shoulder Headless Pin NSN 5315-01-152-9040 · P/N 8624141 PIN,SHOULDER,HEADLE 3.412-3.418, #5, 1995 Fits: All A2 models, plus M1123	1	51 in stock $39.19our price Buy online ↗
7	Shoulder Headless Pin NSN 5315-01-174-8644 · P/N 8627192 PIN,SHOULDER,HEADLE 3.328-3.334, #2, 1995 Fits: All A2 models, plus M1123	1	We can source it $250.88 per eachgov't list price
7	Shoulder Headless Pin NSN 5315-01-174-8645 · P/N 8627193 PIN,SHOULDER,HEADLE 3.384-3.390, #4, 1995 Fits: All A2 models, plus M1123	1	143 in stock $53.89our price Buy online ↗
7	Shoulder Headless Pin NSN 5315-01-174-8646 · P/N 8627194 PIN,SHOULDER,HEADLE 3.440-3.446, #6, 1995 Fits: All A2 models, plus M1123	1	38 in stock
7	Shoulder Headless Pin NSN 5315-01-174-8647 · P/N 8627195 PIN,SHOULDER,HEADLE 3.468-3.474, #7, 1995 Fits: All A2 models, plus M1123	1	108 in stock $25–$45 eachtypical
8	Helical Compression Spring Seat NSN 5340-01-154-6559 · P/N 8623664 SEAT,HELICAL COMPRE Fits: All A2 models, plus M1123	1	We can source it
9	Helical Compression Spring NSN 5360-01-150-7829 · P/N 8623666 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
10	Flat Washer NSN 5310-01-150-5919 · P/N 8623744 WASHER,FLAT 1995 Fits: All A2 models, plus M1123	1	We can source it $204.48 per eachgov't list price
10	Sleeve Spacer NSN 5365-01-456-2742 · P/N 24202986 SPACER,SLEEVE 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it
11	Oil Seal Ring P/N 8678294 RING,OIL SEAL PART OF KIT P/N 8680929 PART OF KIT P/N 24205250 Fits: All A2 models, plus M1123	1	Ask us
12	Linear Piston P/N 8678292 PISTON,LINEAR 1995 PART OF KIT P/N 8680929 Fits: All A2 models, plus M1123	1	Ask us
12	Linear Piston P/N 24202928 PISTON,LINEAR 1996,97,98,99,00,01 PART OF KIT P/N 24205250 Fits: All A2 models, plus M1123	1	Ask us
13	Helical Compression Spring NSN 5360-01-456-2745 · P/N 24202987 SPRING,HELICAL,COMP 1996,97,98,99, 00,01 Fits: All A2 models, plus M1123	1	We can source it $157.15 per eachgov't list price
14	Oil Seal Ring P/N 8661890 RING,OIL SEAL PART OF KIT P/N 8680929 PART OF KIT P/N 24205250 Fits: All A2 models, plus M1123	1	Ask us
15	Gasket NSN 5330-01-150-6239 · P/N 8623430 GASKET PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it
16	Linear Actuating Cylinder Piston NSN 3040-01-151-5663 · P/N 8624138 PISTON,LINEAR ACTUA 1995 Fits: All A2 models, plus M1123	1	2 in stock $50–$95 eachtypical
16	Linear Actuating Cylinder Piston NSN 3040-01-456-7881 · P/N 24202985 PISTON,LINEAR ACTUA 1996,97,98,99, 00,01 Fits: All A2 models, plus M1123	1	We can source it $60–$100 eachtypical
17	Retaining Clip NSN 5340-01-479-2517 · P/N 9413523 CLIP,RETAINING 1995 Fits: All A2 models, plus M1123	1	We can source it
17	Retaining Ring NSN 5325-01-480-7331 · P/N 11514578 CLIP,RETAINING 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it
18	Gasket NSN 5330-01-478-4797 · P/N 8675728 GASKET PART OK KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it
19	Access Cover NSN 5340-01-479-2514 · P/N 8682215 COVER,ACCESS 1995 Fits: All A2 models, plus M1123	1	We can source it $45–$85 eachtypical
19	Access Cover NSN 5340-01-456-2741 · P/N 24202282 COVER,ACCESS 1996,97,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $35–$70 eachtypical
20	Machine Bolt NSN 5306-01-491-9414 · P/N 8676000 BOLT,MACHINE Fits: All A2 models, plus M1123	6	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
