HMMWV Control Valve and Related Parts TM 9-2320-280-24P · Fig. 118

Every part in figure 118 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0714 Servo Assembly: 17 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

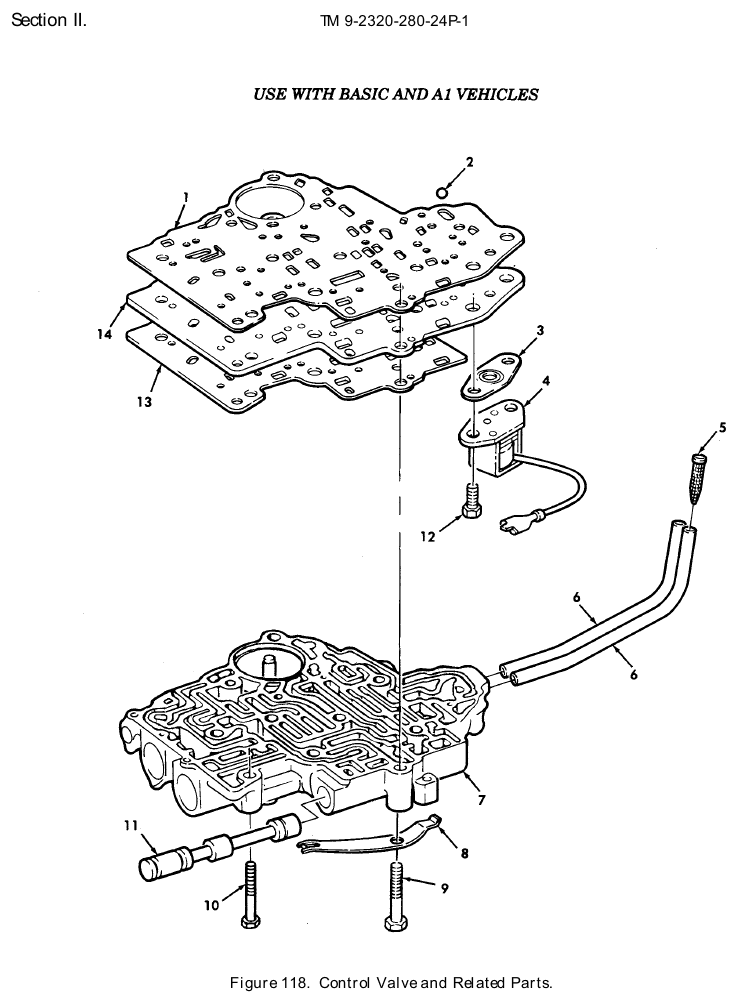

TM 9-2320-280-24P figure 118, Control Valve and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Gasket NSN 5330-01-151-6106 · P/N 8670393 GASKET USE ON YEAR MODEL UP TO 1988 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
1	Gasket NSN 5330-01-331-9995 · P/N 8670458 GASKET USE ON YEAR MODEL 1989 AND ABOVE PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it $208.92 per eachgov't list price
2	Bearing Ball NSN 3110-00-900-2560 · P/N MS19061-20007 BALL,BEARING .25 DIA Fits: All A0 and A1 models, plus M1121	6	We can source it
3	Gasket NSN 5330-01-151-8364 · P/N 8623741 GASKET Fits: All A0 and A1 models, plus M1121	1	We can source it
4	Electrical Solenoid NSN 5945-01-175-7318 · P/N 5572142 SOLENOID,ELECTRICAL Fits: All A0 and A1 models, plus M1121	1	2 in stock
5	Sediment Strainer Element NSN 4730-01-149-7935 · P/N 8627509 STRAINER ELEMENT,SE Fits: All A0 and A1 models, plus M1121	1	We can source it
6	Bent Metallic Tube NSN 4710-01-151-3663 · P/N 8623157 TUBE,BENT,METALLIC Fits: All A0 and A1 models, plus M1121	2	We can source it
7	Transmission Cont Valve Assembly NSN 2520-01-160-9570 · P/N 8655027 VALVE ASSEMBLY,TRAN Fits: All A0 and A1 models, plus M1121	1	113 in stock $550.89our price Buy online ↗
8	Roller and Spring Assembly Deten NSN 2520-01-165-9563 · P/N 8625773 ROLLER AND SPRING A Fits: All A0 and A1 models, plus M1121	1	14 in stock
9	Machine Bolt NSN 5306-01-164-8486 · P/N 108597 BOLT,MACHINE 5/16-18 X 1.875 Fits: All A0 and A1 models, plus M1121	8	We can source it $386.07 per eachgov't list price
10	Machine Bolt NSN 5306-01-150-8713 · P/N 179802 BOLT,MACHINE 1/4-20 X 1.62 Fits: All A0 and A1 models, plus M1121	3	We can source it $70–$115 eachtypical
11	Linear Directional Control Valve NSN 4820-01-150-4964 · P/N 8623592 VALVE,LINEAR,DIRECT Fits: All A0 and A1 models, plus M1121	1	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-068-0501 · P/N MS90725-5 SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All A0 and A1 models, plus M1121	2	288 in stock
13	Gasket NSN 5330-01-152-5942 · P/N 8623561 GASKET USE ON YEAR MODEL UP TO 1988 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
13	Gasket NSN 5330-01-330-9645 · P/N 8670447 GASKET USE ON YEAR MODEL 1989 AND ABOVE PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it $45–$90 eachtypical
14	Spacer Valve Body Plate NSN 2520-01-154-1185 · P/N 8629796 PLATE,SPACER,VALVE USE ON YEAR MODEL UP TO 1988 Fits: All A0 and A1 models, plus M1121	1	110 in stock $25–$60 eachtypical
14	Spacer Valve Plate P/N 8670452 PLATE,SPACER,VALVE USE ON YEAR MODEL 1989 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	Ask us

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
