HMMWV Control Valve and Related Parts TM 9-2320-280-24P · Fig. 119

Every part in figure 119 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0714 Servo Assembly: 37 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

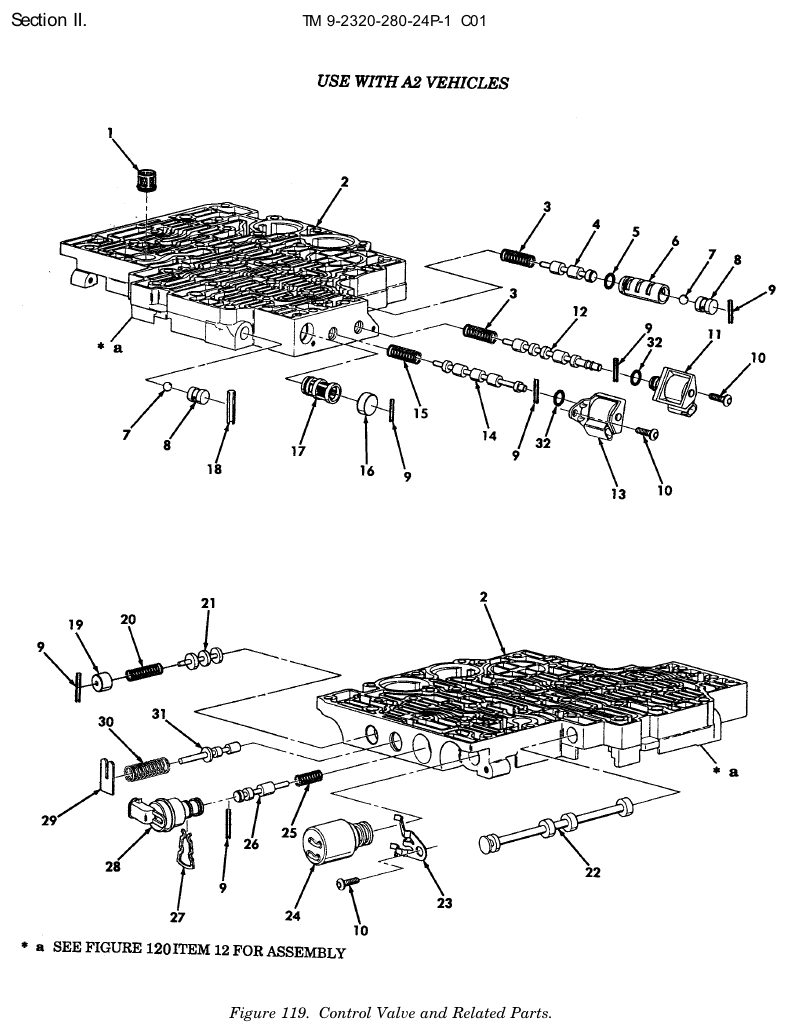

TM 9-2320-280-24P figure 119, Control Valve and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Filter Element P/N 8684218 FILTER ELEMENT,FLUI PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 PART OF KIT P/N 24210954 PART OF KIT P/N 24210955 Fits: All A2 models, plus M1123	1	Ask us
2	Control Valve Body P/N 24201386 BODY,CONTROL VALVE 1995 Fits: All A2 models, plus M1123	1	Ask us
2	Control Valve Body P/N 24202957 BODY,CONTROL VALVE 1996 Fits: All A2 models, plus M1123	1	Ask us
2	Control Valve Body P/N 24204266 BODY,CONTROL VALVE 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	Ask us
3	Helical Compression Spring NSN 5360-01-460-9069 · P/N 8661891 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	2	We can source it $25–$40 eachtypical
4	3-4 Shift Valve P/N 8661801 VALVE,3-4 SHIFT Fits: All A2 models, plus M1123	1	Ask us
5	Preformed Packing NSN 5330-01-456-7886 · P/N 24201388 PACKING,PREFORMED Fits: All A2 models, plus M1123	1	We can source it
6	Bushing P/N 24201390 BUSHING Fits: All A2 models, plus M1123	1	Ask us
7	Check Ball P/N 147500 BALL,CHECK 1999,00,01 Fits: All A2 models, plus M1123	2	Ask us
7	Check Ball P/N 104918 BALL,CHECK 1995,96,97,98 Fits: All A2 models, plus M1123	2	Ask us
8	Plug P/N 24201389 PLUG Fits: All A2 models, plus M1123	2	Ask us
9	Pin P/N 8675535 PIN Fits: All A2 models, plus M1123	6	Ask us
10	Bolt NSN 5306-01-474-8959 · P/N 11513697 BOLT,INTERNAL WRENC Fits: All A2 models, plus M1123	3	We can source it
11	Electrical Coil NSN 2920-01-397-7094 · P/N 10478133 COIL,ELECTRICAL 2-3 SHIFT 1995,96 Fits: All A2 models, plus M1123	1	We can source it
11	Electrical Coil NSN 5950-01-480-5377 · P/N 10478148 COIL,ELECTRICAL 2-3 SHIFT 1997,98, 99,00,01 Fits: All A2 models, plus M1123	1	4 in stock $30–$70 eachtypical
12	Shift Valve P/N 8661804 VALVE,SHIFT Fits: All A2 models, plus M1123	1	Ask us
13	Electrical Coil NSN 5950-01-480-5380 · P/N 10478147 COIL,ELECTRICAL 1-2 SHIFT Fits: All A2 models, plus M1123	1	1 in stock $30–$65 eachtypical
14	Valve P/N 8661805 VALVE Fits: All A2 models, plus M1123	1	Ask us
15	Spring P/N 8661873 SPRING Fits: All A2 models, plus M1123	1	Ask us
16	Plug P/N 8661821 PLUG Fits: All A2 models, plus M1123	1	Ask us
17	Fluid Filter Element NSN 4330-01-411-2786 · P/N 8661709 FILTER ELEMENT,FLUI Fits: All A2 models, plus M1123	1	1 in stock
18	Sleeve P/N 8661867 SLEEVE Fits: All A2 models, plus M1123	1	Ask us
19	Plug P/N 8661822 PLUG Fits: All A2 models, plus M1123	1	Ask us
20	Spring P/N 8676074 SPRING Fits: All A2 models, plus M1123	1	Ask us
21	Valve P/N 8661807 VALVE 1995 Fits: All A2 models, plus M1123	1	Ask us
21	Valve P/N 24202959 VALVE 1996,97,98 Fits: All A2 models, plus M1123	1	Ask us
22	Directional Control Linear Slide NSN 4820-01-409-1218 · P/N 8678337 SLIDE,DIRECTIONAL C Fits: All A2 models, plus M1123	1	We can source it $30–$55 eachtypical
23	Spring Tension Clip NSN 5340-01-460-8362 · P/N 8684217 CLIP,SPRING TENSION Fits: All A2 models, plus M1123	1	We can source it
24	Electrical Solenoid NSN 5945-01-478-7862 · P/N 24209276 SOLENOID Fits: All A2 models, plus M1123	1	We can source it $70–$120 eachtypical
25	Spring P/N 8661871 SPRING Fits: All A2 models, plus M1123	1	Ask us
26	Valve P/N 8681899 VALVE Fits: All A2 models, plus M1123	1	Ask us
27	Spring Tension Clip NSN 5340-01-460-8364 · P/N 8678523 CLIP,SPRING TENSION Fits: All A2 models, plus M1123	1	We can source it
28	Electrical Coil NSN 5950-01-399-0257 · P/N 8683188 COIL,ELECTRICAL Fits: All A2 models, plus M1123	1	We can source it
29	Spring Tension Clip NSN 5340-01-460-8363 · P/N 8684215 CLIP,SPRING TENSION Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
30	Spring P/N 8684214 SPRING Fits: All A2 models, plus M1123	1	Ask us
31	Valve P/N 8684213 VALVE Fits: All A2 models, plus M1123	1	Ask us
32	Seal P/N 14083630 SEAL 1-2 AND 2-3 SHIFT COILS Fits: All A2 models, plus M1123	2	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
