HMMWV Control Valve, Accumulator, and Related Parts TM 9-2320-280-24P · Fig. 120

Every part in figure 120 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0714 Servo Assembly: 34 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

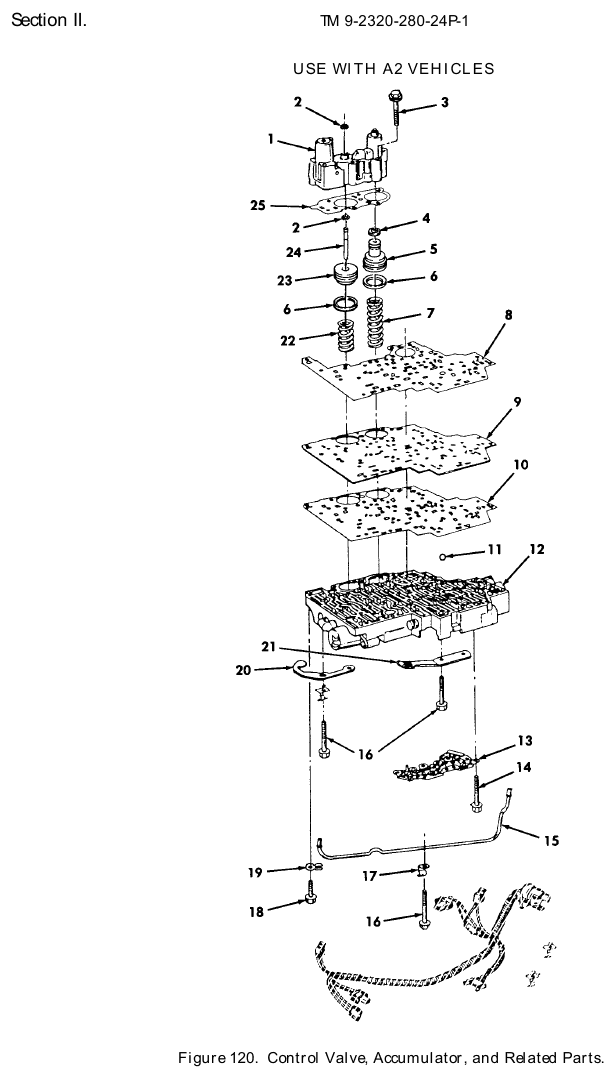

TM 9-2320-280-24P figure 120, Control Valve, Accumulator, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Transmission Mechan Housing Part NSN 2520-01-409-2509 · P/N 8684220 HOUSING PART,TRANSM Fits: All A2 models, plus M1123	1	We can source it $45–$85 eachtypical
2	Retaining Ring NSN 5325-01-408-7973 · P/N 9413349 RING,RETAINING PART OF KIT P/N 24206749 Fits: All A2 models, plus M1123	2	We can source it
3	Machine Bolt NSN 5306-01-469-9903 · P/N 8675533 BOLT,MACHINE Fits: All A2 models, plus M1123	6	4,400 in stock $25–$40 eachtypical
4	Preformed Packing NSN 5330-01-470-6543 · P/N 8661639 PACKING,PREFORMED PART OF KIT P/N 24206749 Fits: All A2 models, plus M1123	1	We can source it
5	Clutch Shaft Assembly Piston NSN 2520-01-444-2711 · P/N 8683088 PISTON,CLUTCH SHAFT Fits: All A2 models, plus M1123	1	We can source it
6	Preformed Packing P/N 8661647 PACKING,PREFORMED PART OF KIT P/N 24206749 Fits: All A2 models, plus M1123	2	Ask us
7	Helical Compression Spring NSN 5360-01-476-2692 · P/N 24200436 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
8	Gasket P/N 8684205 GASKET 1995,96 PART OF KIT P/N 24202111 PART OF KIT P/N 24204441 PART OF KIT P/N 24205251 Fits: All A2 models, plus M1123	1	Ask us
8	Gasket NSN 5330-01-473-8584 · P/N 24204268 GASKET 1997,98,99,00,01 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	We can source it
9	CV Plate NSN 2520-01-481-7690 · P/N 24200732 PLATE,CV 1995 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
9	Plate NSN 2520-01-456-7888 · P/N 24202963 PLATE 1996 Fits: All A2 models, plus M1123	1	216 in stock $25–$55 eachtypical
9	Intermediate Friction Clut Plate NSN 2520-01-475-9665 · P/N 24204270 PLATE,INTERMEDIATE, 1997,98 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
9	Intermediate Friction Clut Plate NSN 2520-01-480-7568 · P/N 24211719 PLATE,INTERMEDIATE, 1999,00,01 Fits: All A2 models, plus M1123	1	We can source it
10	Gasket NSN 5330-01-456-2744 · P/N 24201115 GASKET 1995,96 PART OF KIT P/N 24202111,PART OF KIT P/N 24204441 Fits: All A2 models, plus M1123	1	We can source it
10	Gasket NSN 5330-01-478-5993 · P/N 24204253 GASKET 1997,98,99,00,01 PART OF KIT P/N 24210954 PART OF KIT P/N 24210955 Fits: All A2 models, plus M1123	1	We can source it
11	Bearing Ball NSN 3110-00-900-2560 · P/N MS19061-20007 BALL,BEARING .25 Fits: All A2 models, plus M1123	8	We can source it
12	Valve Assembly P/N 24201381 VALVE ASSEMBLY 1995 Fits: All A2 models, plus M1123	1	Ask us
12	Tran Valve Assembly NSN 2520-01-459-8532 · P/N 24202943 VALVE ASSEMBLY,TRAN 1996 Fits: All A2 models, plus M1123	1	We can source it $428.00 per eachgov't list price
12	Tran Valve Assembly NSN 2520-01-488-7016 · P/N 24209112 VALVE ASSEMBLY,TRAN 1997,98,99,00, 01 Fits: All A2 models, plus M1123	1	32 in stock $543.90our price Buy online ↗
13	Pressure Switch NSN 5930-01-456-7880 · P/N 24200695 SWITCH,PRESSURE Fits: All A2 models, plus M1123	1	2 in stock $50–$95 eachtypical
14	Machine Bolt NSN 5306-01-476-3501 · P/N 8676222 BOLT,MACHINE 6 X 1MM Fits: All A2 models, plus M1123	6	We can source it $25–$40 eachtypical
15	Bent Metallic Tube NSN 4710-01-477-9034 · P/N 8678342 TUBE,BENT,METALLIC 1995,96 Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
15	Bent Metallic Tube NSN 4710-01-477-9032 · P/N 24204275 TUBE,BENT,METALLIC 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
16	Machine Bolt NSN 5306-01-476-3500 · P/N 11515262 BOLT,MACHINE 6 X 1 X 55MM Fits: All A2 models, plus M1123	21	We can source it
17	Retaining Strap P/N 8675537 STRAP,RETAINING 1995,96 Fits: All A2 models, plus M1123	1	Ask us
17	Retaining Clip NSN 5340-01-491-7497 · P/N 24204276 CLIP,RETAINING 1997,98,99,00,01 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
18	Machine Bolt NSN 5306-01-474-6117 · P/N 11503870 BOLT,MACHINE 1995,96 Fits: All A2 models, plus M1123	1	We can source it
19	Retaining Clip NSN 5340-01-478-9995 · P/N 8675538 CLIP,RETAINING 1995,96 Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
20	Oil Dipstick Stop NSN 2520-01-456-6256 · P/N 24201116 STOP,OIL DIPSTICK 1995,96 Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
21	Spring Tension Clip NSN 5340-01-474-4002 · P/N 8676418 CLIP,SPRING TENSION Fits: All A2 models, plus M1123	1	We can source it
22	Helical Compression Spring NSN 5360-01-469-8077 · P/N 8675634 SPRING,HELICAL,COMP Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
23	Piston P/N 24206025 PISTON PART OF KIT P/N 24206749 Fits: All A2 models, plus M1123	1	Ask us
24	Straight Pin P/N 24206024 PIN,STRAIGHT,HEADLE PART OF KIT P/N 24206749 Fits: All A2 models, plus M1123	1	Ask us
25	Gasket P/N 8661829 GASKET PART OF KIT P/N 24205251,PART OF KIT P/N 24202111,PART OF KIT P/N 24204441 PART OF KIT P/N 24210955 PART OF KIT P/N 24210954 Fits: All A2 models, plus M1123	1	Ask us

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
