HMMWV Transmission Oil Pump TM 9-2320-280-24P · Fig. 121

Every part in figure 121 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0721 Coolers, Pumps, Motors: 28 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

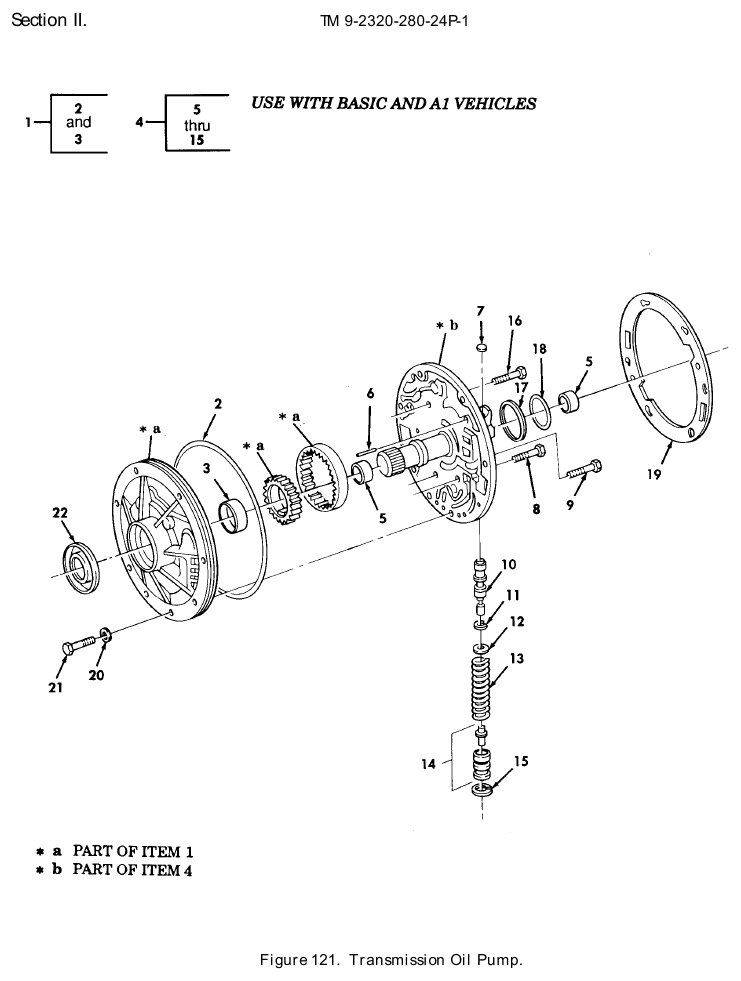

TM 9-2320-280-24P figure 121, Transmission Oil Pump: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Liquid Pump Housing NSN 4320-01-149-1866 · P/N 8679988 HOUSING,LIQUID PUMP Fits: All A0 and A1 models, plus M1121	1	5 in stock $414.49 per eachgov't list price
2	Plain Encased Seal NSN 5330-01-324-0906 · P/N 8654716 SEAL,PLAIN ENCASED PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
3	Bushing NSN 5365-01-085-0910 · P/N 8629961 BUSHING Fits: All A0 and A1 models, plus M1121	1	10 in stock $35–$70 eachtypical
4	Access Cover NSN 5340-01-149-1867 · P/N 8625955 COVER,ACCESS Fits: All A0 and A1 models, plus M1121	1	We can source it $418.64 per eachgov't list price
5	Sleeve Bearing NSN 3120-01-156-5189 · P/N 8623944 BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	2	23 in stock $25–$50 eachtypical
6	Pin NSN 5315-00-038-3059 · P/N 8623078 PIN Fits: All A0 and A1 models, plus M1121	1	We can source it $70–$120 eachtypical
7	Solid Plain Disk NSN 5340-01-159-1788 · P/N 8623292 DISK,SOLID,PLAIN Fits: All A0 and A1 models, plus M1121	1	We can source it
8	Machine Bolt NSN 5306-00-226-4832 · P/N B1821BH031C175N BOLT,MACHINE 5/16-18 X 1.75 Fits: All A0 and A1 models, plus M1121	1	64 in stock
9	Cap Hexagon Head Screw NSN 5305-00-226-4831 · P/N B1821BH031C150N SCREW,CAP,HEXAGON H 5/16-18 X 1.50 Fits: All A0 and A1 models, plus M1121	2	221 in stock
10	Directional Control Linear Slide NSN 4820-01-212-6763 · P/N 8639718 SLIDE,DIRECTIONAL C Fits: All A0 and A1 models, plus M1121	1	We can source it $111.56 per eachgov't list price
11	Split Washer NSN 5310-01-149-7793 · P/N 8623368 WASHER,SPLIT Fits: All A0 and A1 models, plus M1121	1	We can source it
12	Key Washer NSN 5310-01-152-4229 · P/N 8623039 WASHER,KEY Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$45 eachtypical
13	Helical Compression Spring NSN 5360-01-209-7715 · P/N 8623090 SPRING,HELICAL,COMP Fits: All A0 and A1 models, plus M1121	1	We can source it $25–$40 eachtypical
14	Seat NSN 5340-01-209-7830 · P/N 8623915 SEAT,HELICAL COMPRE Fits: All A0 and A1 models, plus M1121	1	We can source it
15	Retaining Ring NSN 5325-00-349-8518 · P/N 274613 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	We can source it
16	Cap Hexagon Head Screw NSN 5305-01-122-0253 · P/N 179818 SCREW,CAP,HEXAGON H 5/16-18 X 1.00 Fits: All A0 and A1 models, plus M1121	2	We can source it
17	Washer Thrust Bearing NSN 3120-01-155-4462 · P/N 8623300 BEARING,WASHER,THRU .060-.064 Fits: All A0 and A1 models, plus M1121	V	We can source it $25–$40 eachtypical
17	Washer Thrust Bearing NSN 3120-01-155-4463 · P/N 8623301 BEARING,WASHER,THRU .071-.075 Fits: All A0 and A1 models, plus M1121	V	50 in stock $25–$45 eachtypical
17	Washer Thrust Bearing NSN 3120-01-182-8417 · P/N 8623302 BEARING,WASHER,THRU .082-.086 Fits: All A0 and A1 models, plus M1121	V	We can source it $25–$40 eachtypical
17	Washer Thrust Bearing NSN 3120-01-155-4464 · P/N 8623303 BEARING,WASHER,THRU .093-.097 Fits: All A0 and A1 models, plus M1121	V	We can source it
17	Washer Thrust Bearing NSN 3120-01-155-4465 · P/N 8623304 BEARING,WASHER,THRU .104-.108 Fits: All A0 and A1 models, plus M1121	V	50 in stock
17	Washer Thrust Bearing NSN 3120-01-155-4466 · P/N 8623305 BEARING,WASHER,THRU .113-.119 Fits: All A0 and A1 models, plus M1121	V	We can source it $25–$40 eachtypical
17	Washer Thrust Bearing NSN 3120-01-155-4467 · P/N 8623306 BEARING,WASHER,THRU .126-.130 Fits: All A0 and A1 models, plus M1121	V	7 in stock
18	Packing Retainer NSN 5330-01-165-4333 · P/N 8626356 RETAINER,PACKING PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	2	We can source it
19	Gasket NSN 5330-01-152-5941 · P/N 8623978 GASKET PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	We can source it
20	Flat Washer NSN 5310-01-150-5921 · P/N 8626281 WASHER,FLAT 5/16 Fits: All A0 and A1 models, plus M1121	6	4 in stock
21	Machine Bolt NSN 5306-01-269-4319 · P/N 8655280 BOLT,MACHINE 5/16 X 1.406 PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	6	We can source it
22	Plain Encased Seal NSN 5330-01-025-4212 · P/N 8626916 SEAL,PLAIN ENCASED PART OF KIT P/N 24204440 Fits: All A0 and A1 models, plus M1121	1	22 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
