HMMWV Transfer Oil Cooler Assembly TM 9-2320-280-24P · Fig. 131

Every part in figure 131 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0801 Power Transfer, Final Drive, Planetary or Drop Gear Box: 5 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

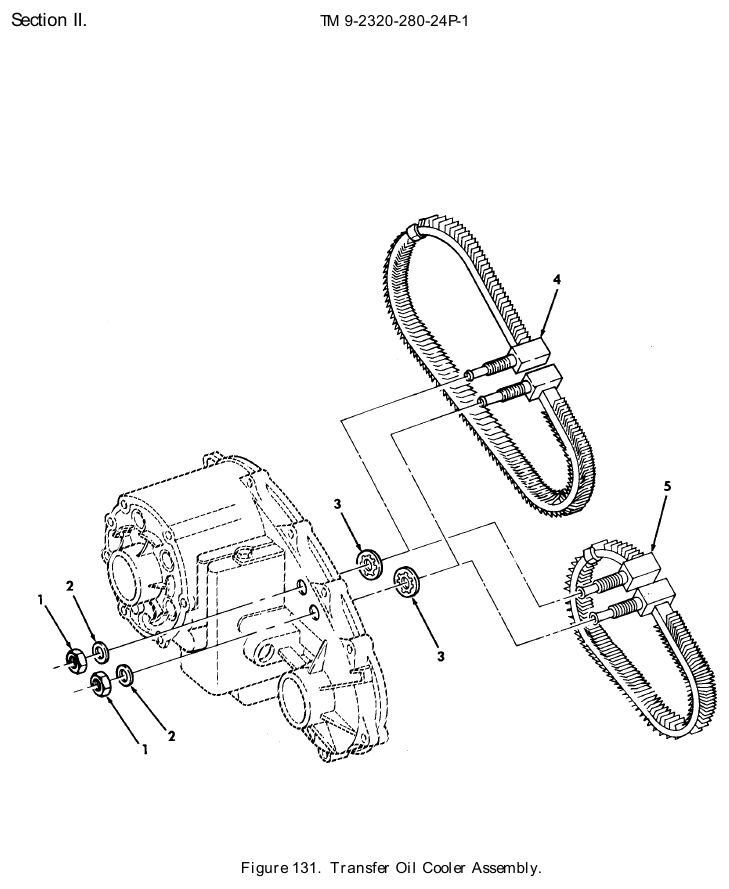

TM 9-2320-280-24P figure 131, Transfer Oil Cooler Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nut NSN 5310-01-135-4730 · P/N 9442899 NUT 1/2-20 Fits: All models	2	We can source it
2	Flat Washer NSN 5310-00-471-9243 · P/N 6023054 WASHER,FLAT 1/2 Fits: All models	2	We can source it
3	O-Ring NSN 5331-01-209-7726 · P/N 5741062 O-RING Fits: All models	2	We can source it
4	Core Cooler NSN 2520-01-203-9871 · P/N 5741063 COOLER,CORE USE WITH P/N 12340073-1 Fits: All A0 models except M1097, plus M1121	1	1,660 in stock
5	Fluid Transmission Cooler NSN 2520-01-358-7698 · P/N 17378 COOLER,FLUID,TRANSM USE WITH T-CASE P/N 5937387,12447125,12342643-1 Fits: All models	1	27 in stock $599.00our price Buy online ↗

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
