HMMWV Transfer Shift Mechanisms TM 9-2320-280-24P · Fig. 132

Every part in figure 132 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0801 Power Transfer, Final Drive, Planetary or Drop Gear Box: 30 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

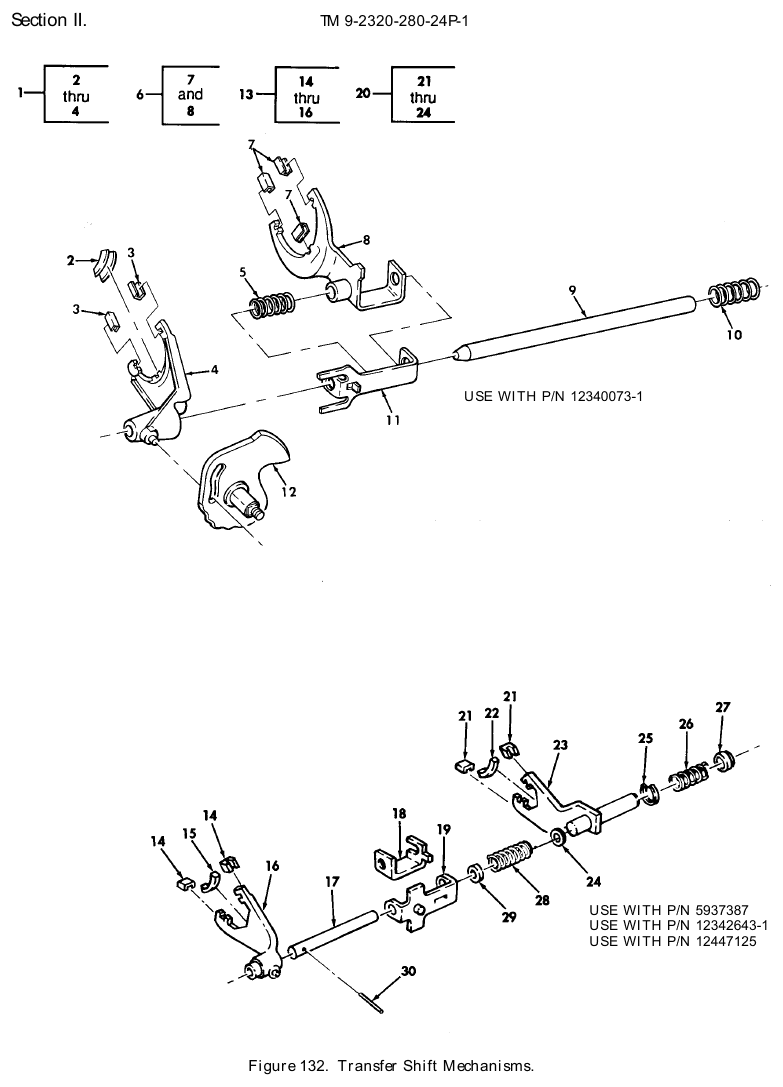

TM 9-2320-280-24P figure 132, Transfer Shift Mechanisms: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Shifter Fork NSN 2520-01-175-6494 · P/N 5740227 SHIFTER FORK,VEHICU TRANSFER SHIFT Fits: All A0 models except M1097, plus M1121	1	122 in stock $103.88 per eachgov't list price
2	Fork Pad NSN 2590-01-159-8757 · P/N 5740223 PAD,FORK Fits: All A0 models except M1097, plus M1121	1	61 in stock
3	Fork Transfer Pad NSN 2520-01-162-8985 · P/N 5740114 PAD,FORK,TRANSFER Fits: All A0 models except M1097, plus M1121	2	10 in stock
4	Shifter Fork Transfer Shift P/N 5740226 SHIFTER FORK TRANSFER SHIFT Fits: All A0 models except M1097, plus M1121	1	Ask us
5	Helical Compression Spring NSN 5360-01-174-8613 · P/N 5740115 SPRING,HELICAL,COMP TRANSFER Fits: All A0 models except M1097, plus M1121	1	12 in stock $230.16 per eachgov't list price
6	Vehicular Shifter Fork NSN 2520-01-204-0325 · P/N 5741060 SHIFTER FORK,VEHICU TRANSFER Fits: All A0 models except M1097, plus M1121	1	14 in stock $143.62 per eachgov't list price
7	Fork Transfer Pad NSN 2520-01-162-8985 · P/N 5740114 PAD,FORK,TRANSFER TRANSFER SHIFT Fits: All A0 models except M1097, plus M1121	3	10 in stock
8	Shifter Fork Front Mode P/N 5740116 SHIFTER FORK FRONT MODE Fits: All A0 models except M1097, plus M1121	1	Ask us
9	Straight Shaft NSN 3040-01-176-2835 · P/N 5740220 SHAFT,STRAIGHT Fits: All A0 models except M1097, plus M1121	1	15 in stock
10	Helical Compression Spring NSN 5360-01-174-8614 · P/N 5740126 SPRING,HELICAL,COMP MODE SHIFT TRANSFER Fits: All A0 models except M1097, plus M1121	1	We can source it
11	Bracket Support NSN 2520-01-174-5919 · P/N 5740125 BRACKET SUPPORT MODULATOR SHIFT Fits: All A0 models except M1097, plus M1121	1	35 in stock $30–$65 eachtypical
12	Range Sector and Shaft Assembly NSN 2520-01-176-2840 · P/N 5740221 RANGE SECTOR AND SH SHAFT AND PIN Fits: All A0 models except M1097, plus M1121	1	17 in stock $75–$130 eachtypical
13	Vehicular Shifter Fork NSN 2520-01-358-8701 · P/N 16472 SHIFTER FORK Fits: All models	1	We can source it $123.84 per eachgov't list price
14	Fork Transfer Pad NSN 2520-01-162-8985 · P/N 5740114 PAD,FORK,TRANSFER Fits: All models	2	10 in stock
15	Fork Pad NSN 2590-01-159-8757 · P/N 5740223 PAD,FORK CENTER Fits: All models	1	61 in stock
16	Fork P/N 16473 FORK Fits: All models	1	Ask us
17	Straight Shaft NSN 3040-01-358-8596 · P/N 16449 SHAFT,STRAIGHT Fits: All models	1	74 in stock $30–$55 eachtypical
18	Vehicular Components Bracket NSN 2590-01-358-7643 · P/N 16310 BRACKET,VEHICULAR C Fits: All models	1	We can source it
19	Vehicular Components Bracket NSN 2590-01-358-7644 · P/N 16474 BRACKET,VEHICULAR C Fits: All models	1	We can source it $25–$50 eachtypical
20	Vehicular Shifter Fork NSN 2520-01-358-8700 · P/N 17586 SHIFTER FORK Fits: All models	1	4 in stock $90–$150 eachtypical
21	Fork Transfer Pad NSN 2520-01-162-8985 · P/N 5740114 PAD,FORK,TRANSFER Fits: All models	2	10 in stock
22	Fork Transmission Pad NSN 2520-01-358-8883 · P/N 15556 PAD,FORK,TRANSMISSI CENTER Fits: All models	1	We can source it
23	Fork and Sleeve P/N 17562 FORK AND SLEEVE Fits: All models	1	Ask us
24	Ring Spacer NSN 5365-01-358-4642 · P/N 15624 SPACER,RING Fits: All models	2	590 in stock
25	Spring Tension Washer NSN 5310-01-358-7978 · P/N 16456 WASHER,SPRING TENSI Fits: All models	1	95 in stock
26	Helical Compression Spring NSN 5360-01-358-6564 · P/N 5938633 SPRING,HELICAL,COMP Fits: All models	1	We can source it $25–$60 eachtypical
27	Sleeve Bushing NSN 3120-01-359-6764 · P/N 16457 BUSHING,SLEEVE Fits: All models	1	We can source it
28	Helical Compression Spring NSN 5360-01-358-5420 · P/N 17564 SPRING,HELICAL,COMP Fits: All models	1	We can source it
29	Spring Holder NSN 5340-01-358-7940 · P/N 16447 HOLDER,SPRING Fits: All models	1	We can source it
30	Straight Headless Pin NSN 5315-00-576-0265 · P/N 91386 PIN,STRAIGHT,HEADLE Fits: All models	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
