HMMWV Transfer Shift Controls TM 9-2320-280-24P · Fig. 133

Every part in figure 133 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0803 Gear Shift, Vacuum Booster and Controls: 14 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

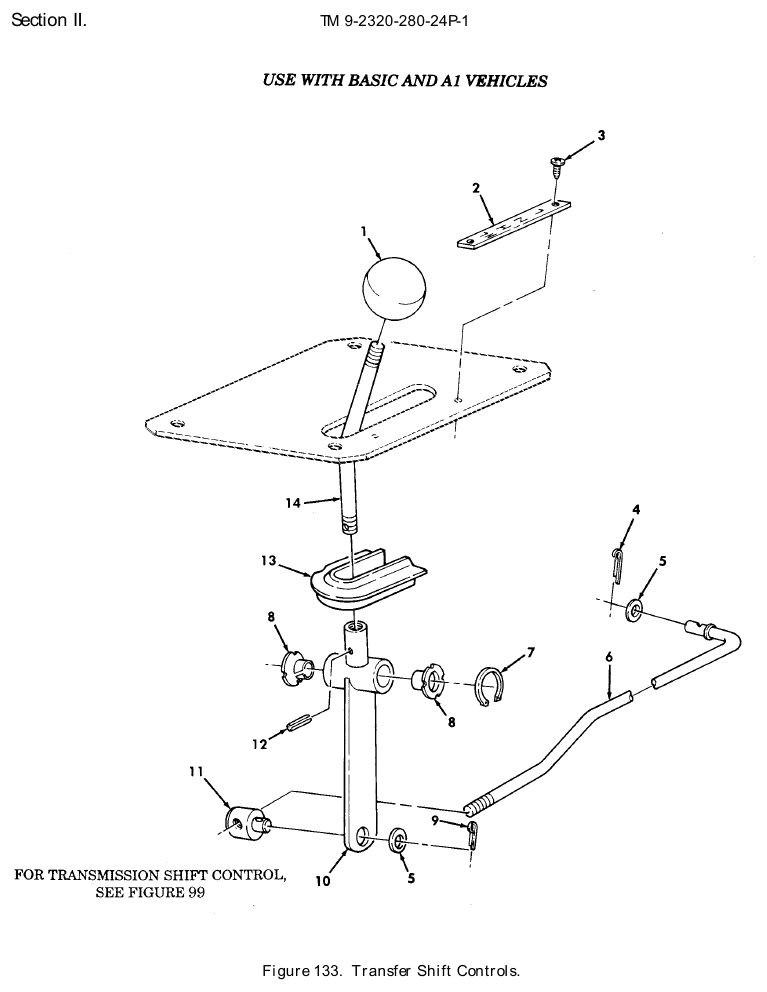

TM 9-2320-280-24P figure 133, Transfer Shift Controls: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Knob NSN 5355-01-196-2770 · P/N 230-7/16-14 KNOB Fits: All A0 and A1 models, plus M1121	1	16 in stock
2	Designation Plate NSN 9905-01-207-6304 · P/N 12338433 PLATE,DESIGNATION Fits: All A0 and A1 models, plus M1121	1	43 in stock $21.51our price Buy online ↗
3	Tapping Screw NSN 5305-01-250-6588 · P/N 5592952 SCREW,TAPPING,THREA #4-24 X 1/4 Fits: All A0 and A1 models, plus M1121	2	We can source it
4	Cotter Pin NSN 5315-01-191-2611 · P/N 103384 PIN,COTTER 1/8 X 3/4 Fits: All A0 and A1 models, plus M1121	1	We can source it
5	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	2	We can source it
6	Threaded End Rod NSN 5306-01-201-7969 · P/N 12338460 ROD,THREADED END Fits: All A0 and A1 models, plus M1121	1	We can source it $367.48 per eachgov't list price
7	Retaining Ring NSN 5325-00-803-7305 · P/N MS16624-1062 RING,RETAINING Fits: All A0 and A1 models, plus M1121	1	198 in stock
8	Sleeve Bearing NSN 3120-01-191-3232 · P/N 10L18F BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	2	We can source it
9	Cotter Pin NSN 5315-00-842-3044 · P/N X601 PIN,COTTER 3/32 X 3/4 Fits: All A0 and A1 models, plus M1121	1	3,000 in stock
10	Remote Control Lever NSN 2520-01-189-6726 · P/N 12338448 LEVER,REMOTE CONTRO Fits: All A0 and A1 models, plus M1121	1	3 in stock $25–$55 eachtypical
11	Body Hub NSN 3040-01-185-4388 · P/N 5577813 HUB,BODY Fits: All A0 and A1 models, plus M1121	1	10 in stock
12	Spring Pin NSN 5315-00-616-4261 · P/N MS16562-28 PIN,SPRING 3/32 X 3/4 Fits: All A0 and A1 models, plus M1121	1	2,500 in stock
13	Sleeve Bearing NSN 3120-01-251-0735 · P/N 12340565 BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	1	We can source it
14	Manual Control Lever NSN 3040-01-189-2172 · P/N 12338459 LEVER,MANUAL CONTRO TRANSFER SHIFT Fits: All A0 and A1 models, plus M1121	1	4 in stock $30–$65 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
