HMMWV Transfer Shift Controls TM 9-2320-280-24P · Fig. 134

Every part in figure 134 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0803 Gear Shift, Vacuum Booster and Controls: 4 lines, 1 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

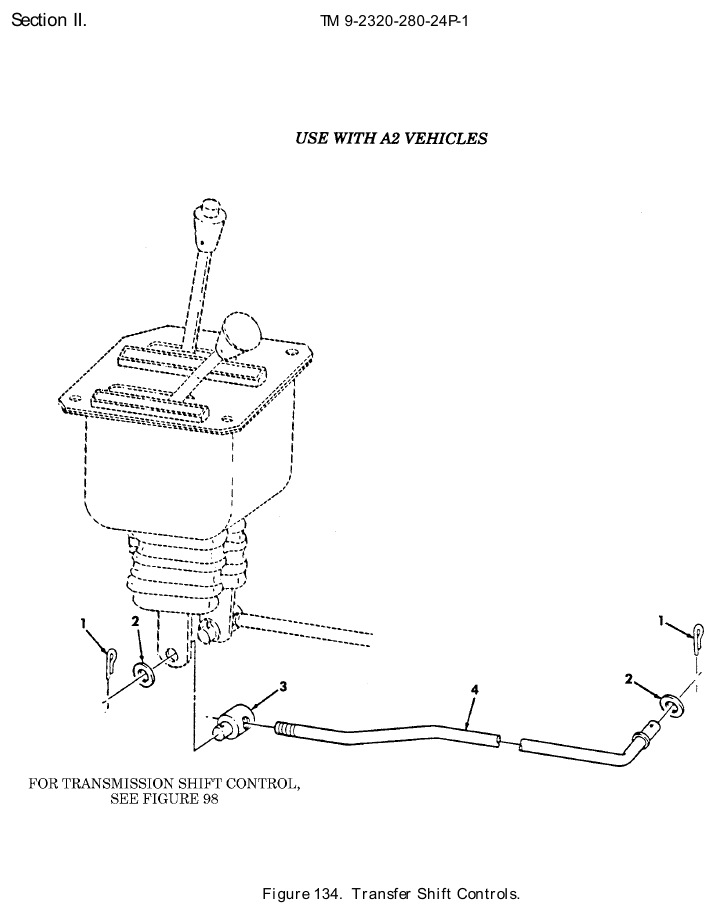

TM 9-2320-280-24P figure 134, Transfer Shift Controls: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.
