HMMWV Transfer Case Vent Lines and Related Parts TM 9-2320-280-24P · Fig. 135

Every part in figure 135 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0804 Lubrication, Cooling or Hydraulic Components and Servo Units: 8 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

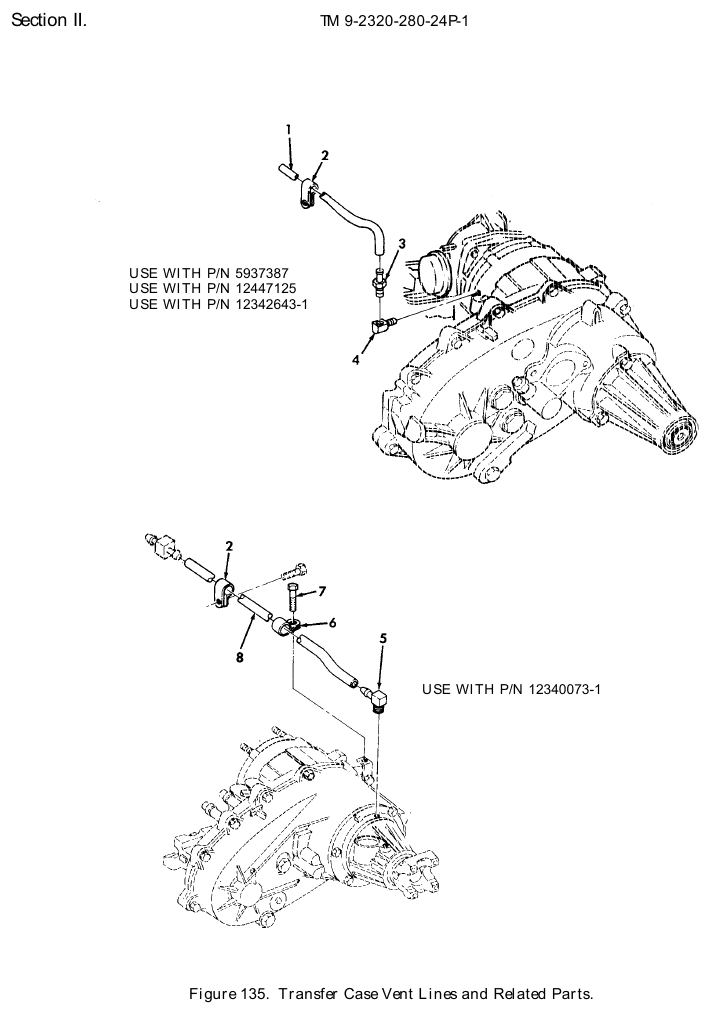

TM 9-2320-280-24P figure 135, Transfer Case Vent Lines and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Make From Tube Tubing P/N CPR104420-1-17 TUBING,NONMETALLIC MAKE FROM TUBE, P/N CPR104420-1, 17 INCHES LONG Fits: All models	1	Ask us
2	Loop Clamp NSN 5340-00-067-3868 · P/N MS21333-109 CLAMP,LOOP Fits: All models	1	46 in stock
3	Straight Pipe to Hose Adapter NSN 4730-01-185-5348 · P/N 1068X4 ADAPTER,STRAIGHT,PI TRANSFER CASE Fits: All models	1	25 in stock
4	Pipe Elbow NSN 4730-01-209-0845 · P/N 4-4 130239C(CAD) ELBOW,PIPE Fits: All models	1	We can source it
5	Pipe to Hose Elbow NSN 4730-01-485-0065 · P/N 12339964-3 ELBOW,PIPE TO HOSE Fits: All A0 models except M1097, plus M1121	1	1 in stock
6	Loop Clamp NSN 5340-00-050-9077 · P/N MS21333-119 CLAMP,LOOP Fits: All A0 models except M1097, plus M1121	1	We can source it
7	Tapping Screw NSN 5305-01-393-6311 · P/N 271153 SCREW,TAPPING 3/8-16 X 1/2 Fits: All A0 models except M1097, plus M1121	1	We can source it
8	Tube Make From Tube P/N 5582645 TUBE MAKE FROM TUBE, P/N CPR104420- 1, 24 INCHES LONG Fits: All A0 models except M1097, plus M1121	1	Ask us
