HMMWV Front Propeller Shaft Assemblies TM 9-2320-280-24P · Fig. 136

Every part in figure 136 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 09 Propeller Shafts: 38 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

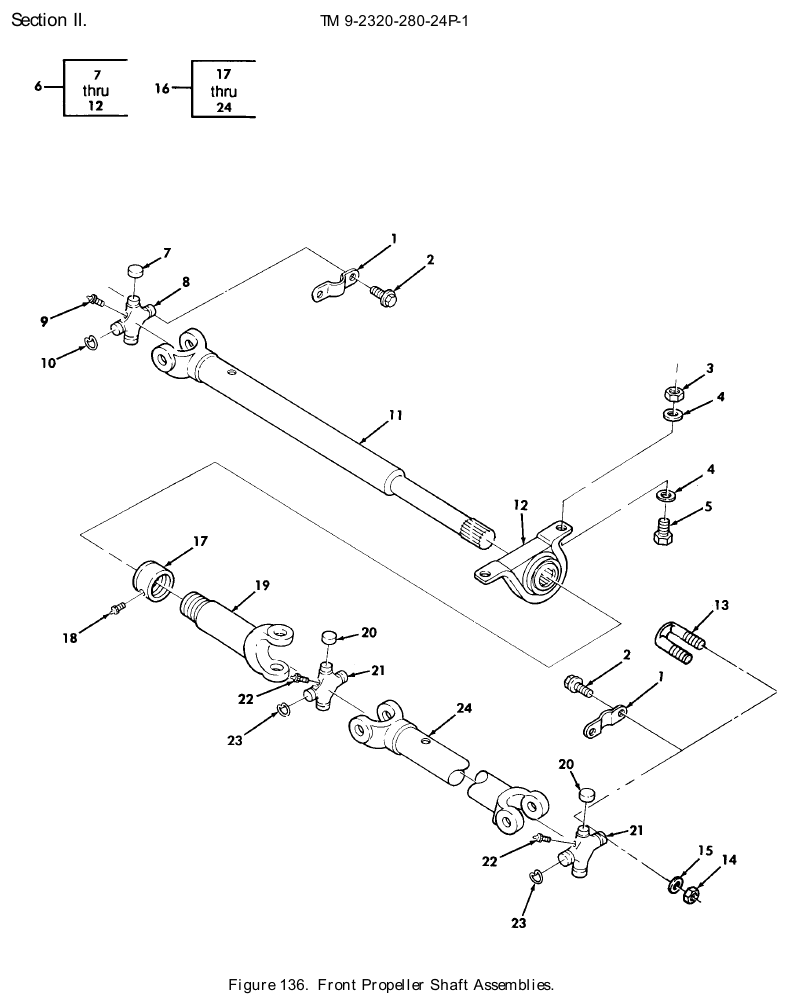

TM 9-2320-280-24P figure 136, Front Propeller Shaft Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Retaining Strap NSN 5340-01-190-0807 · P/N 2-70-59 STRAP,RETAINING USE WITH T-CASE P/N 12340073-1 Fits: All A0 models except M1097, plus M1121	4	39 in stock
1	Retaining Strap NSN 5340-01-190-0807 · P/N 2-70-59 STRAP,RETAINING USE WITH T-CASE P/N 5937387,12342643-1 AND 12447125 Fits: All models	2	39 in stock
2	Machine Bolt NSN 5306-01-190-5760 · P/N 231401 BOLT,SELF-LOCKING 1/4 28 X .62,USE WITH T-CASE P/N 12340073-1, Fits: All A0 models except M1097, plus M1121	8	36 in stock
2	Machine Bolt NSN 5306-01-190-5760 · P/N 231401 BOLT,SELF-LOCKING 1/4 28 X .62,USE WITH T-CASE P/N 5937387,12342643-1, AND 12447125 Fits: All models	4	36 in stock
3	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,PLAIN,HEXAGON 7/16-14 Fits: All models	2	251 in stock
4	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT CARRIER BEARING,7/16 Fits: All models	4	170 in stock
5	Cap Hexagon Head Screw NSN 5305-00-071-1786 · P/N B1821BH044C100N SCREW,CAP,HEXAGON H 7/16-14 X 1.00 Fits: All models	2	500 in stock
6	Vehicular Propeller Shaft NSN 2520-01-356-9189 · P/N 12342620 PROPELLER SHAFT,VEH Fits: All A1 models, plus M1097	1	9 in stock $368.47our price Buy online ↗
6	Propeller Shaft with Universal J NSN 2520-01-200-3097 · P/N 914202-1524 PROPELLER SHAFT Fits: All A0 models except M1097, plus M1121	1	41 in stock $404.73our price Buy online ↗
6	Propeller Shaft with Universal J NSN 2520-01-423-5120 · P/N 6002629 PROPELLER SHAFT WIT Fits: All A2 models, plus M1123	1	70 in stock $245.00our price Buy online ↗
7	Bearing Race P/N 2-6-1318X BEARING RACE PART OF KIT P/N 1-0153 Fits: All A0 models except M1097, plus M1121	4	Ask us
7	Bearing Race P/N 2-6-288X BEARING RACE PART OF KIT P/N 5-213X Fits: All A1 and A2 models, plus M1097, M1123	4	Ask us
8	Cross Assembly P/N 2-5-668X CROSS ASSEMBLY PART OF KIT P/N 1-0153 Fits: All A0 models except M1097, plus M1121	1	Ask us
8	Cross Assembly P/N 2-5-848X CROSS ASSEMBLY PART OF KIT P/N 5-213X Fits: All A1 and A2 models, plus M1097, M1123	1	Ask us
9	Lubrication Fitting NSN 4730-00-050-4203 · P/N 500174-1 FITTING,LUBRICATION Fits: All models	1	298 in stock
10	Retaining Ring NSN 5325-00-174-9829 · P/N 5226154 RING,RETAINING PART OF KIT P/N 5- 213X PART OF KIT P/N 1-0153 Fits: All models	4	We can source it
11	Propeller Shaft P/N 2-60-996-1524 PROPELLER SHAFT Fits: All A0 models except M1097, plus M1121	1	Ask us
11	Propeller Shaft P/N 2-60-1081 PROPELLER SHAFT Fits: All A1 and A2 models, plus M1097, M1123	1	Ask us
12	Ball Bearing Unit NSN 3130-01-203-9870 · P/N 211415X BEARING UNIT,BALL Fits: All models	1	96 in stock $98.56our price Buy online ↗
13	U Bolt NSN 5306-01-465-1564 · P/N EC12339050 BOLT,U USE WITH T-CASE P/N 5937387, 12342643-1,AND 12447125 Fits: All models	2	10,004 in stock $7.79our price Buy online ↗
14	Plain Hexagon Nut NSN 5310-00-905-4600 · P/N MS51968-6 NUT,PLAIN,HEXAGON Fits: All models	4	80 in stock
15	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: All models	4	2,036 in stock
16	Propeller Shaft with Universal J NSN 2520-01-357-5043 · P/N 5935394 PROPELLER SHAFT USE WITH T-CASE P/N 5937387,12342643-1,AND 12447125 Fits: All A0 and A1 models, plus M1121	1	7 in stock $264.59 per eachgov't list price
16	Propeller Shaft with Universal J NSN 2520-01-200-3096 · P/N 914201-2626 PROPELLER SHAFT USE WITH P/N 12340073-1 Fits: All A0 models except M1097, plus M1121	1	4 in stock $245.79 per eachgov't list price
16	Propeller Shaft with Universal J NSN 2520-01-413-0080 · P/N 6002607 PROPELLER SHAFT WIT Fits: All A2 models, plus M1123	1	24 in stock $301.51 per eachgov't list price
17	Protective Dust and Moisture Cap NSN 5340-01-188-1017 · P/N 211121X CAP,PROTECTIVE,DUST Fits: All models	1	1 in stock $25–$40 eachtypical
18	Lubrication Fitting NSN 4730-00-050-4203 · P/N 500174-1 FITTING,LUBRICATION Fits: All models	1	298 in stock
19	Universal Yoke P/N 2-3-10021X YOKE,UNIVERSAL Fits: All A0 and A1 models, plus M1121	1	Ask us
19	Universal Yoke P/N 2-3-11491KX YOKE,UNIVERSAL Fits: All A2 models, plus M1123	1	Ask us
20	Bearing Race P/N 2-6-1318X BEARING RACE PART OF KIT P/N 1-0153 Fits: All A0 models except M1097, plus M1121	4	Ask us
20	Bearing Race P/N 2-6-288X BEARING RACE PART OF KIT P/N 5-213X Fits: All models	4	Ask us
21	Cross Assembly P/N 2-5-668X CROSS ASSEMBLY PART OF KIT P/N 1- 0153 Fits: All A0 models except M1097, plus M1121	1	Ask us
21	Cross Assembly P/N 2-5-848X CROSS ASSEMBLY PART OF KIT P/N 5- 213X Fits: All models	1	Ask us
22	Lubrication Fitting NSN 4730-00-050-4203 · P/N MS15001-1 FITTING,LUBRICATION Fits: All models	1	298 in stock
23	Retaining Ring NSN 5325-00-174-9829 · P/N 5226154 RING,RETAINING PART OF KIT P/N 5- 213X PART OF KIT P/N 1-0153 Fits: All models	4	We can source it
24	Propeller Shaft P/N 2-60-607 PROPELLER SHAFT Fits: All A0 models except M1097, plus M1121	1	Ask us
24	Propeller Shaft P/N 2-60-1082 PROPELLER SHAFT Fits: All A0 and A1 models, plus M1121	1	Ask us
24	Propeller Shaft P/N 2-60-1082A2 PROPELLER SHAFT Fits: All A2 models, plus M1123	1	Ask us

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
