HMMWV Rear Propeller Shaft Assemblies TM 9-2320-280-24P · Fig. 137

Every part in figure 137 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0900 Propeller Shafts: 30 lines, 20 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

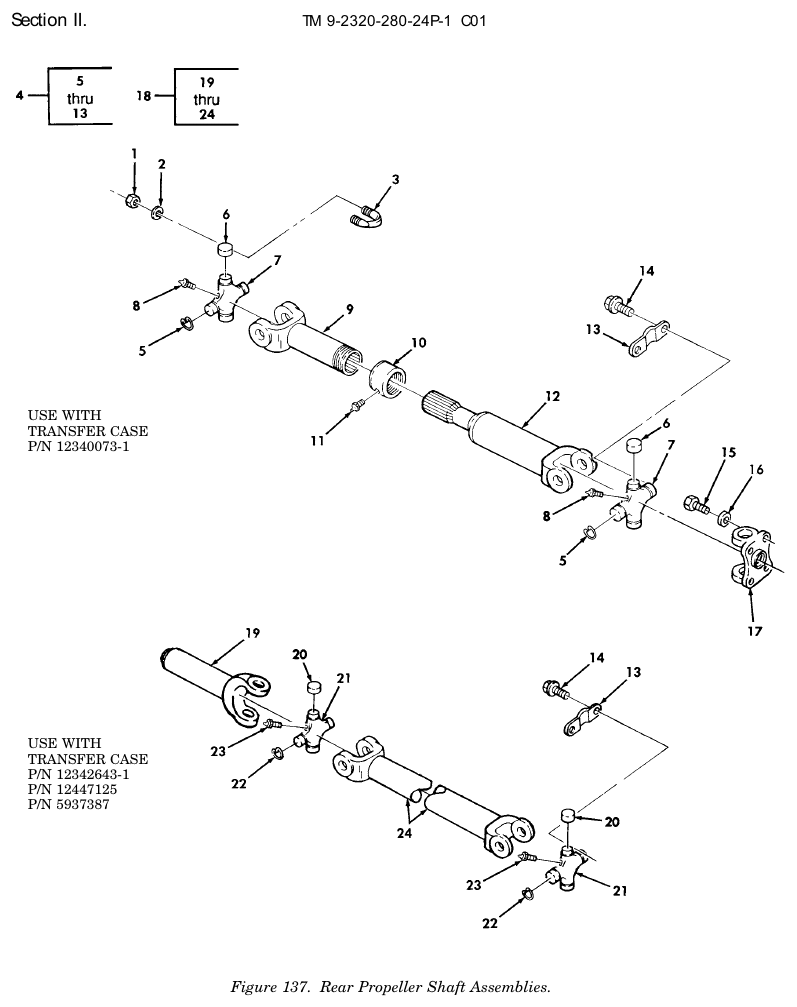

TM 9-2320-280-24P figure 137, Rear Propeller Shaft Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Hexagon Nut NSN 5310-00-880-7746 · P/N MS51968-5 NUT,PLAIN,HEXAGON 5/16-24 Fits: All A0 models except M1097, plus M1121	4	17 in stock
2	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: All A0 models except M1097, plus M1121	4	2,036 in stock
3	U Bolt NSN 5306-01-465-1564 · P/N EC12339050 BOLT,U 5/16-24 Fits: All A0 models except M1097, plus M1121	2	10,004 in stock $7.79our price Buy online ↗
4	Propeller Shaft with Universal J NSN 2520-01-171-8258 · P/N 913359-1528 PROPELLER SHAFT USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	27 in stock $319.38 per eachgov't list price
4	Propeller Shaft with Universal J NSN 2520-01-346-1374 · P/N 915051-1624 PROPELLER SHAFT USBL EFF 44825 AND ABOVE Fits: All A0 models except M1097, plus M1121	1	42 in stock $260.67our price Buy online ↗
5	Retaining Ring NSN 5325-00-174-9829 · P/N 5226154 RING,RETAINING PART OF KIT P/N 5- 213X Fits: All A0 models except M1097, plus M1121	8	We can source it
6	Bearing Race P/N 2-6-288X BEARING RACE PART OF KIT P/N 5-213X Fits: All A0 models except M1097, plus M1121	8	Ask us
7	Cross Assembly P/N 2-5-848X CROSS ASSEMBLY PART OF KIT P/N 5- 213X Fits: All A0 models except M1097, plus M1121	2	Ask us
8	Lubrication Fitting NSN 4730-00-050-4203 · P/N MS15001-1 FITTING,LUBRICATION Fits: All A0 models except M1097, plus M1121	2	298 in stock
9	Universal Joint Vehicular Yoke NSN 2520-01-189-0594 · P/N 2-3-7961KX YOKE,UNIVERSAL JOIN Fits: All A0 models except M1097, plus M1121	1	85 in stock $80–$135 eachtypical
10	Protective Dust and Moisture Cap NSN 5340-01-188-1017 · P/N 211121X CAP,PROTECTIVE,DUST Fits: All A0 models except M1097, plus M1121	1	1 in stock $25–$40 eachtypical
11	Lubrication Fitting NSN 4730-00-050-4203 · P/N 500174-1 FITTING,LUBRICATION Fits: All A0 models except M1097, plus M1121	1	298 in stock
12	Propeller Shaft Wit Usbl Eff P/N 2-60-899-1528 PROPELLER SHAFT WIT USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	Ask us
12	Propeller Shaft Usbl Eff P/N 2-60-899-1623 PROPELLER SHAFT USBL EFF 44825 AND ABOVE Fits: All A0 models except M1097, plus M1121	1	Ask us
13	Retaining Strap NSN 5340-01-190-0807 · P/N 2-70-59 STRAP,RETAINING USBL EFF 44825 AND ABOVE Fits: All models	2	39 in stock
14	Machine Bolt NSN 5306-01-190-5760 · P/N 231401 BOLT,SELF-LOCKING USBL EFF 44825 AND ABOVE Fits: All models	4	36 in stock
15	Machine Bolt NSN 5306-01-185-7052 · P/N 9419293 BOLT,MACHINE USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	4	16 in stock
16	Lock Washer NSN 5310-01-185-4672 · P/N 123153 WASHER,LOCK 7/16,USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	4	4 in stock
17	Universal Joint Vehicular Yoke NSN 2520-01-249-1506 · P/N 2-2-1209 YOKE,UNIVERSAL JOIN USBL EFF 1 THRU 44824 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	1	4 in stock $100–$165 eachtypical
18	Propeller Shaft with Universal J NSN 2520-01-357-5044 · P/N 5937339 PROPELLER SHAFT USE WITH T-CASE P/N 5937387 AND 12332643-1 Fits: All A1 models, plus M1097	1	2 in stock $260.23 per eachgov't list price
18	Propeller Shaft with Universal J NSN 2520-01-459-0050 · P/N 6007749 PROPELLER SHAFT WIT USE WITH T-CASE P/N 12447125 WHEN KIT P/N 57K3498 IS INSTALLED Fits: All A0 models except M1097, plus M1121	1	9 in stock $267.94 per eachgov't list price
18	Constant VE Drive Shaft Assembly NSN 2520-01-413-2724 · P/N 6003666 PROPELLER SHAFT WIT Fits: All A2 models, plus M1123	1	3 in stock $685.15 per eachgov't list price
19	Universal Joint Vehicular Yoke NSN 2520-01-386-3384 · P/N 2-3-11781X YOKE,UNIVERSAL JOIN Fits: All A1 models, plus M1097	1	1 in stock $103.04 per eachgov't list price
19	Universal Joint Vehicular Yoke NSN 2520-01-478-7282 · P/N 2-3-10831X YOKE,UNIVERSAL JOIN Fits: All A2 models; all A0 models except M1097, plus M1121, M1123	1	3 in stock $85–$145 eachtypical
20	Bearing Race P/N 2-6-288X BEARING RACE PART OF KIT P/N 5-213X Fits: All models	8	Ask us
21	Cross Assembly P/N 2-5-848X CROSS ASSEMBLY PART OF KIT P/N 5-213X Fits: All models	2	Ask us
22	Retaining Ring NSN 5325-00-174-9829 · P/N 5226154 RING,RETAINING PART OF KIT P/N 5-213X Fits: All models	8	We can source it
23	Lubrication Fitting NSN 4730-00-050-4203 · P/N 500174-1 FITTING,LUBRICATION Fits: All models	2	298 in stock
24	Shaft P/N 2-60-550 SHAFT Fits: All A0 and A1 models, plus M1121	1	Ask us
24	Shaft P/N 2-60-550A2 SHAFT Fits: All A2 models, plus M1123	1	Ask us

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
