HMMWV Fuel Tank Assembly and Mounting Straps TM 9-2320-280-24P · Fig. 16

Every part in figure 16 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0306 Tanks, Lines, Fittings, Headers: 43 lines, 30 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

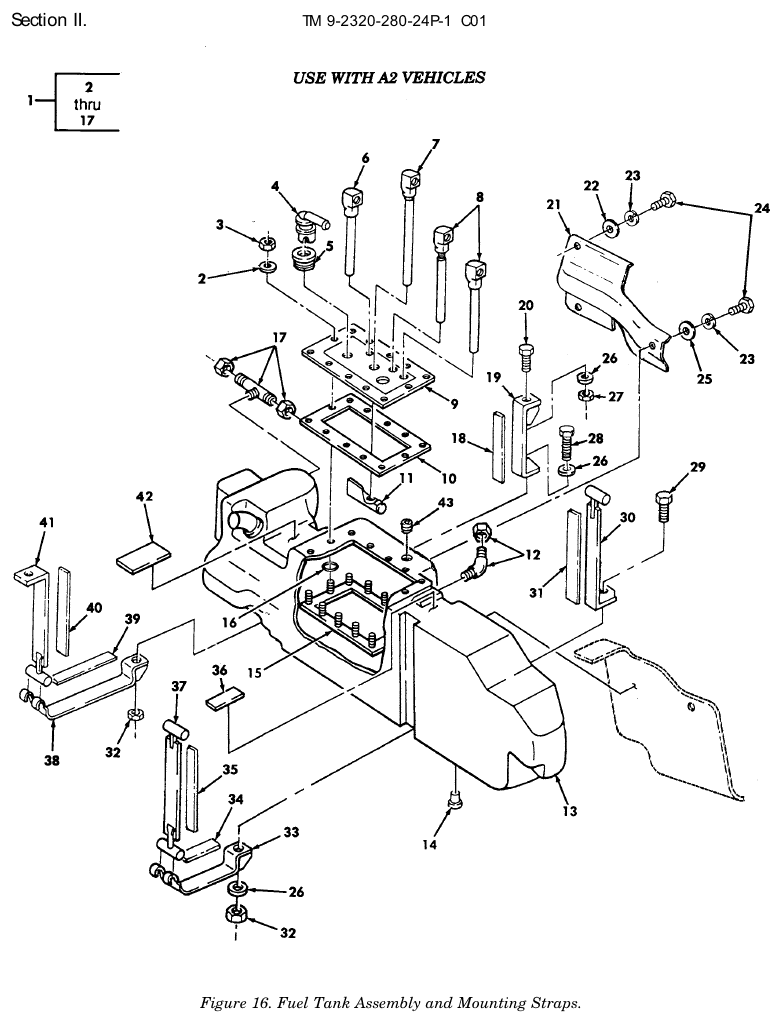

TM 9-2320-280-24P figure 16, Fuel Tank Assembly and Mounting Straps: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Fuel Engine Tank NSN 2910-01-411-2124 · P/N 12460104 TANK,FUEL,ENGINE Fits: All A2 models, plus M1123	1	4 in stock $1,661.10our price Buy online ↗
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All A2 models, plus M1123	12	351 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A2 models, plus M1123	12	626 in stock
4	Vent Valve NSN 4820-01-210-3488 · P/N 346-786 VALVE,VENT Fits: All A2 models, plus M1123	1	63 in stock $31.88our price Buy online ↗
5	Nonmetallic Grommet NSN 5325-01-210-2870 · P/N E1F79B076-B GROMMET,NONMETALLIC Fits: All A2 models, plus M1123	1	18 in stock
6	Metal Tube Assembly NSN 4710-01-359-2956 · P/N 12338548-2 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	94 in stock $25–$55 eachtypical
7	Metal Tube Assembly NSN 4710-01-188-6050 · P/N 5574872 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	95 in stock $25–$50 eachtypical
8	Metal Tube Assembly NSN 4710-01-186-9617 · P/N 12338549 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	2	2,946 in stock $48.99our price Buy online ↗
9	Mounting Plate NSN 5340-01-357-3996 · P/N 12342746 PLATE,MOUNTING Fits: All A2 models, plus M1123	1	35 in stock $86.00our price Buy online ↗
10	Gasket NSN 5330-01-194-0473 · P/N 12338585 GASKET Fits: All A2 models, plus M1123	1	120 in stock $25–$40 eachtypical
11	Sediment Strainer Body NSN 4730-01-189-8854 · P/N 25055210 STRAINER BODY,SEDIM Fits: All A2 models, plus M1123	1	10 in stock $75–$130 eachtypical
12	Pipe to Tube Elbow NSN 4730-01-091-2809 · P/N 279NTA-8-6 ELBOW,PIPE TO TUBE Fits: All A2 models, plus M1123	1	70 in stock
13	Fuel Engine Tank NSN 2910-01-447-3911 · P/N 12460105 TANK,FUEL,ENGINE Fits: All A2 models, plus M1123	1	597 in stock $546.51 per eachgov't list price
14	Protective Dust and Moistur Plug NSN 5340-01-244-5765 · P/N 5597286 PLUG,PROTECTIVE,DUS Fits: All A2 models, plus M1123	1	303 in stock $33.00our price Buy online ↗
15	Mounting Plate NSN 5340-01-469-2979 · P/N 12460140 PLATE,MOUNTING Fits: All A2 models, plus M1123	1	61 in stock $50–$95 eachtypical
16	O-Ring NSN 5331-01-477-3657 · P/N 12342933 O-RING Fits: All A2 models, plus M1123	12	28 in stock
17	Pipe to Tube Tee NSN 4730-01-119-6895 · P/N 272NTA-8-6 TEE,PIPE TO TUBE Fits: All A2 models, plus M1123	1	11 in stock $25–$40 eachtypical
18	Nonmetallic CH Make From Seal Seal P/N 12460108-5 SEAL,NONMETALLIC CH MAKE FROM SEAL, P/N 12460108-3,LENGTH AS REQUIRED Fits: All A2 models, plus M1123	1	Ask us
19	Retaining Band NSN 5340-01-186-9606 · P/N 12338568 BAND,RETAINING Fits: All A2 models, plus M1123	1	10 in stock $40–$80 eachtypical
20	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All A2 models, plus M1123	2	26 in stock
21	Safety Fuel Shield NSN 2510-01-444-3360 · P/N 12460143 SHIELD,SAFETY,FUEL Fits: All A2 models, plus M1123	1	1 in stock $35–$75 eachtypical
22	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A2 models, plus M1123	1	2,325 in stock
23	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 1/4 Fits: All A2 models, plus M1123	3	1,162 in stock
24	Machine Screw NSN 5305-01-211-1450 · P/N 9415857 SCREW,MACHINE 1/4-28 X .62 Fits: All A2 models, plus M1123	3	We can source it
25	Flat Washer NSN 5310-00-167-0893 · P/N AN8013-2 WASHER,FLAT SNUBBING Fits: All A2 models, plus M1123	2	300 in stock
26	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	4	6 in stock
27	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON 3/8-16 Fits: All A2 models, plus M1123	2	12 in stock
28	Machine Bolt NSN 5306-01-411-2338 · P/N 12460145-1 BOLT,MACHINE Fits: All A2 models, plus M1123	1	We can source it
29	Cap Hexagon Head Screw NSN 5305-01-412-5995 · P/N 12460145-2 SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	2	We can source it $25–$40 eachtypical
30	Retaining Band NSN 5340-01-408-5851 · P/N 6000300 BAND,RETAINING Fits: All A2 models, plus M1123	1	We can source it $35–$65 eachtypical
31	Seal P/N 6000333 SEAL,NONMETALLIC CH MAKE FROM SEAL ,P/N 12460108-3, 9.20 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
32	Self-Locking Hexagon Nut NSN 5310-01-344-8250 · P/N MS51943-6 NUT,SELF-LOCKING Fits: All A2 models, plus M1123	2	We can source it
33	Retaining Band NSN 5340-01-191-0748 · P/N 12338571 BAND,RETAINING Fits: All A2 models, plus M1123	1	13 in stock $50–$90 eachtypical
34	Seal P/N 6000334 SEAL,NONMETALLIC CH MAKE FROM SEAL ,P/N 12460108-3, 7.70 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
35	Seal P/N 12460108-3-AR SEAL,NONMETALLIC CH MAKE FROM SEAL ,P/N 12460108-3,LENGTH TO SUIT Fits: All A2 models, plus M1123	1	Ask us
36	Rubber Strip NSN 5330-01-187-5148 · P/N 12338557-2 RUBBER STRIP Fits: All A2 models, plus M1123	1	We can source it
37	Retaining Band NSN 5340-01-191-0746 · P/N 5582412 BAND,RETAINING Fits: All A2 models, plus M1123	1	13 in stock $70–$115 eachtypical
38	Retaining Strap NSN 5340-01-190-5100 · P/N 12338574 STRAP,RETAINING Fits: All A2 models, plus M1123	1	1 in stock $45–$90 eachtypical
39	Seal P/N 6000331 SEAL,NONMETALLIC CH MAKE FROM SEAL ,P/N 12460108-3, 9.85 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
40	Seal P/N 6000329 SEAL,NONMETALLIC CH MAKE FROM SEAL ,P/N 12460108-3,LENGTH TO SUIT Fits: All A2 models, plus M1123	1	Ask us
41	Angle Bracket NSN 5340-01-193-0251 · P/N 12338575 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	4 in stock $50–$100 eachtypical
42	Rubber Strip NSN 5330-01-186-7757 · P/N 12338557-1 RUBBER STRIP Fits: All A2 models, plus M1123	1	478 in stock
43	Pipe Plug NSN 4730-00-555-8292 · P/N 12Z329PC92 PLUG,PIPE Fits: All A2 models, plus M1123	1	We can source it

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
