HMMWV Fuel Filter Pipe Assembly and Vent Lines TM 9-2320-280-24P · Fig. 17

Every part in figure 17 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0306 Tanks, Lines, Fittings, Headers: 18 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

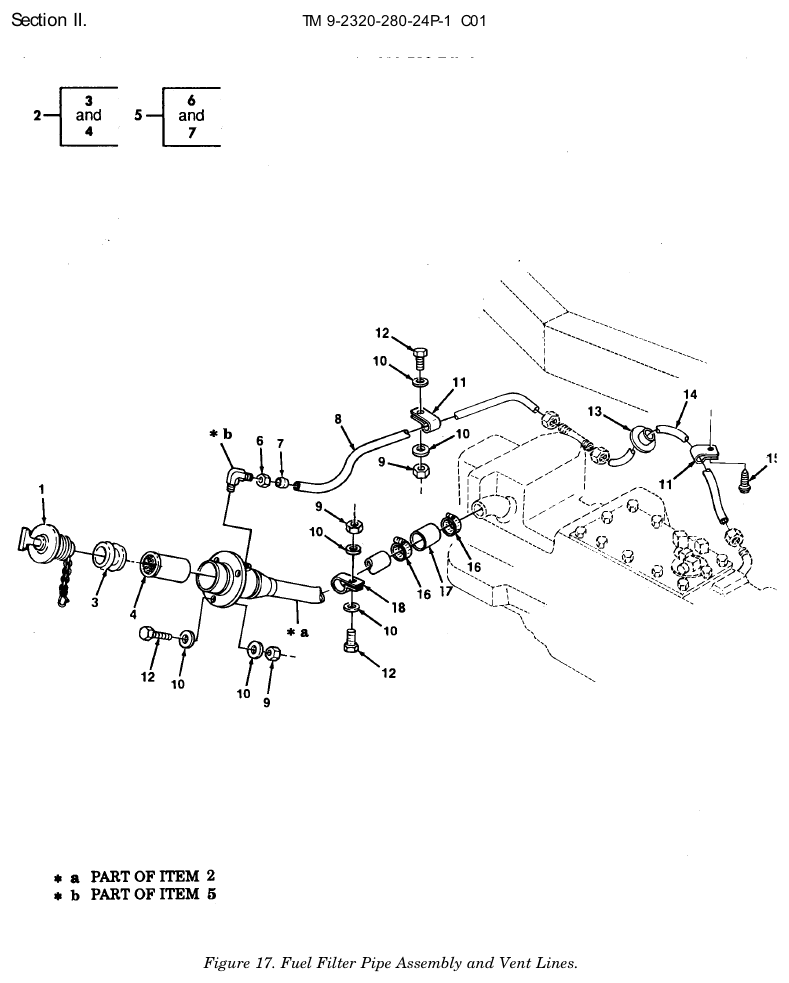

TM 9-2320-280-24P figure 17, Fuel Filter Pipe Assembly and Vent Lines: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Filler Opening Cap NSN 5342-01-246-1120 · P/N 41945 CAP,FILLER OPENING Fits: All models	1	133 in stock $58.79our price Buy online ↗
2	Vehicular Components Filler Neck NSN 2590-01-188-3267 · P/N 12338580 FILLER NECK Fits: All models	1	1 in stock $429.99 per eachgov't list price
3	Nonmetallic Grommet NSN 5325-01-194-0562 · P/N 12339296 GROMMET,NONMETALLIC Fits: All models	1	1,133 in stock
4	Sediment Strainer Element NSN 4730-01-311-4294 · P/N 12342096 STRAINER ELEMENT,SE Fits: All models	1	4 in stock $35–$75 eachtypical
5	Pipe to Tube Elbow NSN 4730-00-278-3828 · P/N 69F1-2X3-8IN ELBOW,PIPE TO TUBE Fits: All models	1	1 in stock
6	Tube Coupling Nut NSN 4730-01-048-7874 · P/N 8 100110B .NUT,TUBE COUPLING Fits: All models	1	We can source it
7	Compression Tube-Hose Fit Sleeve NSN 4730-01-049-1559 · P/N 8 100115B .SLEEVE,COMPRESSION Fits: All models	1	We can source it
8	Tube Make From Hose P/N 5577552 TUBE MAKE FROM HOSE,P/N PFT-88-BLK- 100,45 INCHES LONG Fits: All models	1	Ask us
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	5	626 in stock
10	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	10	351 in stock
11	Loop Clamp NSN 5340-00-385-8820 · P/N COV-0909 CLAMP,LOOP Fits: All models	2	23 in stock
12	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	5	248 in stock
13	Electrical Conductor Bushing NSN 5975-01-211-3142 · P/N SB-750-625-2840 BUSHING,ELECTRICAL Fits: All models	1	1,693 in stock
14	Tube Make From Hose P/N 5573534 TUBE MAKE FROM HOSE,P/N PFT-88-BLK- 100,27 INCHES LONG Fits: All models	1	Ask us
15	Tapping Screw NSN 5305-01-206-7219 · P/N G9426241 SCREW,TAPPING 1/4-14 X 1/2 Fits: All models	1	We can source it
16	Hose Clamp NSN 4730-00-909-8627 · P/N 36HSS CLAMP,HOSE Fits: All models	2	428 in stock
17	Nonmetallic Hose NSN 4720-01-212-8269 · P/N 12338551-2 HOSE,NONMETALLIC Fits: All models	1	2 in stock $25–$60 eachtypical
18	Loop Clamp NSN 5340-01-210-0692 · P/N COV-3311 CLAMP,LOOP Fits: All models	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
