HMMWV Rear Brake Lines and Fittings TM 9-2320-280-24P · Fig. 162

Every part in figure 162 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1204 Hydraulic Brake System: 26 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

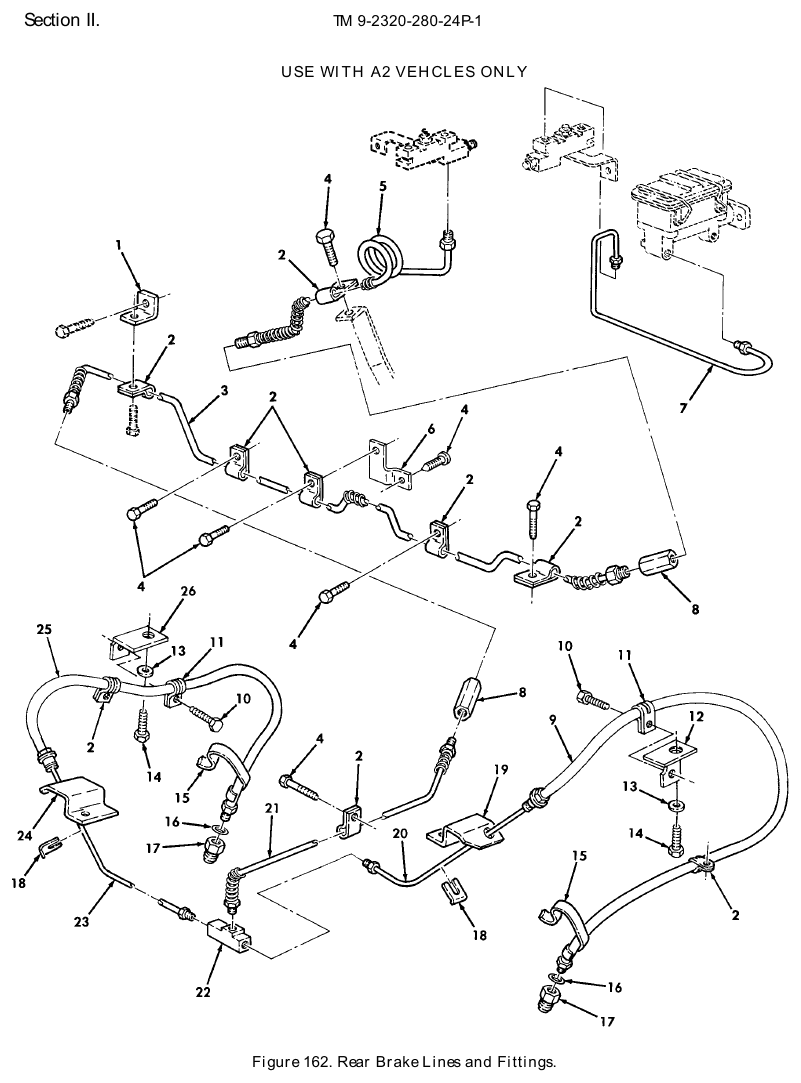

TM 9-2320-280-24P figure 162, Rear Brake Lines and Fittings: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Angle Bracket NSN 5340-01-209-7796 · P/N 12338302 BRACKET,ANGLE Fits: All A2 models, plus M1123	1	We can source it
2	Loop Clamp NSN 5340-01-189-7640 · P/N 179148 CLAMP,LOOP Fits: All A2 models, plus M1123	6	298 in stock
3	Metal Tube Assembly NSN 4710-01-413-8230 · P/N 12447166 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	We can source it $55–$105 eachtypical
4	Cap Socket Head Screw NSN 5305-00-051-8605 · P/N MS16995-77 SCREW,CAP,SOCKET HE Fits: All A2 models, plus M1123	6	We can source it
5	Metal Tube Assembly NSN 4710-01-186-9620 · P/N 12338307 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
6	Mounting Bracket NSN 5340-01-412-0867 · P/N 12447165 BRACKET,MOUNTING Fits: All A2 models, plus M1123	1	209 in stock
7	Hose Assembly NSN 4720-01-456-2955 · P/N EX4786-4 HOSE ASSEMBLY,NONME Fits: All A2 models, plus M1123	1	We can source it
8	Hose Coupling NSN 4730-01-457-0727 · P/N 442393 COUPLING,HOSE Fits: All A2 models, plus M1123	1	We can source it
9	Nonmetallic Hose Assembly NSN 4720-01-443-3481 · P/N RCSK18435-3 HOSE ASSEMBLY,NONME L.H Fits: All A2 models, plus M1123	1	231 in stock $78.25our price Buy online ↗
10	Tapping Screw NSN 5305-01-393-6311 · P/N 271153 SCREW,TAPPING 3/8-16 X .63 Fits: All A2 models, plus M1123	7	We can source it
11	Loop Clamp NSN 5340-00-057-3043 · P/N MS21333-112 CLAMP,LOOP Fits: All A2 models, plus M1123	2	6,753 in stock
12	Angle Bracket NSN 5340-01-458-7156 · P/N EX4717-1 BRACKET,ANGLE L.H Fits: All A2 models, plus M1123	1	We can source it $25–$55 eachtypical
13	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT Fits: All A2 models, plus M1123	2	1,368 in stock
14	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE 5/16-18 X 1.13 Fits: All A2 models, plus M1123	2	84,127 in stock
15	Plastic Tubing P/N B47287-II-1/2-27 TUBING,PLASTIC,SPIR MAKE FROM TUBING,P/N B47287-II-1/2,27 INCHES LONG Fits: All A2 models, plus M1123	2	Ask us
16	Flat Washer NSN 5310-01-189-8476 · P/N 5582366 WASHER,FLAT 25/64 Fits: All A2 models, plus M1123	1	22 in stock
17	Tube Coupling NSN 4730-01-184-6971 · P/N 12339235 COUPLING,TUBE Fits: All A2 models, plus M1123	2	554 in stock $24.49our price Buy online ↗
18	Hand Brake Cab Clip NSN 5340-00-678-1753 · P/N 7331407 CLIP,HAND BRAKE CAB Fits: All A2 models, plus M1123	2	35 in stock
19	Multiple Angle Bracket NSN 5340-01-432-8681 · P/N EX4228-1 BRACKET,MULTIPLE AN L.H Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
20	Metal Tube Assembly NSN 4710-01-434-3151 · P/N EX4231-3 TUBE ASSEMBLY,METAL L.H Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
21	Metal Tube Assembly NSN 4810-01-434-3159 · P/N EX4234 TUBE ASSEMBLY,METAL Fits: All A2 models, plus M1123	1	82 in stock $30–$70 eachtypical
22	Tube Tee NSN 4730-00-287-1706 · P/N 178654 TEE,TUBE Fits: All A2 models, plus M1123	1	5 in stock
23	Metal Tube Assembly NSN 4710-01-434-3157 · P/N EX4231-4 TUBE ASSEMBLY,METAL R.H Fits: All A2 models, plus M1123	1	820 in stock
24	Multiple Angle Bracket NSN 5340-01-434-8109 · P/N EX4228-2 BRACKET,MULTIPLE AN R.H Fits: All A2 models, plus M1123	1	We can source it $35–$65 eachtypical
25	Nonmetallic Hose Assembly NSN 4720-01-443-8487 · P/N RCSK18435-2 HOSE ASSEMBLY,NONME R.H Fits: All A2 models, plus M1123	1	We can source it $45–$85 per assemblytypical
26	Angle Bracket NSN 5340-01-458-7147 · P/N EX4717-2 BRACKET,ANGLE R.H Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
