HMMWV Master Cylinder Assembly TM 9-2320-280-24P · Fig. 163

Every part in figure 163 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1204 Hydraulic Brake System: 11 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

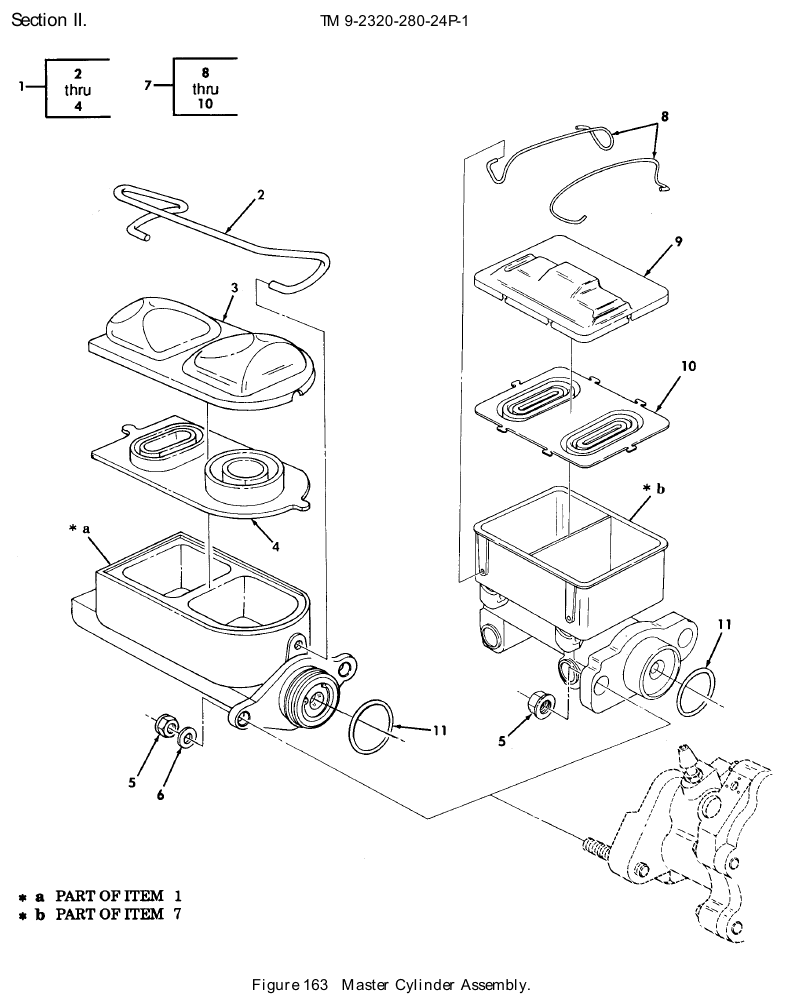

TM 9-2320-280-24P figure 163, Master Cylinder Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hydraulic Brake Master Cylinder NSN 2530-01-179-7589 · P/N 2232134 CYLINDER,HYDRAULIC Fits: All A0 models except M1097, plus M1121	1	152 in stock $158.00our price Buy online ↗
2	Retaining Clip NSN 5340-01-293-5558 · P/N 2230648 CLIP,RETAINING Fits: All A0 models except M1097, plus M1121	1	We can source it
3	Reservoir Cover P/N 2232146 COVER,RESERVOIR Fits: All A0 models except M1097, plus M1121	1	Ask us
4	Gasket NSN 5330-01-293-5345 · P/N 2229379 GASKET Fits: All A0 models except M1097, plus M1121	1	1 in stock
5	Self-Locking Hexagon Nut NSN 5310-01-173-0941 · P/N 129599 NUT,SELF-LOCKING,HE 3/8-16 Fits: All A0 models except M1097, plus M1121	2	1,466 in stock
6	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All A1 and A2 models, plus M1097, M1123	2	1,146 in stock $7.83our price Buy online ↗
7	Hydraulic Brak Cylinder Assembly NSN 2530-01-357-9776 · P/N 12342898 CYLINDER ASSEMBLY,H Fits: All A1 and A2 models, plus M1097, M1123	1	66 in stock $168.00our price Buy online ↗
8	Retaining Clip NSN 5340-01-458-6386 · P/N 2227677 CLIP,RETAINING Fits: All A1 and A2 models, plus M1097, M1123	2	We can source it $35–$70 eachtypical
9	Protective Dust and Moistu Cover NSN 5340-01-456-2751 · P/N 2227346 COVER,PROTECTIVE,DU Fits: All A1 and A2 models, plus M1097, M1123	1	We can source it $25–$40 eachtypical
10	Master Cylinder Hydrau Diaphragm NSN 2530-01-459-5890 · P/N 2228633 DIAPHRAGM,MASTER CY Fits: All A1 and A2 models, plus M1097, M1123	1	5 in stock
11	O-Ring NSN 5331-00-171-6649 · P/N MS28775-223 O-RING Fits: All models	1	7 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
