HMMWV Hydro-Booster TM 9-2320-280-24P · Fig. 164

Every part in figure 164 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1205 Vacuum System Components: 7 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

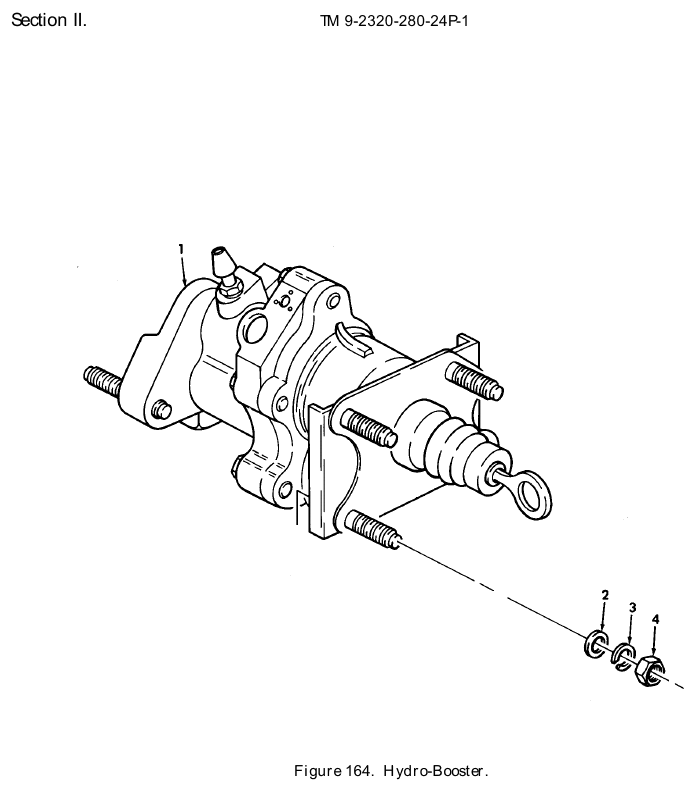

TM 9-2320-280-24P figure 164, Hydro-Booster: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Master CY Brake Booster Assembly NSN 2530-01-357-9708 · P/N 5939396 BRAKE BOOSTER ASSEM Fits: All A1 and A2 models, plus M1097, M1123	1	15 in stock quote only $448.85 per eachgov't list price
1	Hydraulic Brak Cylinder Assembly NSN 2530-01-179-7590 · P/N 2771302 CYLINDER ASSEMBLY,H Fits: All A0 models except M1097, plus M1121	1	24 in stock quote only $797.66 per assemblygov't list price
2	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	4	1,146 in stock $7.83our price Buy online ↗
2	Flat Washer NSN 5310-01-255-2704 · P/N 7982843 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	4	We can source it
3	Lock Washer NSN 5310-00-011-5093 · P/N MS35338-65 WASHER,LOCK 3/8 Fits: All A0 and A1 models, plus M1121	4	71 in stock
3	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A2 models, plus M1123	4	1,162 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All A2 models, plus M1123	4	219 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
