HMMWV Service Brake Pedal Assembly TM 9-2320-280-24P · Fig. 165

Every part in figure 165 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1206 Mechanical Brake System: 12 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

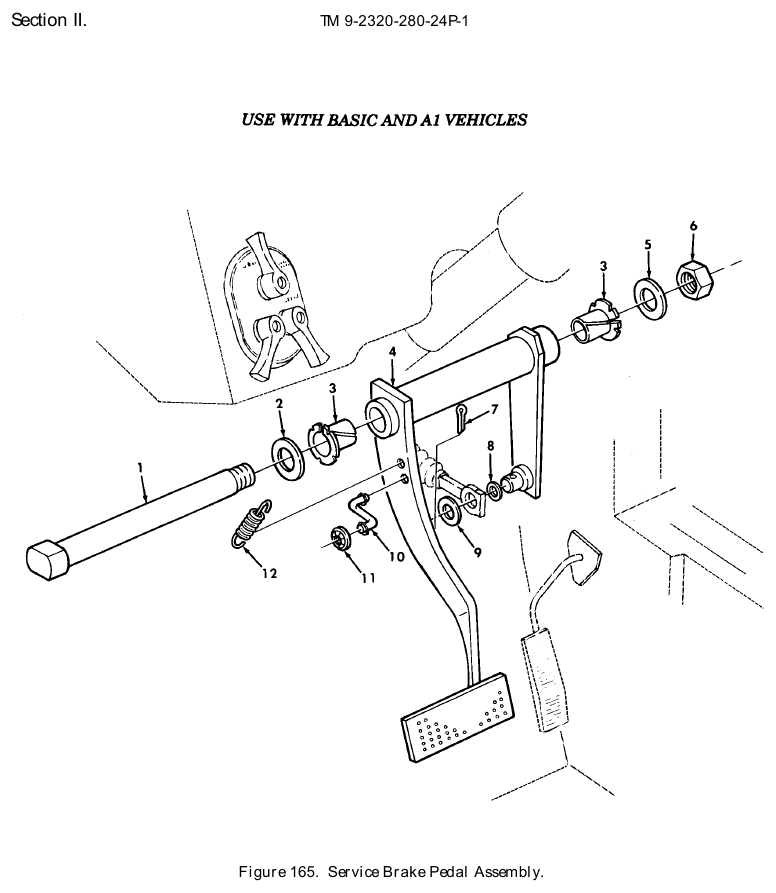

TM 9-2320-280-24P figure 165, Service Brake Pedal Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Shoulder Headed Pin NSN 5315-01-185-8781 · P/N 12339114 PIN,SHOULDER,HEADED Fits: All A0 and A1 models, plus M1121	1	We can source it $40–$75 eachtypical
2	Flat Washer NSN 5310-01-260-4839 · P/N 5593312 WASHER,FLAT 3/4 Fits: All A0 and A1 models, plus M1121	1	We can source it
3	Sleeve Bearing NSN 3120-00-485-1017 · P/N 12L18F BEARING,SLEEVE Fits: All A0 and A1 models, plus M1121	2	We can source it
4	Control Pedal NSN 2540-01-184-4389 · P/N 12338394 PEDAL,CONTROL Fits: All A0 and A1 models, plus M1121	1	7 in stock $230.55 per eachgov't list price
5	Flat Washer NSN 5310-00-068-5285 · P/N MS27183-20 WASHER,FLAT 9/16 Fits: All A0 and A1 models, plus M1121	1	810 in stock
6	Plain Hexagon Nut NSN 5310-00-763-8919 · P/N MS51967-18 NUT,PLAIN,HEXAGON 9/16-12 Fits: All A0 and A1 models, plus M1121	1	627 in stock
7	Cotter Pin NSN 5315-00-816-1794 · P/N PK379 PIN,COTTER 3/32 X 1.00 Fits: All A0 and A1 models, plus M1121	1	8 in stock
8	Washer NSN 5310-01-189-8485 · P/N 4004616 WASHER,SPRING TENSI 1/2 Fits: All A0 and A1 models, plus M1121	1	12 in stock
9	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2 Fits: All A0 and A1 models, plus M1121	1	428 in stock $27.99our price Buy online ↗
10	Rigid Connecting Link NSN 3040-01-186-0967 · P/N 12338390 CONNECTING LINK,RIG Fits: All A0 and A1 models, plus M1121	1	123 in stock
11	Push on Nut NSN 5310-01-188-6861 · P/N 12339313 PUSH ON NUT 3/16 Fits: All A0 and A1 models, plus M1121	2	12 in stock
12	Helical Extension Spring NSN 5360-01-186-4845 · P/N 5578667 SPRING,HELICAL,EXTE Fits: All A0 and A1 models, plus M1121	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
