HMMWV Service Brake Pedal Assembly TM 9-2320-280-24P · Fig. 166

Every part in figure 166 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1206 Mechanical Brake System: 10 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

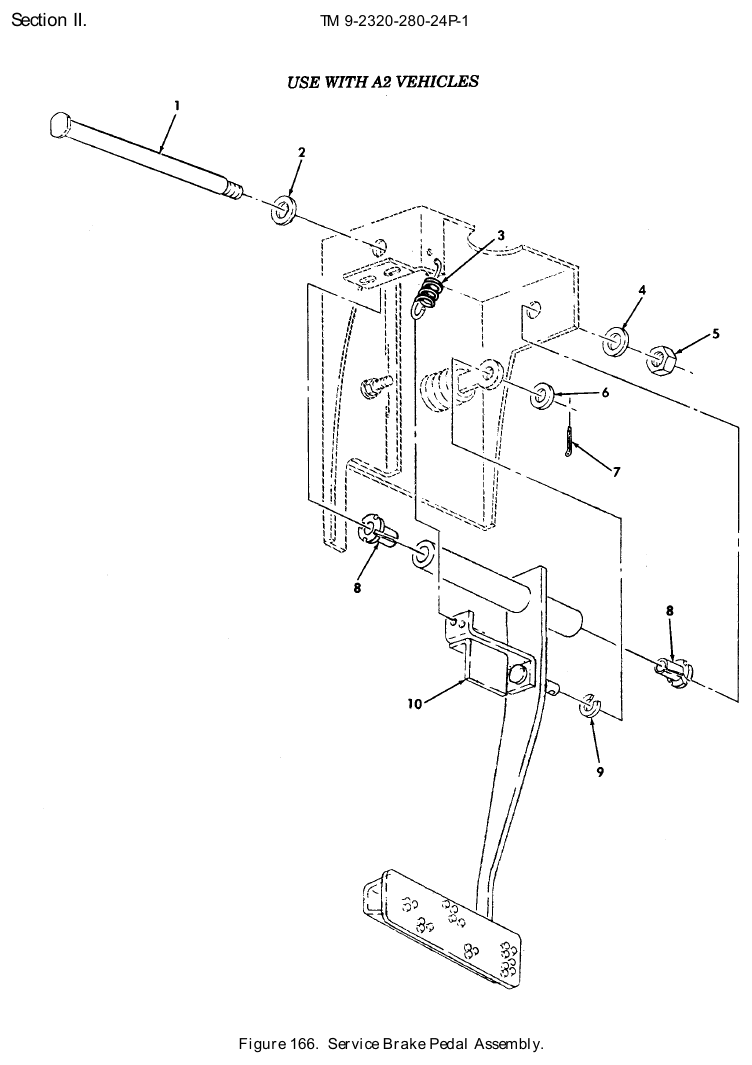

TM 9-2320-280-24P figure 166, Service Brake Pedal Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Shoulder Headed Pin NSN 5315-01-185-8781 · P/N 12339114 PIN,SHOULDER,HEADED Fits: All A2 models, plus M1123	1	We can source it $40–$75 eachtypical
2	Flat Washer NSN 5310-01-147-4052 · P/N 2436168 WASHER,FLAT 3/4 Fits: All A2 models, plus M1123	1	301 in stock
3	Helical Extension Spring NSN 5360-01-186-4845 · P/N 5578667 SPRING,HELICAL,EXTE Fits: All A2 models, plus M1123	1	We can source it
4	Flat Washer NSN 5310-00-068-5285 · P/N MS27183-20 WASHER,FLAT 9/16 Fits: All A2 models, plus M1123	1	810 in stock
5	Self-Locking Hexagon Nut NSN 5310-00-044-3342 · P/N 9422303 NUT,SELF-LOCKING,HE 9/16 Fits: All A2 models, plus M1123	1	We can source it
6	Flat Washer NSN 5310-00-809-5998 · P/N MS27183-18 WASHER,FLAT 1/2 Fits: All A2 models, plus M1123	1	428 in stock $27.99our price Buy online ↗
7	Cotter Pin NSN 5315-00-816-1794 · P/N PK379 PIN,COTTER 3/32 X 1.00 Fits: All A2 models, plus M1123	1	8 in stock
8	Sleeve Bearing NSN 3120-00-485-1017 · P/N 12L18F BEARING,SLEEVE Fits: All A2 models, plus M1123	2	We can source it
9	Spring Tension Washer NSN 5310-01-413-2049 · P/N 12338124 WASHER,SPRING TENSI 1/2 Fits: All A2 models, plus M1123	1	2 in stock
10	Control Pedal NSN 2540-01-411-3946 · P/N 12447078 PEDAL,CONTROL Fits: All A2 models, plus M1123	1	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
