HMMWV Wheel and Runflat Assembly TM 9-2320-280-24P · Fig. 167

Every part in figure 167 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 13 Wheels: 38 lines, 30 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

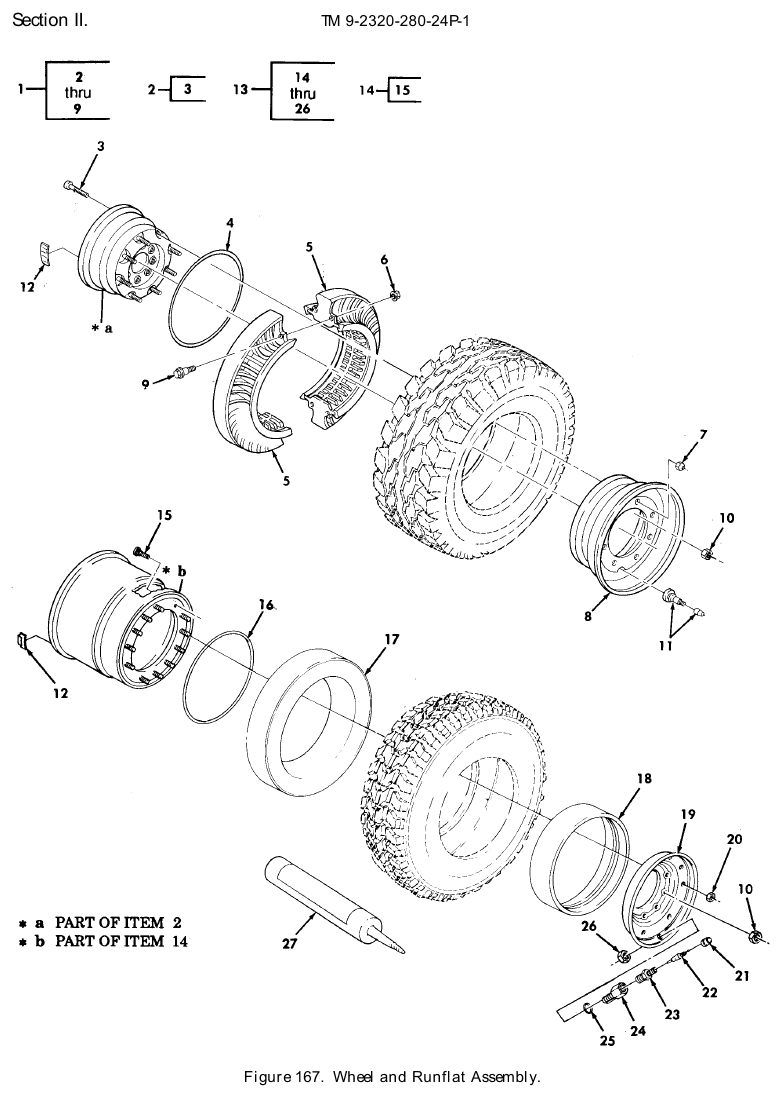

TM 9-2320-280-24P figure 167, Wheel and Runflat Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Wheel and Run Flat P/N 89305 WHEEL AND RUN FLAT USE WITH BIAS TIRE ONLY Fits: All A0 models except M1097, plus M1121	4	Ask us
2	Wheel Pneumatic Tire Rim NSN 2530-01-161-0006 · P/N 89322 RIM,WHEEL,PNEUMATIC INNER,USE WITH BIAS TIRE ONLY Fits: All A0 models except M1097, plus M1121	1	352 in stock $175.00our price Buy online ↗
3	Ribbed Neck Bolt NSN 5306-01-175-7577 · P/N 5578150 BOLT,RIBBED NECK 1/2-20 X 2.00, USE WITH P/N 89322 Fits: All A0 models except M1097, plus M1121	8	31 in stock
4	O-Ring NSN 5331-01-176-0923 · P/N 5591345 O-RING USE WITH BIAS WHEEL ONLY Fits: All A0 models except M1097, plus M1121	1	20 in stock
5	Runflat Rim NSN 2640-01-161-2114 · P/N 12338803 RIM,RUNFLAT USE WITH BIAS TIRE ONLY Fits: All A0 models except M1097, plus M1121	2	25 in stock quote only
6	Self-Locking Extended Washer Nut NSN 5310-00-930-8214 · P/N MS51988-7 NUT,SELF-LOCKING,EX 3/8-16,USE WITH BIAS WHEEL ONLY Fits: All A0 models except M1097, plus M1121	4	We can source it
7	Self-Locking Hexagon Nut NSN 5310-01-198-7585 · P/N 12339501 NUT,SELF-LOCKING,HE 1/2-20,USE WITH BIAS WHEEL ONLY Fits: All A0 models except M1097, plus M1121	8	870 in stock
8	Wheel Rim NSN 2530-01-161-0005 · P/N 89321 RIM,WHEEL,PNEUMATIC USE WITH BIAS TIRE ONLY Fits: All A0 models except M1097, plus M1121	1	117 in stock
9	Cap Hexagon Head Screw NSN 5305-01-205-6048 · P/N 89324 SCREW,CAP,HEXAGON H 3/8-16 X 1.625,USE WITH BIAS WHEEL ONLY Fits: All A0 models except M1097, plus M1121	4	8 in stock
10	Plain Cone Seat Hexagon Nut NSN 5310-01-021-9027 · P/N 1567442 NUT,PLAIN,CONE SEAT 9/16-18 Fits: All models	32	271 in stock
11	Pneumatic Tire Valve NSN 2640-00-555-2834 · P/N T-18 VALVE,PNEUMATIC TIR USE WITH BIAS WHEEL ONLY Fits: All A0 models except M1097, plus M1121	4	41 in stock
12	Wheel Balancing Weight NSN 2530-01-235-8688 · P/N 5593926 WEIGHT,WHEEL BALANC ADHESIVE Fits: All models	V	We can source it
12	Wheel Balancing Weight NSN 2530-01-261-6844 · P/N 5595966 WEIGHT,BALANCE CLIP ON,1/2 OUNCE Fits: All models	V	We can source it
12	Wheel Balancing Weight NSN 6670-01-261-6846 · P/N 5595969 WEIGHT,BALANCE CLIP ON,2 OUNCE Fits: All models	V	4,250 in stock
12	Wheel Balancing Weight NSN 2530-01-261-8011 · P/N 5595971 WEIGHT,BALANCE CLIP ON,3 OUNCE Fits: All models	V	100 in stock
12	Wheel Balancing Weight NSN 6680-01-261-8013 · P/N 5595973 WEIGHT,BALANCE CLIP ON,4 OUNCE Fits: All models	V	147 in stock
12	Wheel Balancing Weight NSN 2530-01-262-8647 · P/N P-500 WEIGHT,BALANCE CLIP ON,5 OUNCE Fits: All models	V	We can source it
13	Wheel and Runflat P/N 12460176 WHEEL AND RUNFLAT,A (3850 LB) Fits: All A2 models, plus M1123	4	Ask us
13	Wheel and Runflat P/N 12342641 WHEEL AND RUNFLAT,A (3400 LB) Fits: All A0 and A1 models, plus M1121	4	Ask us
14	Wheel Pneumatic Tire Rim NSN 2530-01-417-4908 · P/N 12460177 RIM,WHEEL,PNEUMATI INNER,(3850 LB) PART OF KIT P/N 57K3527 Fits: All models	1	122 in stock $271.81 per eachgov't list price
14	Wheel Pneumatic Tire Rim NSN 2530-01-336-5740 · P/N 12342642 RIM,WHEEL,PNEUMATI INNER,(3400 LB) 12460177 Fits: All A0 and A1 models, plus M1121	1	80 in stock
15	Ribbed Neck Bolt NSN 5306-01-336-7175 · P/N 90297 BOLT,RIBBED NECK 1/2-20 X 2.12, USE WITH RIM P/N 12342642,(3400 LB) Fits: All A0 and A1 models, plus M1121	12	2,991 in stock
16	O-Ring NSN 5331-01-417-1043 · P/N 91610 O-RING USE WITH RIM P/N 12460177, PART OF KIT P/N 57K3527 Fits: All models	1	208 in stock $19.59our price Buy online ↗
16	O-Ring NSN 5330-01-335-8878 · P/N 12342633 O-RING USE WITH RIM P/N 12342642 Fits: All A0 and A1 models, plus M1121	1	168 in stock $34.50our price Buy online ↗
17	Insert Run-Flat Kit NSN 2640-01-419-6202 · P/N VF0010 RUNFLAT,INSERT USE WITH RADIAL TIRE ONLY.(3850 LB) Fits: All models	4	311 in stock $302.00our price Buy online ↗
17	Insert Runflat NSN 2640-01-334-9453 · P/N 12342638 RUNFLAT,INSERT USE WITH RADIAL OR BIAS TIRE,USE WITH RIM P/N 12342642, (3400 LB),PART OF KIT P/N 57K0237 Fits: All A0 and A1 models, plus M1121	4	152 in stock quote only
18	Tire Rim Beadlock NSN 2530-01-338-2730 · P/N 12342639 BEADLOCK,TIRE RIM USE WITH RADIAL TIRE ONLY AND RIM P/N 12342642, (3400 LB) Fits: All A0 and A1 models, plus M1121	1	93 in stock
18	Tire Rim Beadlock NSN 2530-01-386-5499 · P/N 12342911 BEADLOCK,TIRE RIM USE WITH BIAS TIRE ONLY,PART OF KIT P/N 57K0237 Fits: All A0 and A1 models, plus M1121	1	748 in stock quote only
19	Wheel Pneumatic Tire Rim NSN 2530-01-417-8450 · P/N 12460178 RIM,WHEEL,PNEUMATIC USE WITH RIM P/N 12460177,(3850 LB),PART OF KIT P/N 57K3527 Fits: All models	1	184 in stock $248.76 per eachgov't list price
19	Wheel Pneumatic Tire Rim NSN 2530-01-336-3127 · P/N 12342640 RIM,WHEEL,PNEUMATIC USE WITH RIM P/N 12342642,(3400 LB) Fits: All A0 and A1 models, plus M1121	1	30 in stock
20	Self-Locking Hexagon Nut NSN 5310-01-198-7585 · P/N 12339501 NUT,SELF-LOCKING,HE 1/2-20,USE WITH 3850 AND 3400 LB WHEEL,PART OF KIT P/N 57K3527 Fits: All models	12	870 in stock
21	Pneumatic Valve Cap NSN 2640-01-098-2029 · P/N TYIV/CL1/TRVC8 CAP,PNEUMATIC VALVE USE WITH RADIAL TIRE ONLY,PART OF KIT P/N 57K3527 Fits: All models	1	24,168 in stock
22	Valve Core NSN 2640-00-050-1229 · P/N TYV/CL2/TR C1 .VALVE CORE USE WITH RADIAL TIRE ONLY PART OF KIT P/N 57K0297,PART OF KIT P/N 57K3527 Fits: All models	1	212 in stock
23	Pneumatic Tire Valve NSN 2640-01-335-4583 · P/N 12342634 VALVE,PNEUMATIC TIR USE WITH RADIAL TIRE ONLY PART OF KIT P/N 57K0297,PART OF KIT P/N 57K3527 Fits: All models	1	3,407 in stock $11.58our price Buy online ↗
24	Straight Pipe to Tube Adapter NSN 4730-01-346-1063 · P/N 12342793 ADAPTER,STRAIGHT,PI USE WITH RADIAL TIRE ONLY PART OF KIT P/N 57K0297,PART OF KIT P/N 57K3527 Fits: All models	1	12 in stock $30–$65 eachtypical
25	O-Ring NSN 5331-01-346-3806 · P/N 12342794 O-RING USE WITH RADIAL TIRE ONLY PART OF KIT P/N 57K0297,PART OF KIT P/N 57K3527 Fits: All models	1	44 in stock
26	Self-Locking Hexagon Nut NSN 5310-00-449-2376 · P/N MS21245-8 NUT,SELF-LOCKING,HE 1/2-20,USE WITH RADIAL TIRE ONLY PART OF KIT P/N 57K0297,PART OF KIT P/N 57K3527 Fits: All models	1	54 in stock
27	Runflat Lubricant NSN 2640-01-419-6200 · P/N D528235-H1 LUBRICANT,RUNFLAT 11 OZ TUBE Fits: All models	4	Sold out — we can source it quote only

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
