HMMWV Tires TM 9-2320-280-24P · Fig. 168

Every part in figure 168 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1313 Tires, Tubes, Tire Chains: 2 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

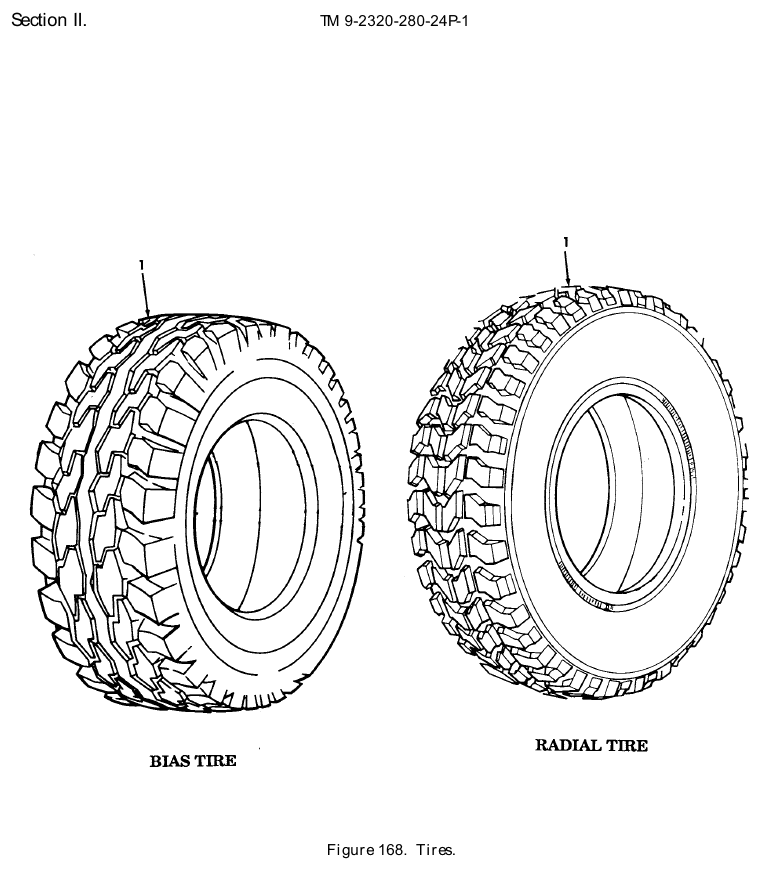

TM 9-2320-280-24P figure 168, Tires: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

	Item	Part	Qty	On our shelf
	1	Pneumatic Vehicular Tire NSN 2610-01-171-4746 · P/N ZZ-T-381/36-1250 TIRE,PNEUMATIC BIAS,36 X 12.50 X -16.5/C/G2A/LTTR 16.50 Fits: All A0 models except M1097, plus M1121	4	32 in stock
	1	Pneumatic Vehicular Tire NSN 2610-01-333-7632 · P/N GP3STYLXTYRACLO/ TIRE,PNEUMATIC RADIAL,37 X 12.50 X O/37-12.50R16.50 16.50 Fits: All models	4	72 in stock $525.00our price Buy online ↗
