HMMWV Steering Column, Wheel, and Intermediate Shaft TM 9-2320-280-24P · Fig. 169

Every part in figure 169 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 14 Steering: 36 lines, 33 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

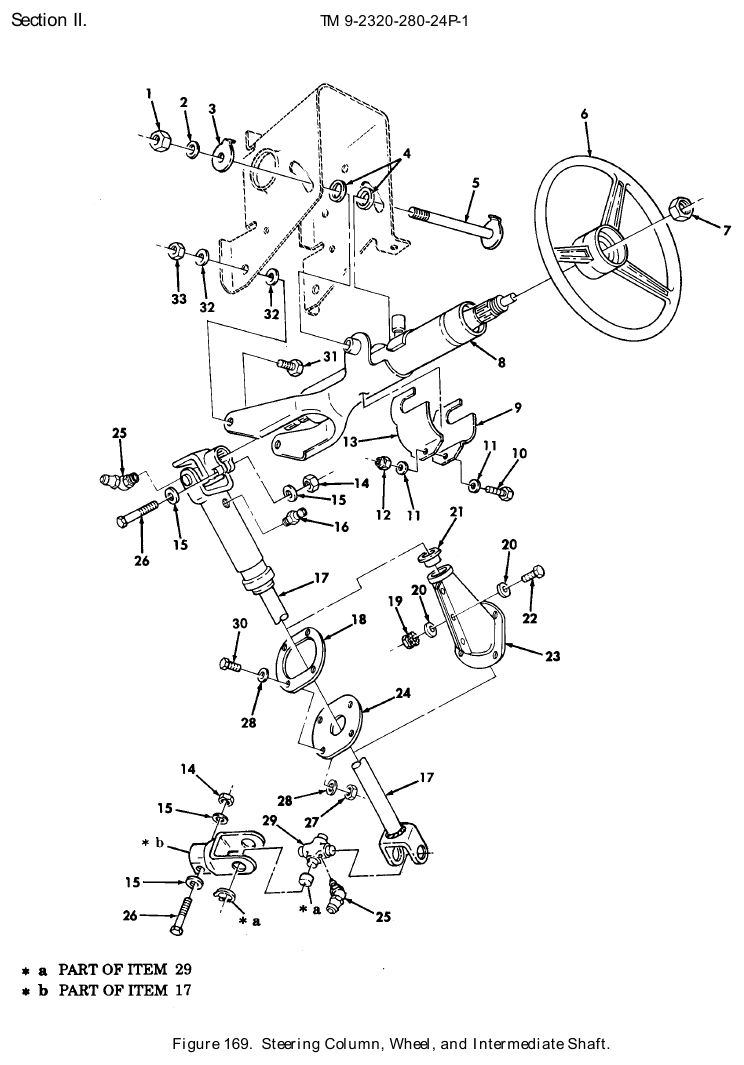

TM 9-2320-280-24P figure 169, Steering Column, Wheel, and Intermediate Shaft: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 PART OF KIT P/N 57K3205 Fits: All models	1	219 in stock
2	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All models	1	1,162 in stock
3	Key Washer NSN 5310-01-188-0745 · P/N 5585103 WASHER,KEY PART OF KIT P/N 57K3205 Fits: All models	1	119 in stock
4	Recessed Washer NSN 5310-01-188-1093 · P/N 12339308 WASHER,RECESSED USE WITH STEERING GEAR P/N 1419 Fits: All models	2	6 in stock
5	Straight Threaded Pin NSN 5315-01-201-3592 · P/N 12339310 PIN,STRAIGHT,THREAD PART OF KIT P/N 57K3205 Fits: All models	1	130 in stock
6	Steering Wheel NSN 2530-01-411-2729 · P/N 12446803 STEERING WHEEL Fits: All models	1	162 in stock $130.00our price Buy online ↗
7	Plain Hexagon Nut NSN 5310-00-126-3842 · P/N 7063812 NUT,PLAIN,HEXAGON 5/8-18 Fits: All models	1	5 in stock
8	Steering Column Housing NSN 2530-01-411-2735 · P/N 12446802 HOUSING,STEERING CO PART OF KIT P/N 57K3205 Fits: All models	1	54 in stock $395.74 per eachgov't list price
9	Steering Column Support NSN 2530-01-383-5740 · P/N 12342875 SUPPORT,STEERING CO USBL EFF 100, 000 AND ABOVE Fits: All A1 and A2 models, plus M1097, M1123	1	146 in stock
10	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00, USBL EFF 100,000 AND ABOVE Fits: All A1 and A2 models, plus M1097, M1123	1	559 in stock
11	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT USBL EFF 100,000 AND ABOVE Fits: All A1 and A2 models, plus M1097, M1123	2	2,325 in stock
12	Self-Locking Hexagon Nut NSN 5310-00-088-1251 · P/N M45913/1-4CG5C NUT,SELF-LOCKING,HE USBL EFF 100, 000 AND ABOVE Fits: All A1 and A2 models, plus M1097, M1123	1	1,902 in stock
13	Steering Column Support NSN 2530-01-384-7154 · P/N 12342876 SUPPORT,STEERING CO USBL EFF 100, 000 AND ABOVE Fits: All A1 and A2 models, plus M1097, M1123	1	286 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-840-6222 · P/N 8712289-4 NUT,SELF-LOCKING,HE 7/16-20 Fits: All models	2	We can source it
15	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: All models	4	170 in stock
16	Lubrication Fitting NSN 4730-00-172-0010 · P/N MS15002-1 FITTING,LUBRICATION Fits: All models	1	24 in stock
17	Propeller Shaft with Universal J NSN 2520-01-214-2565 · P/N 902-04-48-244 PROPELLER SHAFT WIT Fits: All models	1	2 in stock $610.23 per eachgov't list price
18	Plate Spacer NSN 5365-01-193-2951 · P/N 5582851 SPACER,PLATE USBL EFF 1 THRU 46161 Fits: All A0 models except M1097, plus M1121	1	41 in stock $30–$70 eachtypical
19	Plain Hexagon Nut NSN 5310-00-934-9764 · P/N MS35649-205 NUT,PLAIN,HEXAGON #10-24, USBL EFF 46162 AND ABOVE Fits: All models	3	24 in stock
20	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10, USBL EFF 46162 AND ABOVE Fits: All models	6	909 in stock
21	Sleeve Bearing NSN 2530-00-753-7285 · P/N 14L14-F NYLINER USBL EFF 46162 AND ABOVE Fits: All models	1	7 in stock
22	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4, USBL EFF 46162 AND ABOVE Fits: All models	3	287 in stock
23	Vehicular Components Boot NSN 2530-01-285-8381 · P/N SF-5597695 BOOT,VEHICULAR COMP USBL EFF 46162 AND ABOVE Fits: All models	1	69 in stock $25–$40 eachtypical
24	Plain Seal NSN 5330-01-209-7723 · P/N 5584384 SEAL,PLAIN USBL EFF 1 THRU 46161 Fits: All A0 models except M1097, plus M1121	1	37 in stock $25.99our price Buy online ↗
25	Lubrication Fitting NSN 4730-00-585-2653 · P/N 5311 FITTING,LUBRICATION Fits: All models	2	30 in stock
26	Machine Bolt NSN 5306-01-192-2207 · P/N 454977 BOLT,MACHINE 7/16-20 X 2.00 Fits: All models	2	We can source it
27	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K3205 Fits: All models	6	626 in stock
28	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	8	351 in stock
29	Universal Joint Vehicular Spider NSN 2520-00-352-2168 · P/N CPL6N8 SPIDER,UNIVERSAL JO Fits: All A0 models, plus M1121	2	61 in stock $30–$60 eachtypical
30	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 PART OF KIT P/N 57K3205 Fits: All models	4	559 in stock
31	Shoulder Screw NSN 5305-01-481-7254 · P/N 12342440 BOLT,SHOULDER 1/4-20 X 7/8,USE WITH STEERING GEAR P/N 1493 Fits: All A0 and A1 models, plus M1121	2	We can source it $55–$100 eachtypical
31	Cap Socket Head Screw NSN 5305-01-449-1983 · P/N 12447027 SCREW,CAP,SOCKET HE 5/16-18X.750, USE WITH STEERING GEAR P/N 12446802 PART OF KIT P/N 57K3205 Fits: All models	2	238 in stock
32	Flat Washer NSN 5310-01-257-7719 · P/N 5593235 WASHER,FLAT 5/16 Fits: All A0 and A1 models, plus M1121	2	95 in stock
32	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,USE WITH STEERING GEAR P/N 12446802 PART OF KIT P/N 57K3205 Fits: All A2 models, plus M1123	4	471 in stock
33	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A0 and A1 models, plus M1121	2	626 in stock
33	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,USE WITH STEERING GEAR P/N 12446802 PART OF KIT P/N 57K3205 Fits: All A2 models, plus M1123	2	354 in stock
