HMMWV Steering Linkage TM 9-2320-280-24P · Fig. 170

Every part in figure 170 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1401 Mechanical Steering Gear Assembly: 28 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

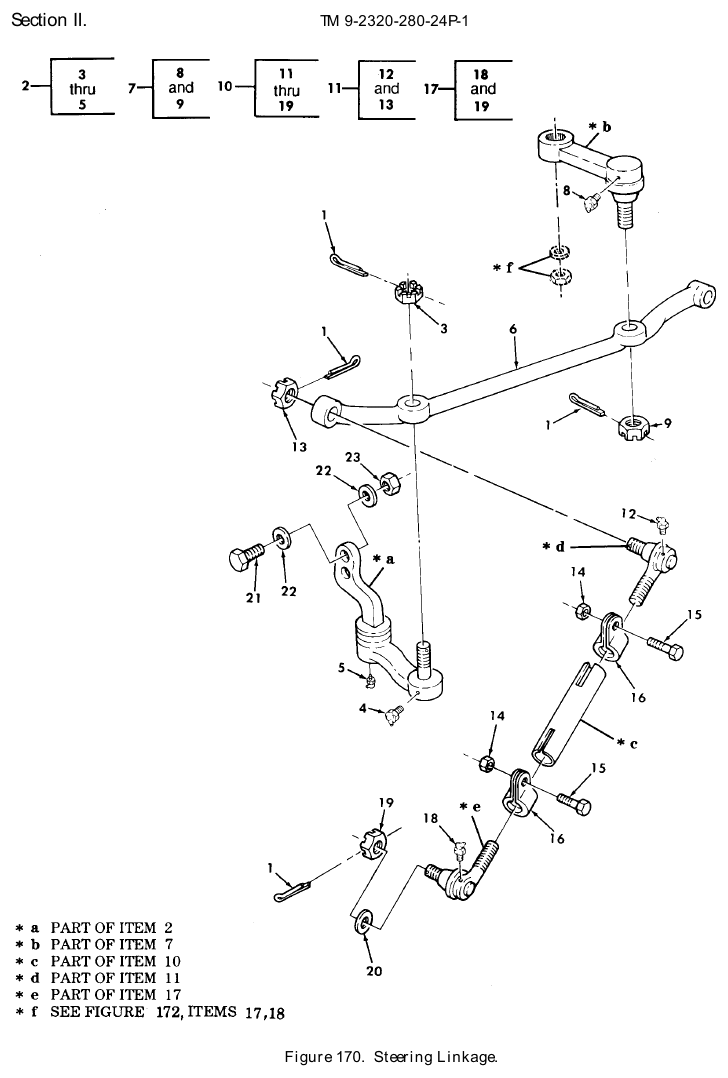

TM 9-2320-280-24P figure 170, Steering Linkage: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cotter Pin NSN 5315-00-012-0123 · P/N 137195 PIN,COTTER 1.8 X 1-1/4 Fits: All models	6	955 in stock
2	Steering Vehicular Idler Arm NSN 2530-01-249-1577 · P/N L-20-MA-133-A-11 IDLER ARM,STEERING, Fits: All A0 and A1 models, plus M1121	1	5,424 in stock $67.13our price Buy online ↗
2	Steering Vehicular Idler Arm NSN 2530-01-420-3839 · P/N 6004839 IDLER ARM,STEERING, Fits: All A2 models, plus M1123	1	306 in stock $101.92our price Buy online ↗
3	Plain Slotted Hexagon Nut NSN 5310-00-850-7004 · P/N MS35692-54 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: All models	1	8,940 in stock
4	Lubrication Fitting NSN 4730-00-050-4205 · P/N 9411030 FITTING,LUBRICATION 45 DEGREE ELBOW Fits: All A0 and A1 models, plus M1121	1	We can source it
5	Lubrication Fitting NSN 4730-00-050-4203 · P/N 9417901 FITTING,LUBRICATION Fits: All A0 and A1 models, plus M1121	1	298 in stock
5	Lubrication Fitting NSN 4730-00-050-4203 · P/N 9417901 FITTING,LUBRICATION Fits: All A2 models, plus M1123	2	298 in stock
6	Steering Drag Link NSN 2530-01-185-9651 · P/N 12338622 DRAG LINK,STEERING Fits: All A0 and A1 models, plus M1121	1	3,836 in stock $216.00our price Buy online ↗
6	Steering Drag Link NSN 2530-01-420-3837 · P/N 6003868 DRAG LINK,STEERING Fits: All A2 models, plus M1123	1	110 in stock $461.68 per eachgov't list price
7	Steering Gear Arm NSN 2530-01-252-8362 · P/N L-20-MA-132-A-11 ARM,STEERING GEAR Fits: All A0 and A1 models, plus M1121	1	537 in stock $89.50our price Buy online ↗
7	Steering Gear Arm NSN 2530-01-420-5180 · P/N 6004838 ARM,STEERING GEAR Fits: All A2 models, plus M1123	1	440 in stock $82.00our price Buy online ↗
8	Lubrication Fitting NSN 4730-00-050-4203 · P/N MS15001-1 FITTING,LUBRICATION Fits: All models	1	298 in stock
9	Plain Slotted Hexagon Nut NSN 5310-00-850-7004 · P/N MS35692-54 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: All models	1	8,940 in stock
10	Steering Tie Rod NSN 2530-01-194-2049 · P/N L-18-VT-5276-B-1 TIE ROD,STEERING L.H. AND R.H 1 UOC:AVY,A11,A13,A14,A15,A20,A24,A25, A26,A27,B16,B17,B18,HVY,H11,H13,H14, H15,H16,H17,H18,H20,H21,H24,H25,H26, H27,H28,MMM Fits: All models	2	44 in stock $308.70our price Buy online ↗
10	Steering Tie Rod NSN 2530-01-421-2563 · P/N 06005119 TIE ROD,STEERING Fits: All A2 models, plus M1123	2	32 in stock $285.00our price Buy online ↗
11	Steering Tie Rod End NSN 2530-01-189-2195 · P/N L-18-SV-5151-C-1 TIE ROD END,STEERIN R.H 2 Fits: All models	1	259 in stock $71.05our price Buy online ↗
12	Lubrication Fitting NSN 4730-00-050-4205 · P/N MS15001-3 FITTING,LUBRICATION R.H Fits: All models	1	We can source it
13	Plain Slotted Hexagon Nut NSN 5310-01-212-2213 · P/N 9428308 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: All models	1	1 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-241-6659 · P/N MS51943-37 NUT,SELF-LOCKING,HE 7/16-14 Fits: All models	2	196 in stock
15	Cap Hexagon Head Screw NSN 5305-01-211-7478 · P/N 9419079 SCREW,CAP,HEXAGON H 7/16-14 X 1.75 Fits: All models	2	We can source it
16	Loop Clamp NSN 5340-01-191-8161 · P/N L-18-CPS-5-A-10 CLAMP,LOOP L.H Fits: All models	2	877 in stock
17	Steering Tie Rod End NSN 2530-01-197-2160 · P/N L-18-SV-5150-C-1 TIE ROD END,STEERIN L.H 2 Fits: All models	1	303 in stock $103.58 per eachgov't list price
18	Lubrication Fitting NSN 4730-00-050-4205 · P/N MS15001-3 FITTING,LUBRICATION L.H Fits: All models	1	We can source it
19	Plain Slotted Hexagon Nut NSN 5310-01-212-2213 · P/N 9428308 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: All models	1	1 in stock
20	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8 Fits: All models	2	We can source it
21	Cap Hexagon Head Screw NSN 5305-00-004-3164 · P/N B1821BH044C475N SCREW,CAP,HEXAGON H 7/16-14 X 4.75 Fits: All models	2	We can source it
22	Flat Washer NSN 5310-00-809-4085 · P/N 9420022 WASHER,FLAT 7/16 Fits: All models	4	170 in stock
23	Self-Locking Hexagon Nut NSN 5310-01-150-4003 · P/N 9422299 NUT,SELF-LOCKING,HE 7/16-14 Fits: All models	2	251 in stock

Buy the 8 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
