HMMWV Power Steering Gear and Mounting Hardware TM 9-2320-280-24P · Fig. 171

Every part in figure 171 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1407 Power Steering Gear Assembly: 5 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

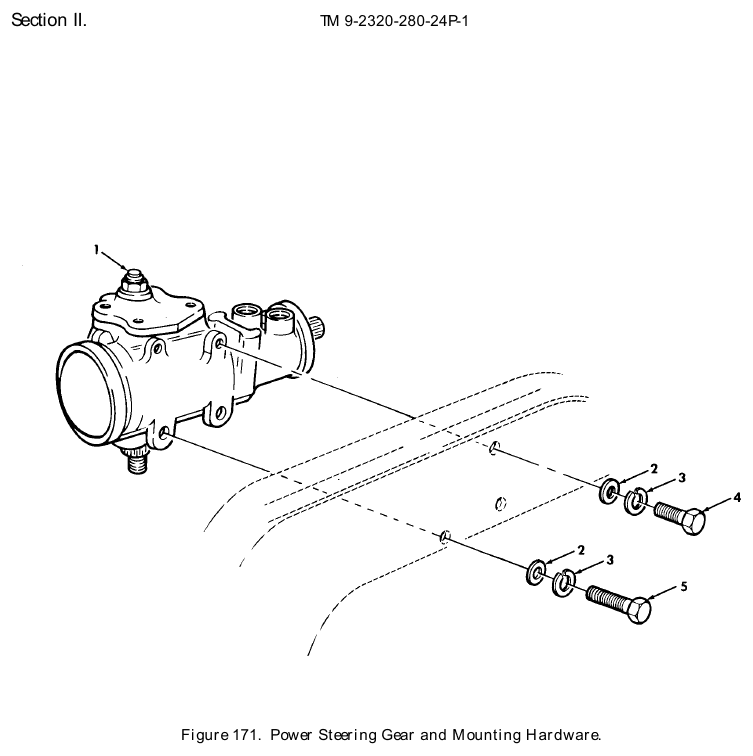

TM 9-2320-280-24P figure 171, Power Steering Gear and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Steering Gear NSN 2530-01-423-1796 · P/N 12460232 STEERING GEAR Fits: All models	1	160 in stock $825.00our price Buy online ↗
2	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: All models	3	170 in stock
3	Lock Washer NSN 5310-00-209-0965 · P/N MS35338-47 WASHER,LOCK 7/16 Fits: All models	3	2,764 in stock
4	Machine Bolt NSN 5306-01-254-6356 · P/N MS35764-861 BOLT,SELF-LOCKING 7/16-14 X 4.00 Fits: All models	1	We can source it
5	Cap Hexagon Head Screw NSN 5305-01-213-4149 · P/N 9430761 SCREW,CAP,HEXAGON H 7/16-14 X 5.25 Fits: All models	2	298 in stock
