HMMWV Power Steering Gear Assembly TM 9-2320-280-24P · Fig. 172

Every part in figure 172 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1407 Power Steering Gear Assembly: 25 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

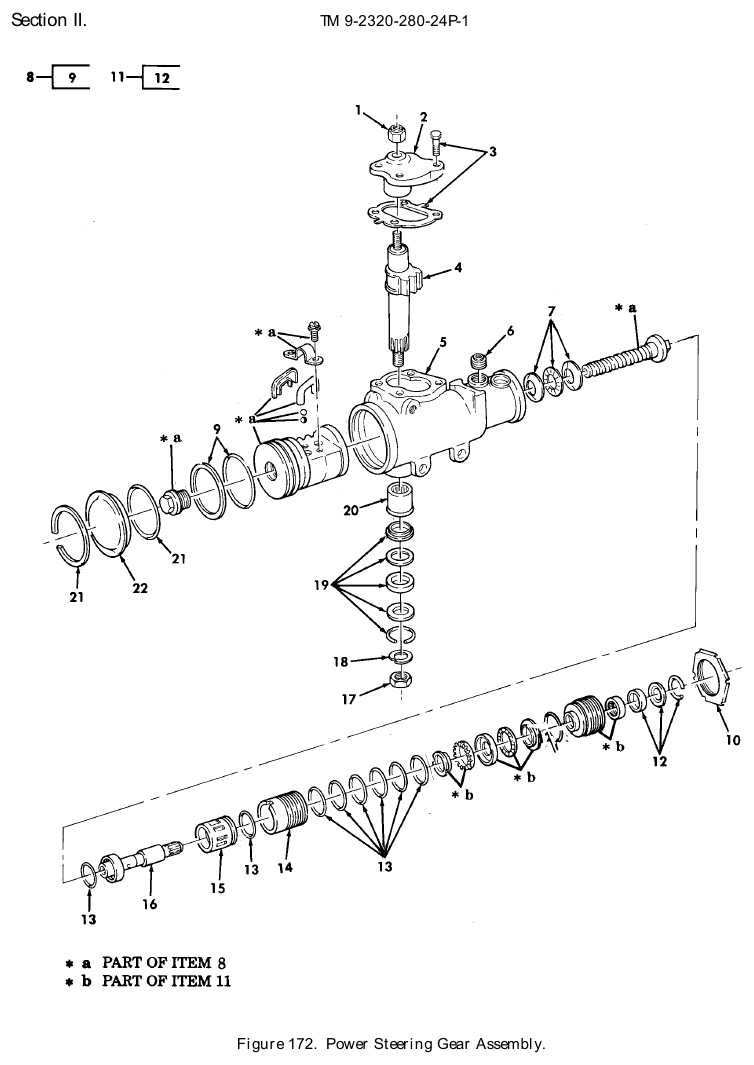

TM 9-2320-280-24P figure 172, Power Steering Gear Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Single Ball Sea Nut NSN 5310-01-038-8500 · P/N 5740444 NUT,SELF-LOCKING,SI Fits: All models	1	We can source it
2	Assembly Cover P/N 5740446 COVER,ASSEMBLY Fits: All models	1	Ask us
3	Seal Kit NSN 2530-01-097-7659 · P/N 5740448 SEAL KIT PART OF KIT P/N 57K0239 PART OF KIT P/N 57K3489 Fits: All models	1	32 in stock
4	Spur Gearshaft P/N 5740442 GEARSHAFT,SPUR USE WITH P/N 12339896 Fits: All A0 and A1 models, plus M1121	1	Ask us
4	Spur Gearshaft P/N 7818445 GEARSHAFT,SPUR USE WITH P/N 12460232 Fits: All models	1	Ask us
5	Steering Housing P/N 5740454 HOUSING,STEERING Fits: All A0 and A1 models, plus M1121	1	Ask us
5	Steering Housing P/N 26049931 HOUSING,STEERING USE WITH P/N 12460232 Fits: All models	1	Ask us
6	Safety Relief Valve Parts Kit NSN 4820-01-191-4262 · P/N 7834284 PARTS KIT,SAFETY RE PART OF KIT P/N 57K0242 Fits: All models	1	We can source it $55–$95 eachtypical
7	Bearing Assembly NSN 3110-01-040-6541 · P/N 5740476 BEARING ASSEMBLY PART OF KIT P/N 57K0242 Fits: All models	1	6 in stock $50–$90 per kittypical
8	Linear Actuating Cylin Parts Kit NSN 3040-01-123-4942 · P/N 5740462 PARTS KIT,LINEAR AC PART OF KIT P/N 57K0242 Fits: All models	1	1 in stock $1,296.15 per eachgov't list price
9	Steering Gear Parts Kit NSN 2530-01-033-1855 · P/N 5740465 PARTS KIT,STEERING PART OF KIT P/N 57K0240 Fits: All models	1	22 in stock $40–$80 eachtypical
10	Adjust Plug Loc Nut NSN 5310-01-038-8501 · P/N 5741145 NUT,ADJUST PLUG LOC Fits: All models	1	We can source it $25–$40 eachtypical
11	Steering Gear Parts Kit NSN 2530-01-033-4237 · P/N 7817725 PARTS KIT,STEERING PART OF KIT P/N 57K0242 Fits: All models	1	14 in stock $180.37 per eachgov't list price
12	Seal Replacement Mecha Parts Kit NSN 5330-00-843-9235 · P/N 5741892 PARTS KIT,SEAL REPL PART OF KIT P/N 57K0241 Fits: All models	1	4 in stock $40–$75 eachtypical
13	Steering Gear Parts Kit NSN 2530-00-960-9363 · P/N 5740499 PARTS KIT,STEERING PART OF KIT P/N 57K0241 Fits: All models	1	7 in stock $50–$95 eachtypical
14	Valve Body P/N 5740495 BODY,VALVE PART OF KIT P/N 7846626 Fits: All models	1	Ask us
15	Linear Valve P/N 5740497 VALVE,LINEAR,DIRECT PART OF KIT P/N 7846626 Fits: All models	1	Ask us
16	Shaft P/N 5740498 SHAFT,STEERING COLU PART OF KIT P/N 7846626 Fits: All models	1	Ask us
17	Plain Hexagon Nut NSN 5310-00-166-8567 · P/N 5667628 NUT,PLAIN,HEXAGON Fits: All models	1	315 in stock
18	Lock Washer NSN 5310-01-144-2779 · P/N 5550554 WASHER,LOCK 7/8 Fits: All models	1	We can source it
19	Pitman Shaft Seal NSN 5330-01-096-9650 · P/N 5740452 SEAL,PITMAN SHAFT PART OF KIT P/N 57K0239 USE WITH P/N 12339896 Fits: All A0 and A1 models, plus M1121	1	1 in stock $55–$105 eachtypical
19	Plain Encased Seal NSN 5330-01-324-8260 · P/N 26002516 SEAL,PLAIN ENCASED PART OF KIT P/N 57K3489 USE WITH P/N 12460232 Fits: All models	1	We can source it
20	Roller Needle Bearing NSN 3110-00-403-1488 · P/N 5740453 BEARING,ROLLER,NEED Fits: All models	1	We can source it $25–$60 eachtypical
21	Steering Gear Parts Kit NSN 2530-01-034-1715 · P/N 5740458 PARTS KIT,STEERING PART OF KIT P/N 57K0240 Fits: All models	1	30 in stock $25–$45 eachtypical
22	Protective Dust and Moi Cap-Plug NSN 5340-00-960-9340 · P/N 5740456 CAP-PLUG,PROTECTIVE Fits: All models	1	We can source it $80–$135 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
