HMMWV Power Steering Pump Support Bracket TM 9-2320-280-24P · Fig. 173

Every part in figure 173 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1410 Hydraulic Pump or Fluid Motor Assembly: 2 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

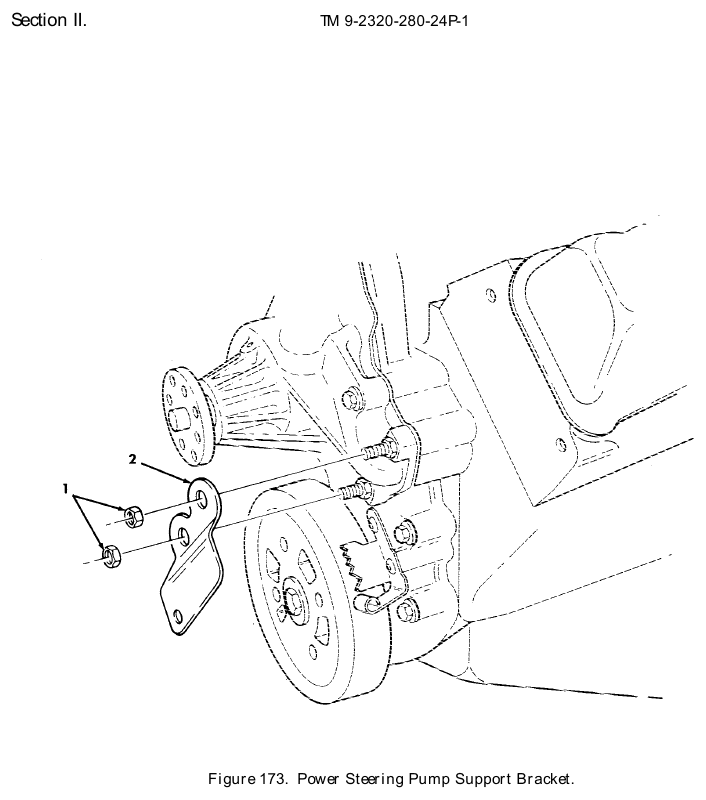

TM 9-2320-280-24P figure 173, Power Steering Pump Support Bracket: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

	Item	Part	Qty	On our shelf
	1	Plain Hexagon Nut NSN 5310-01-127-2456 · P/N 9145-105-00B NUT,PLAIN,HEXAGON 10-1.5 MM Fits: All A0 and A1 models, plus M1121	2	57 in stock
	2	Vehicular Components Bracket NSN 2590-01-207-3696 · P/N 12338774 BRACKET,VEHICULAR C FRONT Fits: All A0 and A1 models, plus M1121	1	24 in stock $25–$45 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
