HMMWV Power Steering Pump, Pulley, and Mounting Hardware TM 9-2320-280-24P · Fig. 174

Every part in figure 174 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1410 Hydraulic Pump or Fluid Motor Assembly: 15 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

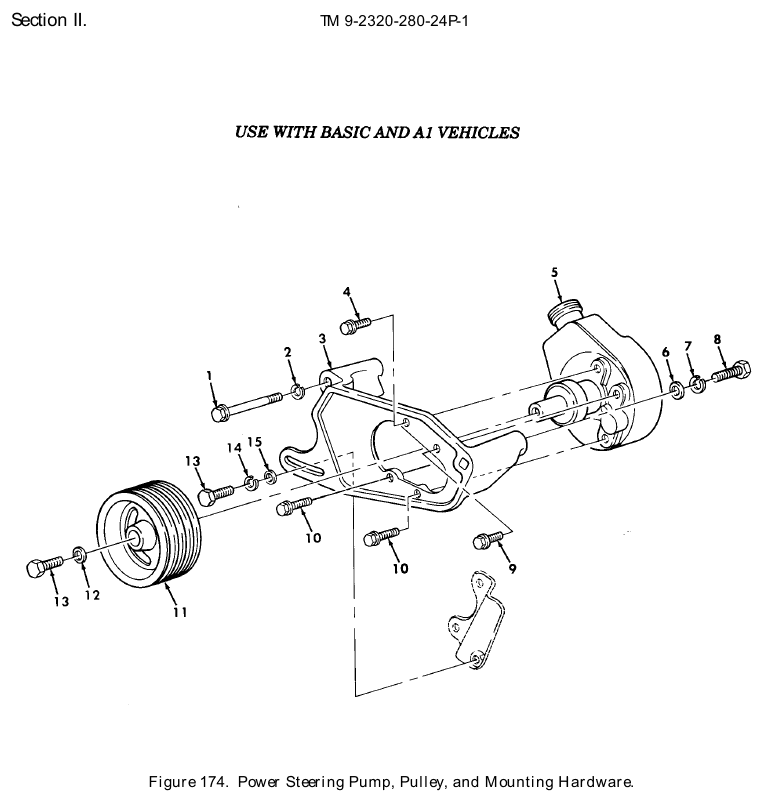

TM 9-2320-280-24P figure 174, Power Steering Pump, Pulley, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Bolt NSN 5306-01-264-3531 · P/N 5597252 BOLT,MACHINE 10-1.5 X 100MM Fits: All A0 and A1 models, plus M1121	1	We can source it
2	Lock Washer NSN 5310-01-206-7306 · P/N 11500207 WASHER,LOCK 10MM Fits: All A0 and A1 models, plus M1121	1	1 in stock
3	Engine Accessory Bracket NSN 5340-01-203-5661 · P/N 12338775 BRACKET,ENGINE ACCE Fits: All A0 and A1 models, plus M1121	1	12 in stock $85–$140 eachtypical
4	Machine Bolt NSN 5306-01-251-9190 · P/N G-11501940 BOLT,MACHINE 10-1.5 X 20 MM Fits: All A0 and A1 models, plus M1121	1	27 in stock $200.03 per eachgov't list price
5	Pump Assembly NSN 2530-01-168-7876 · P/N 12339495 PUMP ASSEMBLY,POWER Fits: All A0 and A1 models, plus M1121	1	172 in stock
6	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 Fits: All A0 and A1 models, plus M1121	1	2,218 in stock
7	Lock Washer NSN 5310-00-584-5272 · P/N ERNA245 WASHER,LOCK 1/2 Fits: All A0 and A1 models, plus M1121	1	833 in stock
8	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50 Fits: All A0 and A1 models, plus M1121	1	2,205 in stock
9	Cap Hexagon Head Screw NSN 5305-01-254-2521 · P/N 11500827 SCREW,CAP,HEXAGON H 10-1.5 X 16 MM Fits: All A0 and A1 models, plus M1121	1	100 in stock
10	Machine Bolt NSN 5306-01-254-2357 · P/N G-11500829 BOLT,MACHINE 10-1.5 X 25 MM Fits: All A0 and A1 models, plus M1121	2	260 in stock
11	Groove Pulley NSN 3020-01-210-1391 · P/N 12338773 PULLEY,GROOVE Fits: All A0 and A1 models, plus M1121	1	83 in stock $206.37 per eachgov't list price
12	Flat Washer NSN 5310-01-258-1536 · P/N 5593221 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	1	40 in stock
13	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: All A0 and A1 models, plus M1121	2	26 in stock
14	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A0 and A1 models, plus M1121	1	1,162 in stock
15	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: All A0 and A1 models, plus M1121	1	6 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
