Catalog › Parts manuals › TM 9-2320-280-24P › Hydraulic Pump or Fluid Motor Assembly › Fig. 175

HMMWV Power Steering Pump, Pulley, and Mounting Hardware TM 9-2320-280-24P · Fig. 175

Every part in figure 175 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1410 Hydraulic Pump or Fluid Motor Assembly: 10 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

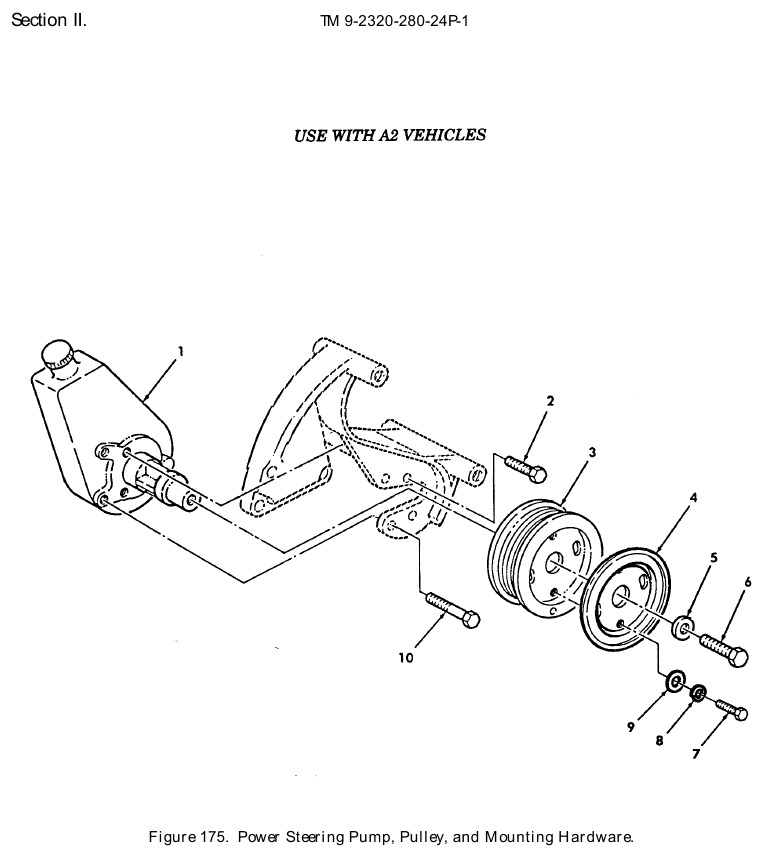

TM 9-2320-280-24P figure 175, Power Steering Pump, Pulley, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Power Steering Veh Pump Assembly NSN 2530-01-460-2439 · P/N RCSK18330 PUMP ASSEMBLY,POWER Fits: All A2 models, plus M1123	1	92 in stock $331.00our price Buy online ↗
2	Machine Bolt NSN 5306-01-243-4650 · P/N 11504596 BOLT,MACHINE Fits: All A2 models, plus M1123	2	We can source it
3	Groove Pulley NSN 3020-01-444-2311 · P/N RCSK18686 PULLEY,GROOVE Fits: All A2 models, plus M1123	1	5 in stock $95–$160 eachtypical
4	Mechanical Drive Guard NSN 3020-01-476-6520 · P/N 12469106 FLANGE,PULLEY Fits: All A2 models, plus M1123	1	We can source it $35–$75 eachtypical
5	Flat Washer NSN 5310-01-211-3811 · P/N 9417793 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	1	10 in stock
6	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	1	26 in stock
7	Cap Hexagon Head Screw NSN 5305-01-140-9118 · P/N B1821BH038C088N SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	2	We can source it
8	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK Fits: All A2 models, plus M1123	2	1,162 in stock
9	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT Fits: All A2 models, plus M1123	2	1,146 in stock $7.83our price Buy online ↗
10	Machine Bolt NSN 5306-01-185-7048 · P/N 11513606 BOLT,MACHINE Fits: All A2 models, plus M1123	2	9,070 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
