HMMWV Power Steering Pump, Pulley, and Mounting Parts (Serial Number 196901 and Above) TM 9-2320-280-24P · Fig. 175A

Every part in figure 175A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1410 Hydraulic Pump or Fluid Motor Assembly: 14 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

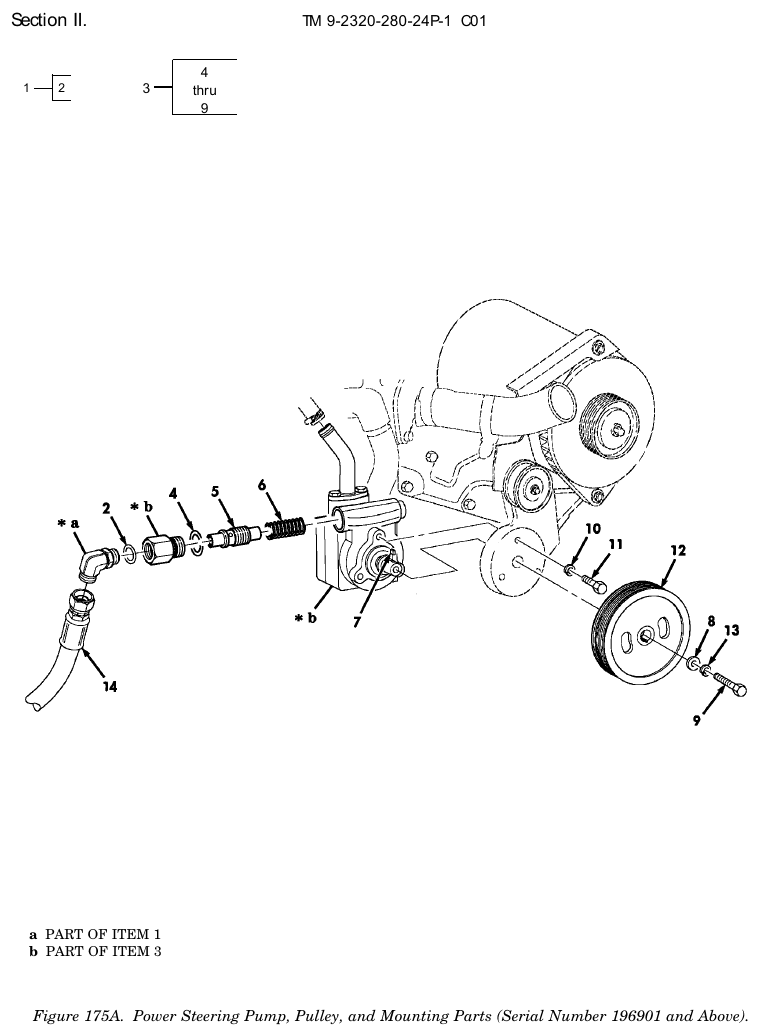

TM 9-2320-280-24P figure 175A, Power Steering Pump, Pulley, and Mounting Parts (Serial Number 196901 and Above): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Tube to Boss Elbow NSN 4730-01-358-8538 · P/N GG308-NP08-18 ELBOW,TUBE WITH O-RING Fits: All A2 models, plus M1123	1	We can source it $45–$90 eachtypical
2	O-Ring P/N FF90154-18 O-RING Fits: All A2 models, plus M1123	1	Ask us
3	Power Steering Veh Pump Assembly NSN 2530-01-491-2681 · P/N 1200359 PUMP,POWER STEER Fits: All A2 models, plus M1123	1	64 in stock $546.99our price Buy online ↗
4	O-Ring P/N HE260128 O-RING PART OF KIT P/N 5716414 Fits: All A2 models, plus M1123	1	Ask us
5	Valve Assembly P/N HE1250079/100 VALVE ASSEMBLY PART OF KIT P/N 5716414 Fits: All A2 models, plus M1123	1	Ask us
6	Spring P/N HE11595 SPRING PART OF KIT P/N 5716414 Fits: All A2 models, plus M1123	1	Ask us
7	Woodruff Key NSN 5315-00-616-5514 · P/N MS35756-6 KEY.WOODRUFF Fits: All A2 models, plus M1123	1	1,992 in stock
8	Flat Washer NSN 5310-01-491-2014 · P/N HE206000 SPACER Fits: All A2 models, plus M1123	1	We can source it
9	Cap Hexagon Head Screw NSN 5305-01-491-2143 · P/N HE1290019 SCREW Fits: All A2 models, plus M1123	1	We can source it $25–$50 eachtypical
10	Lock Washer NSN 5310-01-478-5620 · P/N B1821HRC2080 WASHER,LOCK Fits: All A2 models, plus M1123	3	We can source it
11	Cap Hexagon Head Screw NSN 5305-01-159-0065 · P/N 1051759 SCREW,CAP HEXAGON H M8-1.5 X 25 Fits: All A2 models, plus M1123	3	We can source it
12	Groove Pulley NSN 3020-01-488-5635 · P/N 12469471 PULLEY,GROOVE Fits: All A2 models, plus M1123	1	63 in stock $140.00our price Buy online ↗
13	Lock Washer NSN 5310-00-012-0214 · P/N 120214 WASHER,LOCK Fits: All A2 models, plus M1123	1	We can source it
14	Nonmetallic Hose Assembly NSN 4720-01-488-6156 · P/N 12469489 HOSE ASSEMBLY,NONME Fits: All A2 models, plus M1123	1	2 in stock $65–$110 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
