HMMWV Power Steering Pump Assembly TM 9-2320-280-24P · Fig. 176

Every part in figure 176 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1410 Hydraulic Pump or Fluid Motor Assembly: 14 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

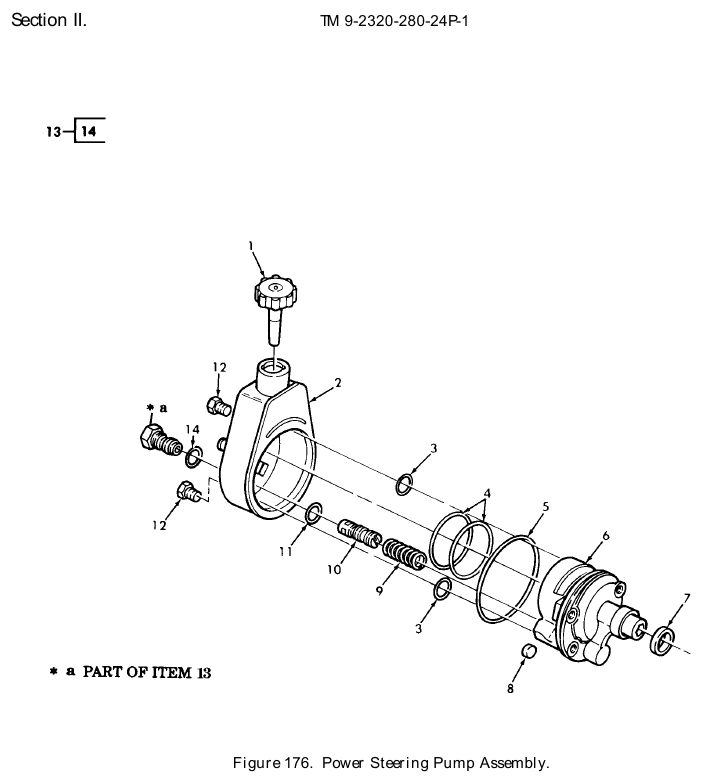

TM 9-2320-280-24P figure 176, Power Steering Pump Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Liquid Level Gage Rod-Cap NSN 6680-01-152-2845 · P/N 7834183 GAGE ROD-CAP,LIQUID Fits: All models	1	1 in stock $25–$40 eachtypical
2	Reservoir Assembly P/N 5740430 RESERVOIR ASSEMBLY Fits: All models	1	Ask us
3	Seal P/N 5740429 SEAL PART OF KIT P/N 7848522 Fits: All models	2	Ask us
4	Seal Ring P/N 5740464 RING,SEAL PART OF KIT P/N 7848522 Fits: All models	2	Ask us
5	Seal P/N 5740431 SEAL PART OF KIT P/N 7848522 Fits: All models	1	Ask us
6	Liquid Pump Housing NSN 4320-01-155-5145 · P/N 5740432 HOUSING,LIQUID PUMP Fits: All models	1	1 in stock
7	Seal P/N 5741746 SEAL PART OF KIT P/N 7848522 Fits: All models	1	Ask us
8	Permanent Magnet P/N 5692682 MAGNET,PERMANENT PART OF KIT P/N 7848522 Fits: All models	1	Ask us
9	Helical Compression Spring NSN 5360-01-149-6308 · P/N 5688037 SPRING,HELICAL,COMP Fits: All models	1	We can source it
10	Relief Valve Cartridge NSN 4820-01-083-7993 · P/N 5740433 CARTRIDGE,RELIEF VA Fits: All models	1	3 in stock
11	Gasket NSN 5330-00-848-4439 · P/N 5688049 GASKET PART OF KIT P/N 7848522 Fits: All models	1	We can source it $45–$85 eachtypical
12	Cap Hexagon Head Screw NSN 5305-01-162-9713 · P/N 7830239 SCREW,CAP,HEXAGON H Fits: All models	2	60 in stock $30–$60 eachtypical
13	Fluid Pump Connector NSN 4320-01-155-5153 · P/N 7830913 CONNECTOR,FLUID,PUM Fits: All models	1	31 in stock $35–$75 eachtypical
14	O-Ring NSN 5331-01-157-1884 · P/N 5740436 O-RING PART OF KIT P/N 7848522 Fits: All models	1	We can source it $25–$40 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
