HMMWV Remote Power Steering Reservoir and Hoses (Serial Number 196901 and Above) TM 9-2320-280-24P · Fig. 176A

Every part in figure 176A of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1410 Hydraulic Pump or Fluid Motor Assembly: 25 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

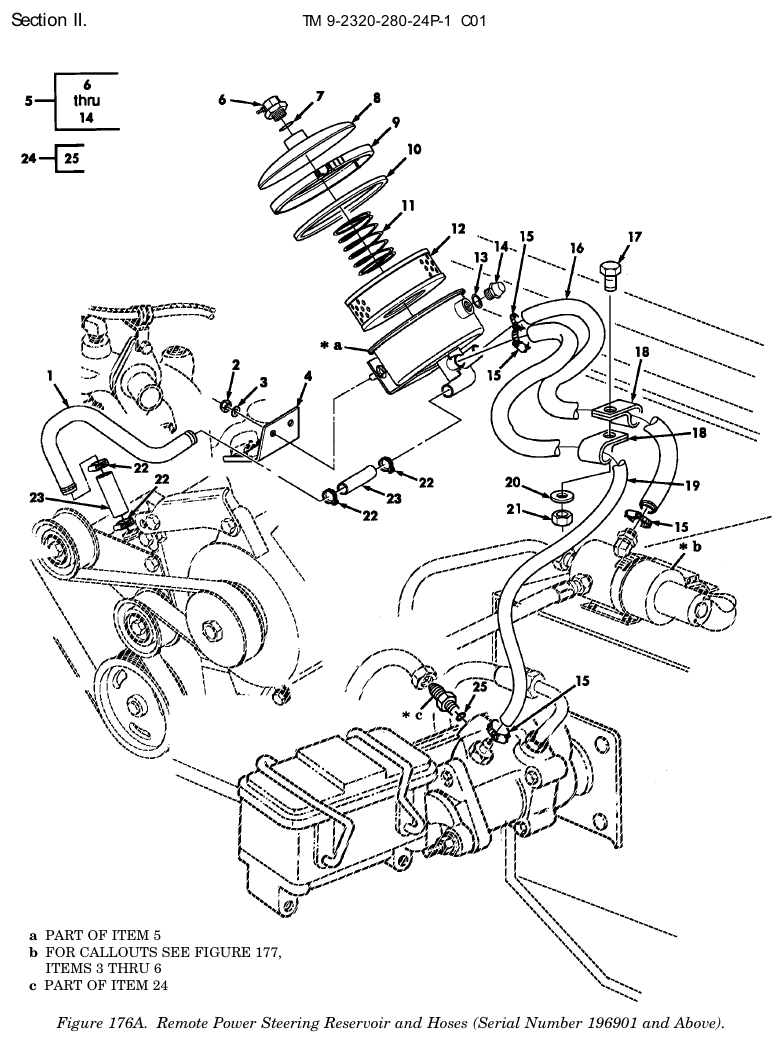

TM 9-2320-280-24P figure 176A, Remote Power Steering Reservoir and Hoses (Serial Number 196901 and Above): exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Bent Metallic Tube NSN 4710-01-488-6143 · P/N 12469478 TUBE,BENT METALLIC Fits: All A2 models, plus M1123	1	179 in stock $35–$75 eachtypical
2	Plain Hexagon Nut NSN 5310-00-409-3355 · P/N 120376 NUT,PLAIN HEXAGON Fits: All A2 models, plus M1123	2	62 in stock
3	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: All A2 models, plus M1123	2	2,036 in stock
4	Mounting Bracket NSN 5340-01-497-2334 · P/N 12469488-1 BRACKET,MOUNTING Fits: All A2 models, plus M1123	1	We can source it $55–$90 eachtypical
5	Pump Assembly Power ST Reservoir NSN 2530-01-488-6147 · P/N 94252A RESERVOIR,PUMP ASSEM Fits: All A2 models, plus M1123	1	5 in stock $387.10our price Buy online ↗
6	Tube to Hose Elbow NSN 4730-01-506-3179 · P/N Q348148 CAP,HOSE Fits: All A2 models, plus M1123	1	We can source it $50–$95 eachtypical
7	O-Ring NSN 5331-01-505-7218 · P/N Q79870 O-RING Fits: All A2 models, plus M1123	1	We can source it
8	Access Cover NSN 5340-01-505-9463 · P/N Q206141 COVER,ACCESS Fits: All A2 models, plus M1123	1	We can source it
9	Loop Clamp NSN 5340-01-506-1892 · P/N Q186425 CLAMP,LOOP Fits: All A2 models, plus M1123	1	We can source it $30–$65 eachtypical
10	Gasket NSN 5330-01-505-7214 · P/N Q79699 GASKET Fits: All A2 models, plus M1123	1	We can source it
11	Spring P/N Q63330 SPRING,HELICAL COMP Fits: All A2 models, plus M1123	1	Ask us
12	Fluid Filter Element NSN 4330-01-506-2918 · P/N 870889A FILTER,ELEMENT FLUI Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
13	O-Ring NSN 5331-01-380-2118 · P/N Q79869 O-RING Fits: All A2 models, plus M1123	1	44 in stock
14	Sight Liquid Indicator NSN 6680-01-482-4995 · P/N DP3-01-01 SIGHT GLASS Fits: All A2 models, plus M1123	1	We can source it $25–$40 eachtypical
15	Hose Clamp NSN 4730-00-024-3971 · P/N 6706 CLAMP,HOSE Fits: All A2 models, plus M1123	4	6 in stock
16	Nonme Make From Hose Hose P/N 12338330-22.5 HOSE,NONME MAKE FROM HOSE,P/N 6490610019,22.50 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
17	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP HEXAGON H Fits: All A2 models, plus M1123	1	98 in stock
18	Loop Clamp NSN 5340-00-088-1254 · P/N MS21333-104 CLAMP,LOOP Fits: All A2 models, plus M1123	2	40 in stock
19	Hose P/N 12338330-19.5 HOSE,NONME MAKE FROM HOSE P/N 6490610019,19.50 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
20	Flat Washer NSN 5310-01-103-6042 · P/N 120392 WASHER,FLAT Fits: All A2 models, plus M1123	1	40 in stock
21	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING Fits: All A2 models, plus M1123	1	626 in stock
22	Hose Clamp NSN 4730-00-908-3194 · P/N 20008S CLAMP,HOSE 176A-1 Fits: All A2 models, plus M1123	4	536 in stock
23	Nonmetallic Hose NSN 4720-01-505-4702 · P/N 9781210307 HOSE,NONMETALLIC Fits: All A2 models, plus M1123	2	2 in stock
24	Straight Tube to Boss Adapter NSN 4730-01-493-4056 · P/N FF3323-0706-259 ADAPTER,STRAIGHT,TU Fits: All A2 models, plus M1123	1	We can source it $30–$70 eachtypical
25	O-Ring NSN 5331-00-580-6586 · P/N 12340395 O-RING Fits: All A2 models, plus M1123	1	114 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
