HMMWV Power Steering and Hydro-Booster Hydraulic Lines and Fittings TM 9-2320-280-24P · Fig. 177

Every part in figure 177 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1411 Hoses, Lines, Fittings: 17 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

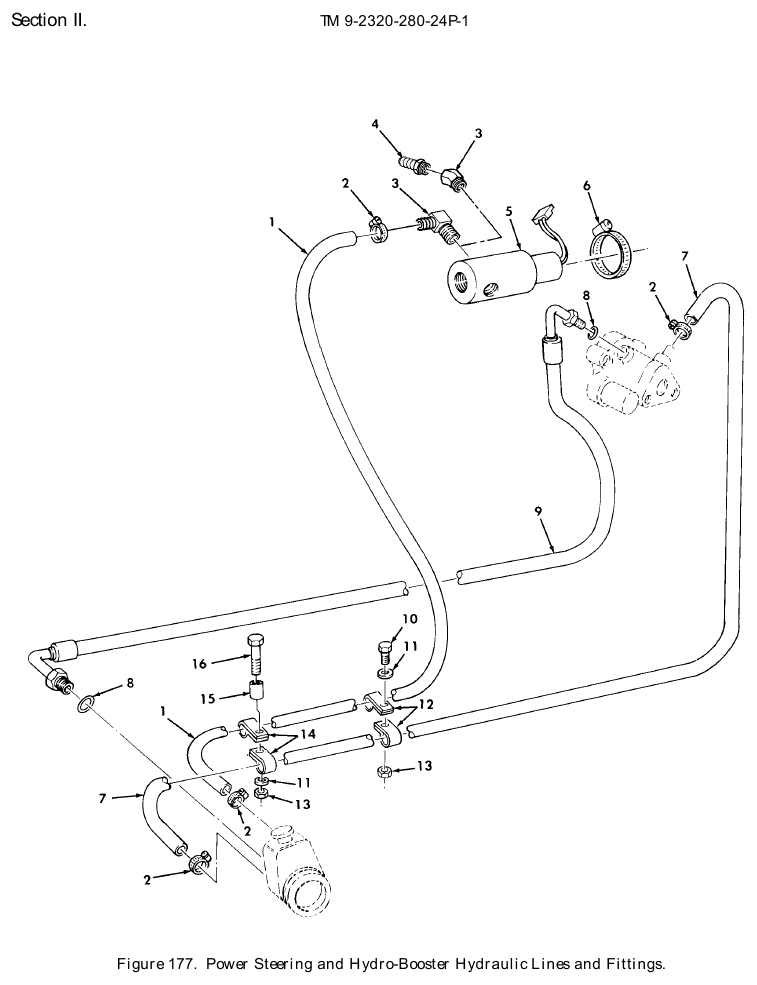

TM 9-2320-280-24P figure 177, Power Steering and Hydro-Booster Hydraulic Lines and Fittings: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hose Make From Hose P/N 5590023 HOSE MAKE FROM HOSE,P/N 6490610019, 23 INCHES LONG Fits: All models	1	Ask us
2	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE Fits: All models	4	9 in stock
3	Pipe to Hose Elbow NSN 4730-00-789-0951 · P/N 110-03604 ELBOW,PIPE TO TUBE Fits: All A0 models except M997; all A1 models except M997A1, plus M1121	1	1 in stock
3	Pipe Elbow NSN 4730-00-911-5707 · P/N 454097 ELBOW,PIPE TO TUBE Fits: All A2 models, plus M997, M997A1, M1123	1	11 in stock
4	Straight Pipe to Hose Adapter NSN 4730-01-481-6278 · P/N 12460305 ADAPTER,STRAIGHT,P Fits: All A2 models, plus M997, M997A1, M1123	1	We can source it
5	Solenoid Valve NSN 4810-01-192-5817 · P/N 12339982 VALVE,SOLENOID Fits: All models	1	3 in stock $425.00our price Buy online ↗
6	Hose Clamp NSN 4730-00-204-3491 · P/N C32P CLAMP,HOSE Fits: All models	1	1 in stock
7	Nonmetallic Make From Hose Hose P/N 5590024 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019,41 INCHES LONG Fits: All models	1	Ask us
8	O-Ring NSN 5331-00-580-6586 · P/N 2938-2 O-RING Fits: All models	2	114 in stock
9	Nonmetallic Hose Assembly NSN 4720-01-212-3531 · P/N 12338957 HOSE ASSEMBLY,NONME Fits: All models	1	9 in stock $127.46 per eachgov't list price
10	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All models	1	98 in stock
11	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	2	2,325 in stock
12	Loop Clamp NSN 5340-00-725-5280 · P/N MS21333-125 CLAMP,LOOP Fits: All models	2	40 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	2	626 in stock
14	Loop Clamp NSN 5340-01-153-9425 · P/N COV-1109Z1 CLAMP,LOOP Fits: All models	2	4 in stock $29.39our price Buy online ↗
15	Sleeve Spacer NSN 5365-01-211-5094 · P/N 12340486 SPACER,SLEEVE Fits: All models	1	We can source it
16	Machine Bolt NSN 5306-01-254-2359 · P/N 5593024 BOLT,MACHINE 1/4-20 X 2.50 Fits: All models	1	96 in stock $25–$40 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
