Catalog › Parts manuals › TM 9-2320-280-24P › Hoses, Lines, Fittings › Fig. 178

HMMWV Power Steering Oil Cooler, Hydro-Booster, and Fan Clutch Hydraulic Lines and Fittings TM 9-2320-280-24P · Fig. 178

Every part in figure 178 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1411 Hoses, Lines, Fittings: 29 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

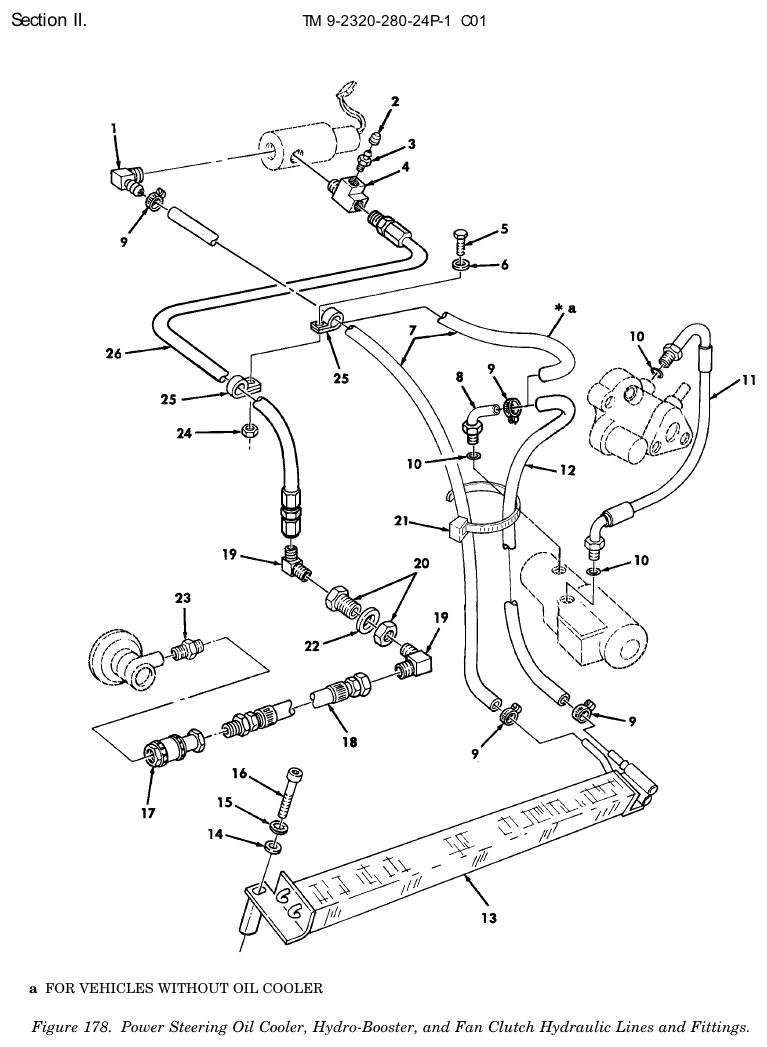

TM 9-2320-280-24P figure 178, Power Steering Oil Cooler, Hydro-Booster, and Fan Clutch Hydraulic Lines and Fittings: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Pipe to Hose Elbow NSN 4730-00-789-0951 · P/N 110-03604 ELBOW,PIPE TO HOSE Fits: All models	1	1 in stock
2	Protective Dust and Moisture Cap NSN 5340-01-473-4031 · P/N 12469217 CAP,PROTECTIVE DUST Fits: All models	1	We can source it
3	Bleeder Hydraulic System Valve NSN 4820-01-473-3580 · P/N 12469216 VALVE,BLEEDER HYDRA Fits: All models	1	We can source it
4	Fixed Electrolytic Capacitor NSN 5910-01-473-8047 · P/N 12469215 TEE,PIPE Fits: All models	1	We can source it $100.16 per eachgov't list price
5	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H Fits: All models	1	98 in stock
6	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: All models	1	2,325 in stock
7	Nonmetallic Make From Hose Hose P/N 5590025 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019,27 INCHES LONG, USBL EFF 1 THRU 99,999 Fits: All A0 models except M1037, M1097, plus M1121	1	Ask us
7	Nonmetallic Make From Hose Hose P/N 12338330-7 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019,45 INCHES LONG, USE WITH COOLER P/N 12342142 Fits: All models	1	Ask us
8	Metal Tube Assembly NSN 4710-01-209-4628 · P/N 12338593 TUBE ASSEMBLY,METAL Fits: All models	1	We can source it quote only $25–$50 eachtypical
9	Hose Clamp NSN 4730-00-877-6298 · P/N 8486066 CLAMP,HOSE Fits: All models	4	We can source it
10	O-Ring NSN 5331-00-580-6586 · P/N 12340395 O-RING Fits: All models	3	114 in stock
11	Nonmetallic Hose Assembly NSN 4720-01-213-1574 · P/N FB9778-01 HOSE ASSEMBLY,NONME Fits: All models	1	10 in stock $85–$140 per assemblytypical
12	Nonmetallic Make From Hose Hose P/N 12338330-6 HOSE,NONMETALLIC MAKE FROM HOSE,P/N 6490610019,29 INCHES LONG, USE WITH COOLER P/N 12342142 Fits: All models	1	Ask us
13	Fluid Transmission Cooler NSN 2520-01-316-2630 · P/N 12342142 COOLER,FLUID,TRANSM Fits: All models	1	95 in stock $206.00our price Buy online ↗
14	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT Fits: All models	2	1,368 in stock
15	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: All models	2	2,036 in stock
16	Cap Socket Head Screw NSN 5305-00-992-6143 · P/N MS16995-72 SCREW,CAP,SOCKET HE Fits: All models	2	We can source it
17	Quick Disconnect Coupling Half NSN 4730-01-399-0241 · P/N 12342947 COUPLING HALF,QUICK USE WITH HOSE 12338591-1 Fits: All models	1	We can source it $55–$95 eachtypical
18	Nonmetallic Hose Assembly NSN 4720-01-189-0853 · P/N 12338591 HOSE ASSEMBLY,NONME Fits: All A0 and A1 models, plus M1121	1	27 in stock $49.50our price Buy online ↗
18	Nonmetallic Hose Assembly NSN 4720-01-394-3747 · P/N 12338591-1 HOSE ASSEMBLY,NONME USE WITH COUPLING 12342947 Fits: All models	1	We can source it $35–$70 eachtypical
19	Pipe to Tube Elbow NSN 4730-00-366-3011 · P/N 49X4X4 ELBOW,PIPE TO TUBE Fits: All models	2	1 in stock
20	Pipe Coupling NSN 4730-00-897-5497 · P/N W21204 COUPLING,PIPE Fits: All models	1	We can source it
21	Tie Down Electrical Compon Strap NSN 5975-00-985-6630 · P/N MS3367-3-0 STRAP,TIEDOWN,ELECT Fits: All models	1	269 in stock
22	Flat Washer NSN 5310-00-809-8533 · P/N MS27183-23 WASHER,FLAT Fits: All models	1	41 in stock
23	Pipe Nipple NSN 4730-00-278-3721 · P/N 2-2 130137B NIPPLE,PIPE USE WITH HOSE P/N P/N 12338591 Fits: All models	1	We can source it
23	Straight Pipe to Tube Adapter NSN 4730-00-900-3296 · P/N 248X4 ADAPTER,STRAIGHT,PI USE WITH HOSE P/N 12338591 Fits: All models	1	33 in stock
24	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: All models	1	626 in stock
25	Loop Clamp NSN 5340-00-725-5280 · P/N MS21333-125 CLAMP,LOOP Fits: All models	2	40 in stock
26	Nonmetallic Hose Assembly NSN 4720-01-470-3076 · P/N 12469061 HOSE ASSEMBLY,NONME Fits: All models	1	26 in stock $50–$85 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
