HMMWV Frame Assembly, Body Mount Brackets, and Transmission Crossmember TM 9-2320-280-24P · Fig. 179

Every part in figure 179 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 15 Frame, Towing Attachments, Drawbars and Articulation System: 30 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

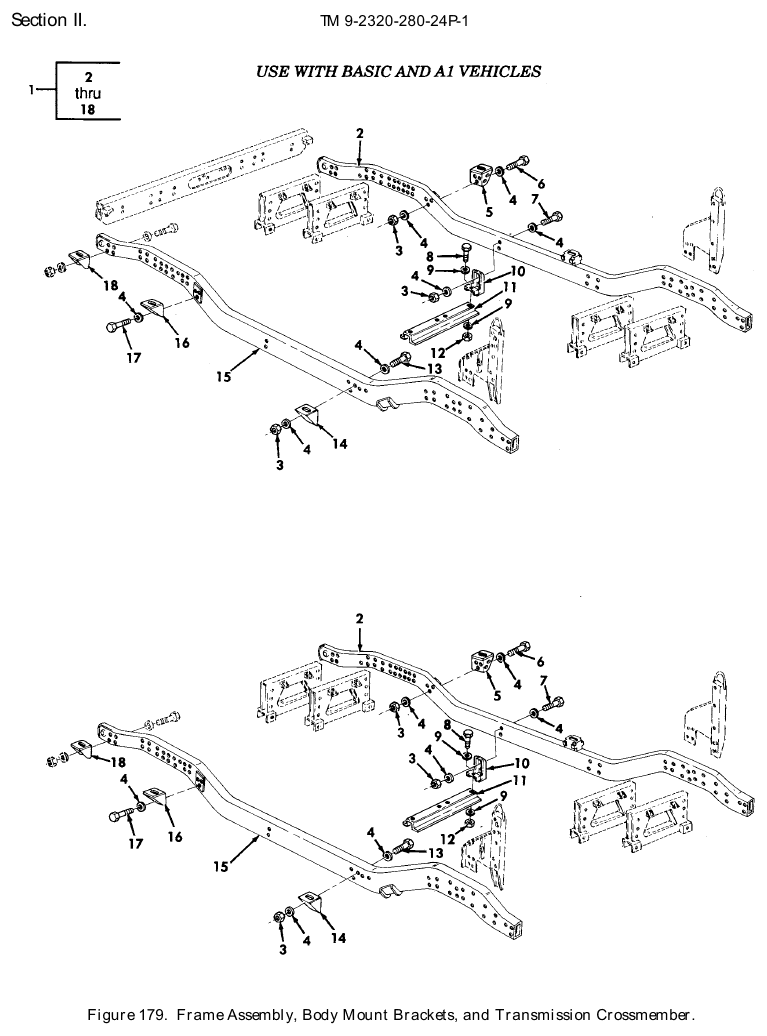

TM 9-2320-280-24P figure 179, Frame Assembly, Body Mount Brackets, and Transmission Crossmember: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Frame Assembly P/N 12338234-1 FRAME ASSEMBLY Fits: M1042	1	Ask us
1	Frame Assembly Usbl Eff P/N 12338233-1 FRAME ASSEMBLY USBL EFF 1 THRU 99, 999 Fits: M1026, M1038, M1046	1	Ask us
1	Frame Assembly P/N 12338233-2 FRAME ASSEMBLY Fits: M966, M998, M1025, M1035, M1043, M1045 and 1 more	1	Ask us
1	Frame Assembly Usbl Eff P/N 12338233-3 FRAME ASSEMBLY USBL EFF 1 THRU 99, 999 Fits: M1044	1	Ask us
1	Frame Asembly P/N 12338233-4 FRAME ASEMBLY Fits: M1043	1	Ask us
1	Frame Assembly Usbl Eff P/N 12338233-5 FRAME ASSEMBLY USBL EFF 100,000 AND ABOVE Fits: M1026, M1038, M1044, M1046	1	Ask us
1	Frame Assembly Complete P/N 12338233-6 FRAME ASSEMBLY COMPLETE, USBL EFF 100,000 AND ABOVE Fits: M1044	1	Ask us
1	Frame Assembly P/N 12338234 FRAME ASSEMBLY Fits: M996, M997, M1037	1	Ask us
1	Frame Assembly Comp P/N 12342972-1 FRAME ASSEMBLY COMP Fits: M966A1, M998A1, M1025A1, M1035A1, M1043A1, M1045A1	1	Ask us
1	Frame Assembly P/N 12342972-2 FRAME ASSEMBLY Fits: M1026A1, M1038A1, M1044A1, M1046A1	1	Ask us
1	Frame Assembly P/N 12446978-1 FRAME ASSEMBLY Fits: M997A2, M1097A2	1	Ask us
1	Frame Assembly P/N 12342503 FRAME ASSEMBLY Fits: M996A1, M997A1, M1097, M1097A1	1	Ask us
1	Frame Assembly Comp P/N 12342972-1 FRAME ASSEMBLY COMP Fits: M966A1, M998A1, M1025A1, M1035A1, M1043A1, M1045A1	1	Ask us
2	Fram Rail Assembly NSN 2510-01-249-1599 · P/N 12338246 RAIL ASSEMBLY,FRAM L.H Fits: All A0 and A1 models, plus M1121	1	We can source it $2,516.83 per assemblygov't list price
3	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A0 and A1 models, plus M1121	12	1,713 in stock
4	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: All A0 and A1 models, plus M1121	27	7 in stock
5	Angle L.h Bracket NSN 5340-01-249-1576 · P/N 12338187-1 BRACKET,ANGLE L.H Fits: All A0 models, plus M1121	1	We can source it
6	Cap Hexagon Head Screw NSN 5305-00-071-2082 · P/N B1821BH050C475N SCREW,CAP,HEXAGON H 1/2-13 X 4.75 Fits: All A0 and A1 models, plus M1121	3	55 in stock
7	Cap Hexagon Head Screw NSN 5305-01-185-7122 · P/N 5591781 SCREW,CAP,HEXAGON H 1/2-13 X 4.25 Fits: All A0 and A1 models, plus M1121	4	We can source it
8	Machine Bolt NSN 5306-01-253-4426 · P/N MS35764-887 BOLT,SELF-LOCKING 9/16-12 X 1.50 Fits: All A0 and A1 models, plus M1121	2	We can source it
9	Flat Washer NSN 5310-00-068-5285 · P/N MS27183-20 WASHER,FLAT 9/16 Fits: All A1 models, plus M996, M997, M1025, M1026, M1035, M1037 and 7 more	4	810 in stock
10	Vehicular Components Bracket NSN 2590-01-186-0863 · P/N 12338185 BRACKET,VEHICULAR C Fits: All A0 and A1 models, plus M1121	2	281 in stock $144.56 per eachgov't list price
11	Structural Vehicul Frame Section NSN 2510-01-175-7221 · P/N 12338147 FRAME SECTION,STRUC Fits: All A0 and A1 models, plus M1121	1	5 in stock $70–$115 eachtypical
12	Plain Hexagon Nut NSN 5310-00-763-8919 · P/N MS51967-18 NUT,PLAIN,HEXAGON 9/16-12 Fits: All A0 and A1 models, plus M1121	2	627 in stock
13	Cap Hexagon Head Screw NSN 5305-00-071-2081 · P/N B1821BH050C450N SCREW,CAP,HEXAGON H R.H. 1/2-13 X 4.50 Fits: All A0 and A1 models, plus M1121	5	43 in stock
14	Angle Bracket NSN 5340-01-185-8620 · P/N 12338178 BRACKET,ANGLE FRONT,R.H Fits: All A0 and A1 models, plus M1121	1	We can source it $85–$140 eachtypical
15	Structural Frame NSN 2510-01-249-1600 · P/N 12338247 FRAME,STRUCTURAL,VE R.H Fits: All A0 and A1 models, plus M1121	1	We can source it quote only
16	Angle Bracket NSN 5340-01-249-1575 · P/N 5594572 BRACKET,ANGLE R.H Fits: All A0 models, plus M1121	1	We can source it $55–$100 eachtypical
17	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 Fits: All A0 and A1 models, plus M1121	3	296 in stock
18	Angle Bracket NSN 5340-01-190-0333 · P/N 5582763 BRACKET,ANGLE REAR Fits: All A0 and A1 models, plus M1121	2	2 in stock $65–$105 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
