HMMWV Frame Assembly, Body Mount Brackets, and Transmission Crossmember TM 9-2320-280-24P · Fig. 180

Every part in figure 180 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 28 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

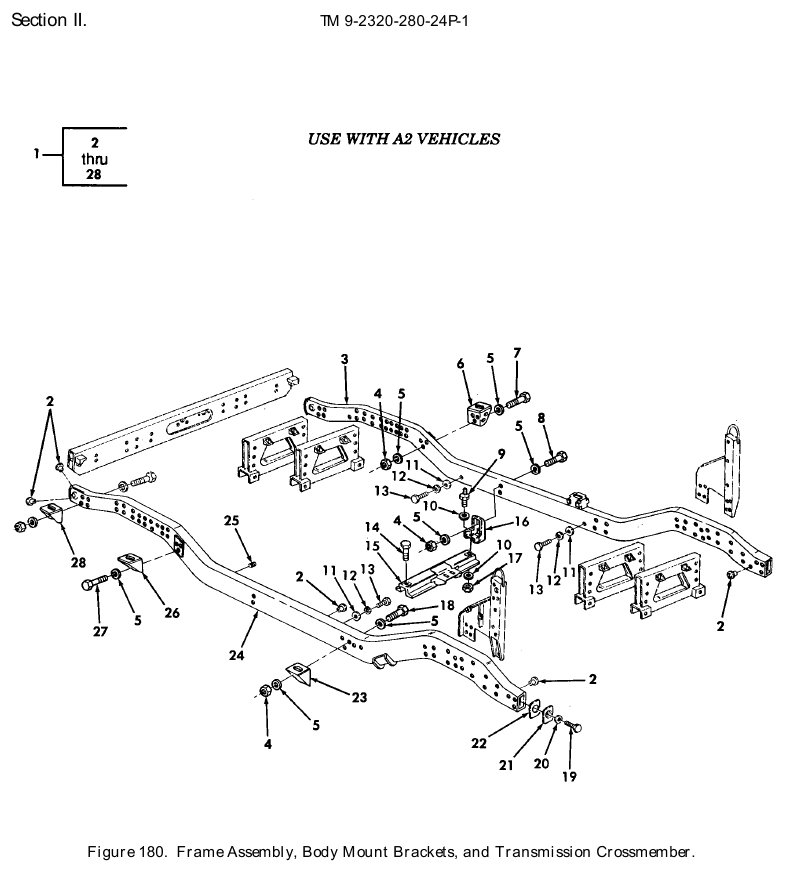

TM 9-2320-280-24P figure 180, Frame Assembly, Body Mount Brackets, and Transmission Crossmember: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Frame Assembly P/N EX5063 FRAME ASSEMBLY Fits: All A2 models, plus M1123	2	Ask us
2	Protective Dust and Moistur Plug NSN 5340-01-244-5765 · P/N 5597286 PLUG,PROTECTIVE,DUS Fits: All A2 models, plus M1123	7	303 in stock $33.00our price Buy online ↗
3	Structural Vehicul Frame Section NSN 2510-01-477-3949 · P/N RCSK18810 FRAME SECTION,STRUC L.H Fits: All A2 models, plus M1123	1	We can source it $2,224.93 per eachgov't list price
4	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A2 models, plus M1123	12	1,713 in stock
5	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: All A2 models, plus M1123	27	7 in stock
6	Angle Bracket NSN 5340-01-358-5588 · P/N 12342509 BRACKET,ANGLE L.H Fits: All A2 models, plus M1123	1	50 in stock $115.31 per eachgov't list price
7	Cap Hexagon Head Screw NSN 5305-00-071-2082 · P/N B1821BH050C475N SCREW,CAP,HEXAGON H 1/2-13 X 4.75 Fits: All A2 models, plus M1123	3	55 in stock
8	Cap Hexagon Head Screw NSN 5305-01-185-7122 · P/N 5591781 SCREW,CAP,HEXAGON H 1/2-13 X 4.25 Fits: All A2 models, plus M1123	3	We can source it
9	Shouldered Stud NSN 5307-01-450-3072 · P/N 12447177 STUD,SHOULDERED Fits: All A2 models, plus M1123	1	We can source it $25–$45 eachtypical
10	Flat Washer NSN 5310-00-068-5285 · P/N MS27183-20 WASHER,FLAT 9/16 Fits: All A2 models, plus M1123	4	810 in stock
11	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT Fits: All A2 models, plus M1123	4	1,368 in stock
12	Lock Washer NSN 5310-00-407-9566 · P/N MS-35338-45 WASHER,LOCK Fits: All A2 models, plus M1123	4	2,036 in stock
13	Machine Bolt NSN 5306-00-225-8496 · P/N MS90725-31 BOLT,MACHINE Fits: All A2 models, plus M1123	4	76 in stock
14	Cap Hexagon Head Screw NSN 5305-00-716-7680 · P/N B1821BH056C150N SCREW,CAP,HEXAGON H 9/16-12 X 1.50 Fits: All A2 models, plus M1123	1	We can source it
15	Structural Vehicul Frame Section NSN 2510-01-412-4969 · P/N 12447053 FRAME SECTION,STRUC Fits: All A2 models, plus M1123	1	2 in stock $335.00our price Buy online ↗
16	Vehicular Components Bracket NSN 2590-01-186-0863 · P/N 12338185 BRACKET,VEHICULAR C Fits: All A2 models, plus M1123	2	281 in stock $144.56 per eachgov't list price
17	Self-Locking Hexagon Nut NSN 5310-00-044-3342 · P/N 8712289-5 NUT,SELF-LOCKING,HE 9/16-12 Fits: All A2 models, plus M1123	2	We can source it
18	Cap Hexagon Head Screw NSN 5305-00-071-2081 · P/N B1821BH050C450N SCREW,CAP,HEXAGON H 1/2-13 X 4.50 Fits: All A2 models, plus M1123	5	43 in stock
19	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	2	471 in stock
20	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT Fits: All A2 models, plus M1123	2	52 in stock
21	Cover Frame Plate NSN 2510-01-477-4388 · P/N RCSK18848 PLATE,COVER,FRAME Fits: All A2 models, plus M1123	2	We can source it
22	Gasket NSN 5330-01-476-9732 · P/N RCSK18639 GASKET Fits: All A2 models, plus M1123	2	We can source it
23	Angle Bracket NSN 5340-01-185-8620 · P/N 12338178 BRACKET,ANGLE R.H Fits: All A2 models, plus M1123	2	We can source it $85–$140 eachtypical
24	Structural Vehicul Frame Section NSN 2510-01-477-3968 · P/N RCSK18809 FRAME SECTION,STRUC R.H Fits: All A2 models, plus M1123	1	8 in stock $1,911.00our price Buy online ↗
25	Setscrew NSN 5305-01-477-1867 · P/N RCSK19027 SETSCREW Fits: All A2 models, plus M1123	7	We can source it
26	Mounting Bracket NSN 5340-01-358-7595 · P/N 12342510 BRACKET,MOUNTING R.H Fits: All A2 models, plus M1123	1	9 in stock $55–$105 eachtypical
27	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 Fits: All A2 models, plus M1123	27	296 in stock
28	Angle Bracket NSN 5340-01-190-0333 · P/N 5582763 BRACKET,ANGLE L.H Fits: All A2 models, plus M1123	1	2 in stock $65–$105 eachtypical

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
