HMMWV Air Lift Brackets, Front Upper Control Arm Brackets, Front Spring Seats, and Mounting Hardware TM 9-2320-280-24P · Fig. 181

Every part in figure 181 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 21 lines, 15 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

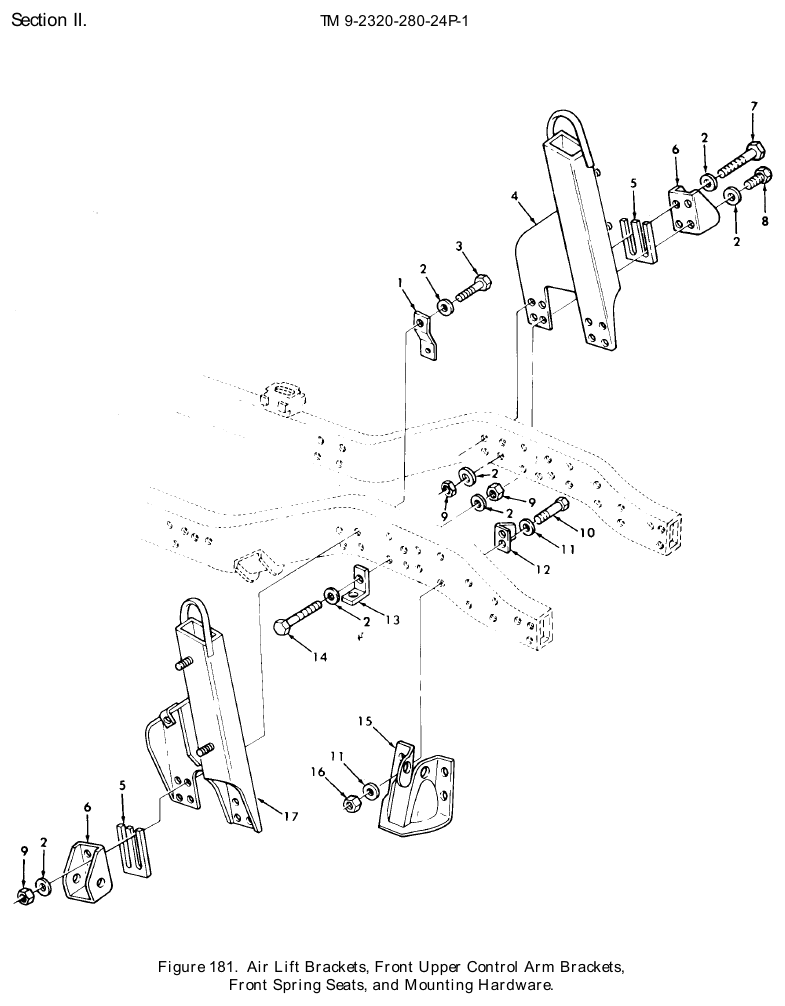

TM 9-2320-280-24P figure 181, Air Lift Brackets, Front Upper Control Arm Brackets, Front Spring Seats, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Mounting Bracket NSN 5340-01-214-2089 · P/N 12338159 BRACKET,MOUNTING Fits: All models	1	We can source it
2	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: All models	39	7 in stock
3	Cap Hexagon Head Screw NSN 5305-00-071-2079 · P/N B1821BH050C400N SCREW,CAP,HEXAGON H 1/2-13 X 4.00 Fits: All models	3	60 in stock
4	Mounting Bracket NSN 5340-01-317-1470 · P/N 12342361 BRACKET,MOUNTING L.H Fits: All models	1	170 in stock $276.05 per eachgov't list price
5	Plate Spacer NSN 5365-01-209-7831 · P/N 5583219 SPACER,PLATE .060 INCH Fits: All models	4	We can source it
5	Plate Spacer NSN 5365-01-209-7832 · P/N 12338226-2 SPACER,PLATE .120 INCH Fits: All models	4	We can source it
6	Vehicular Components Bracket NSN 2590-01-215-4325 · P/N 12338245 BRACKET,VEHICULAR C FRONT Fits: All models	4	5 in stock $30–$70 eachtypical
7	Cap Hexagon Head Screw NSN 5305-00-071-2078 · P/N B1821BH050C375N SCREW,CAP,HEXAGON H 1/2-13 X 3.75 Fits: All models	12	11 in stock
8	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75 Fits: All models	1	4,200 in stock $52.99our price Buy online ↗
9	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All models	19	1,713 in stock
10	Cap Hexagon Head Screw NSN 5305-00-947-4358 · P/N B1821BH075C400N SCREW,CAP,HEXAGON H 3/4-10 X 4.00 Fits: All models	8	We can source it
11	Flat Washer NSN 5310-01-260-4839 · P/N 5593312 WASHER,FLAT 3/4 Fits: All models	16	We can source it
12	Angle Bracket NSN 5340-01-210-7966 · P/N 12338173 BRACKET,ANGLE Fits: All models	1	We can source it
13	Angle Bracket NSN 5340-01-190-2248 · P/N 12338170 BRACKET,ANGLE Fits: All models	2	7 in stock
14	Machine Bolt NSN 5306-01-186-7128 · P/N 9427162 BOLT,MACHINE 1/2-13 X 3.75 Fits: All models	4	191 in stock
15	Vehicular Components Bracket NSN 2590-01-187-7034 · P/N 12338191-1 SEAT SPRING,VEHICUL L.H. FRONT Fits: All models	1	66 in stock $175.00our price Buy online ↗
15	Vehicular Components Bracket NSN 2540-01-188-3239 · P/N 12338191-2 SEAT SPRING,VEHICUL R.H.FRONT Fits: All models	1	15 in stock $154.35 per eachgov't list price
16	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 Fits: All models	8	5,754 in stock
17	Mounting Bracket NSN 5340-01-317-0147 · P/N 12342362 BRACKET,MOUNTING R.H., USBL EFF 100,000 AND ABOVE Fits: All A0 and A1 models, plus M1121	1	3 in stock
17	Air Lift Assembly NSN 2590-01-478-6799 · P/N 12447001 AIR LIFT MOUNT R.H Fits: All A2 models, plus M1123	1	78 in stock $171.50our price Buy online ↗
17	Air Lift Assembly R.h NSN 2510-01-175-7224 · P/N 5592737 AIR LIFT ASSEMBLY R.H Fits: All A0 models except M1097, plus M1121	1	1 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
