HMMWV Front Suspension Crossmembers, Related Parts, and Mounting Hardware TM 9-2320-280-24P · Fig. 182

Every part in figure 182 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 30 lines, 23 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

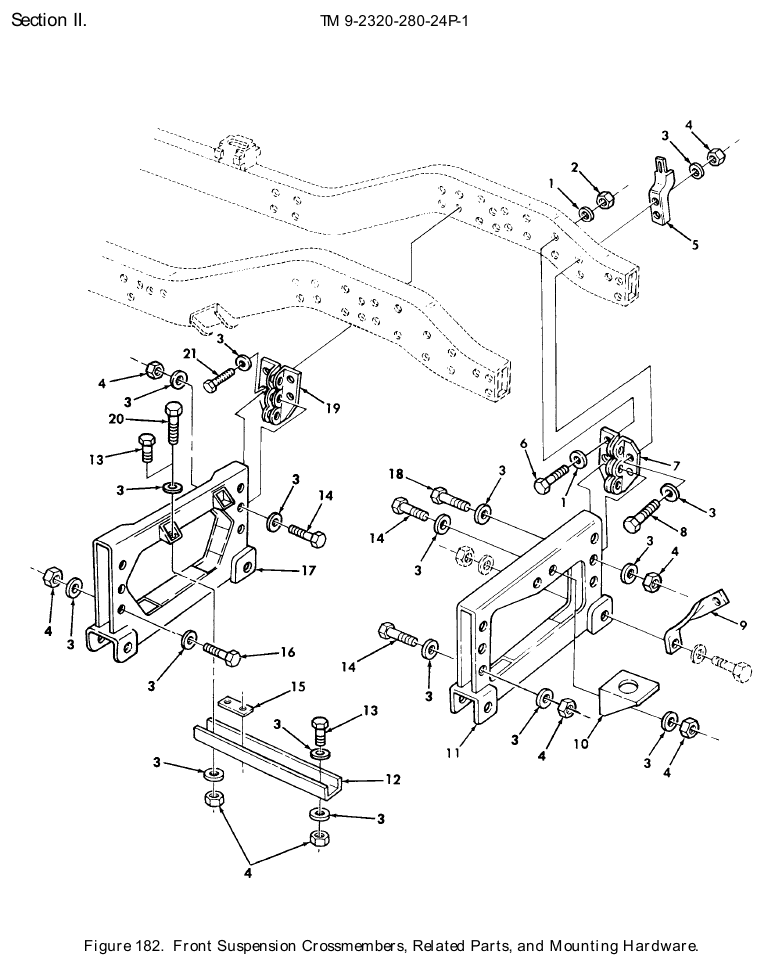

TM 9-2320-280-24P figure 182, Front Suspension Crossmembers, Related Parts, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-01-260-4839 · P/N 5593312 WASHER,FLAT 3/4 Fits: All models	8	We can source it
2	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 Fits: All models	4	5,754 in stock
3	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: All models	45	7 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All models	22	1,713 in stock
5	Mounting Bracket NSN 5340-01-192-3414 · P/N 12338166 BRACKET,MOUNTING Fits: All A0 and A1 models, plus M1121	2	46 in stock $25–$60 eachtypical
5	Mounting Bracket NSN 5340-01-484-7646 · P/N 12447051 BRACKET,MOUNTING Fits: All A2 models, plus M1123	2	We can source it $40–$80 eachtypical
6	Cap Hexagon Head Screw NSN 5305-00-947-4358 · P/N B1821BH075C400N SCREW,CAP,HEXAGON H 3/4-10 X 4.00 Fits: All models	4	We can source it
7	Crossmember LH Bracket NSN 2510-01-189-0891 · P/N 5579620 BRACKET,CROSSMEMBER L.H. FRONT Fits: All models	1	We can source it quote only $114.43 per eachgov't list price
7	Crossmember RH Bracket NSN 2510-01-187-7031 · P/N 5579621 BRACKET,CROSSMEMBER R.H. FRONT Fits: All models	1	589 in stock $106.76 per eachgov't list price
8	Cap Hexagon Head Screw NSN 5305-00-071-2076 · P/N B1821BH050C325N SCREW,CAP,HEXAGON H 1/2-13 X 3.25 Fits: All A0 and A1 models, plus M1121	4	4 in stock
8	Cap Hexagon Head Screw NSN 5305-00-071-2079 · P/N B1821BH050C400N SCREW,CAP,HEXAGON H 1/2-13 X 4.00 Fits: All A2 models, plus M1123	4	60 in stock
9	Suspension Brace NSN 2530-01-210-3567 · P/N 12338165 BRACE,SUSPENSION Fits: All models	2	15 in stock $25–$40 eachtypical
10	Angle Bracket NSN 5340-01-212-7711 · P/N 12338180 BRACKET,ANGLE LOWER RADIATOR MOUNT Fits: All models	1	264 in stock $55–$95 eachtypical
11	Structural Vehicul Frame Section NSN 2510-01-175-7216 · P/N 12338230 FRAME SECTION,STRUC FRONT FORWARD Fits: All A0 and A1 models, plus M1121	1	2 in stock $224.90 per eachgov't list price
11	Structural Vehicular Frame NSN 2510-01-466-3752 · P/N WA12338230 FRAME,STRUCTURAL,VE FRONT FORWARD Fits: All A2 models, plus M1123	1	We can source it quote only $2,584.39 per eachgov't list price
12	Vehicular Components Bracket NSN 2590-01-185-6711 · P/N 12338146 BRACKET,VEHICULAR C Fits: All A0 and A1 models, plus M1121	2	39 in stock $25–$55 eachtypical
12	Double Angle Bracket NSN 5340-01-432-4876 · P/N 6002224 BRACKET,AXLE LEFT FRONT Fits: All A2 models, plus M1123	1	3 in stock $50–$85 eachtypical
12	Double Angle Bracket NSN 5340-01-437-8751 · P/N 6002225 BRACKET,AXLE RIGHT FRONT Fits: All A2 models, plus M1123	1	16 in stock $142.10our price Buy online ↗
13	Cap Hexagon Head Screw NSN 5305-00-071-2066 · P/N B1821BH050C100N SCREW,CAP,HEXAGON H Fits: All A0 and A1 models, plus M1121	4	1 in stock
13	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H FRONT CROSSMEMBER Fits: All A2 models, plus M1123	2	2,205 in stock
14	Cap Hexagon Head Screw NSN 5305-00-071-2075 · P/N B1821BH050C300N SCREW,CAP,HEXAGON H Fits: All models	8	259 in stock
15	Mounting Plate NSN 5340-01-432-4877 · P/N RCSK17122 PLATE,MOUNTING Fits: All A2 models, plus M1123	2	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-071-2076 · P/N B1821BH050C325N SCREW,CAP,HEXAGON H 1/2-13 X 3.25 Fits: All models	2	4 in stock
17	Structural Vehicul Frame Section NSN 2510-01-175-7219 · P/N 12338223 FRAME SECTION,STRUC FRONT REAR Fits: All A0 and A1 models, plus M1121	1	We can source it quote only $281.41 per eachgov't list price
17	Structural Vehicul Frame Section NSN 2510-01-413-8045 · P/N WA12338223 FRAME SECTION,STRUC Fits: All A2 models, plus M1123	1	25 in stock $685.02our price Buy online ↗
18	Cap Hexagon Head Screw NSN 5305-00-071-2074 · P/N B1821BH050C275N SCREW,CAP,HEXAGON H 1/2-13 X 2.75 Fits: All models	4	79 in stock
19	Crossmember Bracket NSN 2510-01-185-6647 · P/N 12338155-1 BRACKET,CROSSMEMBER L.H.REAR Fits: All models	1	1 in stock $123.64 per eachgov't list price
19	Crossmember Bracket NSN 2510-01-185-6648 · P/N 12338155-2 BRACKET,CROSSMEMBER R.H.REAR Fits: All models	1	429 in stock $86.89our price Buy online ↗
20	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 Fits: All A2 models, plus M1123	2	296 in stock
21	Cap Hexagon Head Screw NSN 5305-00-071-2066 · P/N B1821BH050C100N SCREW,CAP,HEXAGON H Fits: All models	1	1 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
