HMMWV Rear Suspension Crossmembers, Related Parts, and Mounting Hardware TM 9-2320-280-24P · Fig. 183

Every part in figure 183 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 31 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

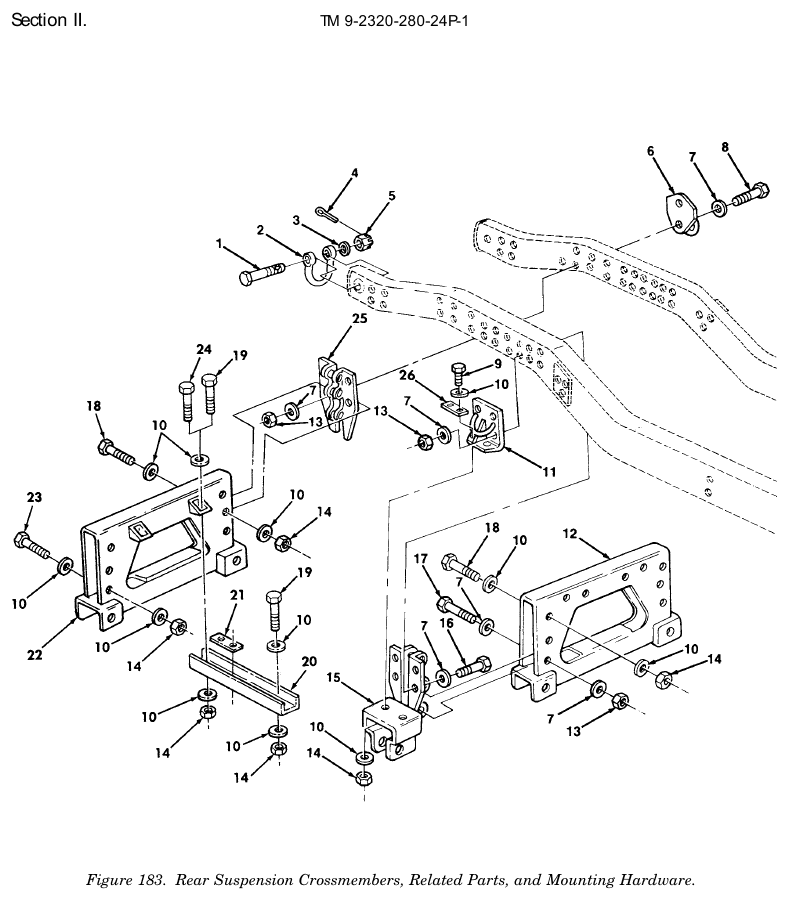

TM 9-2320-280-24P figure 183, Rear Suspension Crossmembers, Related Parts, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-01-264-3602 · P/N 12338225-1 SCREW,CAP,HEXAGON H REAR LIFTING SHACKLE,5/8-18 X 5.50 Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M998, M998A1, M1025, M1025A1 and 14 more	2	69 in stock
2	Shackle NSN 4030-01-316-1551 · P/N 12342354 SHACKLE REAR Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M998, M998A1, M1025, M1025A1 and 14 more	2	94 in stock $53.00our price Buy online ↗
3	Spring Tension Washer NSN 5310-00-595-7486 · P/N 10-40704-22 WASHER,SPRING TENSI 5/8 Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M998, M998A1, M1025, M1025A1 and 14 more	2	9 in stock
4	Cotter Pin NSN 5315-00-012-0123 · P/N MS24665-355 PIN,COTTER 1/8 X 1.25 Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M998, M998A1, M1025, M1025A1 and 14 more	2	955 in stock
5	Plain Slotted Hexagon Nut NSN 5310-00-850-7004 · P/N MS35692-54 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: All A2 models except M997A2, M1097A2, plus M966, M966A1, M998, M998A1, M1025, M1025A1 and 14 more	2	8,940 in stock
6	Strap Fastener Loop NSN 5340-01-186-7664 · P/N 12338181 LOOP,STRAP FASTENER Fits: All models	2	We can source it $30–$55 eachtypical
7	Flat Washer NSN 5310-01-147-4052 · P/N 2436168 WASHER,FLAT 3/4 Fits: All models	24	301 in stock
8	Cap Hexagon Head Screw NSN 5305-00-947-4359 · P/N B1821BH075C425N SCREW,CAP,HEXAGON H 3/4-10 X 4.25 Fits: All models	4	45 in stock
9	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50 Fits: All models	4	2,205 in stock
10	Shackle NSN 4030-01-316-1551 · P/N 32100143001 WASHER 1/2 Fits: All models	30	94 in stock $53.00our price Buy online ↗
11	Mounting Bracket NSN 5340-01-204-2584 · P/N 12338197 BRACKET,MOUNTING Fits: All models	2	464 in stock $25–$40 eachtypical
12	Structural Vehicul Frame Section NSN 2510-01-175-7217 · P/N 12338217 FRAME SECTION,STRUC REAR FRONT Fits: All A0 and A1 models, plus M1121	1	5 in stock $445.80 per eachgov't list price
12	Structural Vehicul Frame Section NSN 2510-01-433-4421 · P/N RCSK17176 FRAME SECTION,STRUC REAR FRONT Fits: All A2 models, plus M1123	1	2 in stock quote only $529.60 per eachgov't list price
13	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 Fits: All models	12	5,754 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All models	16	1,713 in stock
15	Suspension Crossmember Bracket NSN 2510-01-210-6941 · P/N 12338224 BRACKET,SUSPENSION, REAR Fits: All models	2	We can source it $141.77 per eachgov't list price
16	Cap Hexagon Head Screw NSN 5305-00-947-4360 · P/N B1821BH075C450N SCREW,CAP,HEXAGON H 3/4-10 X 4.50 Fits: All models	4	We can source it
17	Cap Hexagon Head Screw NSN 5305-00-947-4355 · P/N B1821BH075C325N SCREW,CAP,HEXAGON H 3/4-10 X 3.25 Fits: All models	4	We can source it
18	Cap Hexagon Head Screw NSN 5305-00-071-2074 · P/N B1821BH050C275N SCREW,CAP,HEXAGON H 1/2-13 X 2.75 Fits: All models	6	79 in stock
19	Cap Hexagon Head Screw NSN 5305-00-071-2066 · P/N B1821BH050C100N SCREW,CAP,HEXAGON H 1/2-13 X 1.00 Fits: All A0 and A1 models, plus M1121	4	1 in stock
19	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H REAR FRONT CROSSMEMBER 1/3-13 X 1.25 Fits: All A2 models, plus M1123	2	296 in stock
20	Double Angle Bracket NSN 5340-01-432-8678 · P/N 6002226 BRACKET,VEHICULAR C LEFT REAR Fits: All A2 models, plus M1123	1	We can source it $60–$100 eachtypical
20	Double Angle Bracket NSN 5340-01-437-8748 · P/N 6002227 BRACKET,VEHICULAR C RIGHT REAR Fits: All A2 models, plus M1123	1	We can source it $35–$70 eachtypical
20	Vehicular Components Bracket NSN 2590-01-185-6711 · P/N 12338146 BRACKET,VEHICULAR C REAR Fits: All A0 and A1 models, plus M1121	2	39 in stock $25–$55 eachtypical
21	Mounting Plate NSN 5340-01-433-2743 · P/N RCSK17123 PLATE,MOUNTING Fits: All A2 models, plus M1123	2	We can source it
22	Structural Vehicul Frame Section NSN 2510-01-175-7218 · P/N 12338222 FRAME SECTION,STRUC REAR Fits: All A0 and A1 models, plus M1121	1	1 in stock quote only $280.34 per eachgov't list price
22	Structural Vehicul Frame Section NSN 2510-01-457-0949 · P/N RCSK17876 FRAME SECTION,STRUC REAR Fits: All A2 models, plus M1123	2	We can source it quote only $544.88 per eachgov't list price
23	Cap Hexagon Head Screw NSN 5305-00-071-2075 · P/N B1821BH050C300N SCREW,CAP,HEXAGON H 1/2-13 X 3.00 Fits: All A2 models, plus M1123	2	259 in stock
24	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H Fits: All A2 models, plus M1123	2	2,205 in stock
25	Structural Vehicul Frame Section NSN 2510-01-187-7033 · P/N 12338148 FRAME SECTION,STRUC REAR Fits: All models	2	We can source it $102.91 per eachgov't list price
26	Mending Plate NSN 5340-01-209-7767 · P/N 12338172 PLATE,MENDING Fits: All models	2	2,540 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
