HMMWV Upper Control Arm Brackets, Spring Seats, Related Parts, and Mounting Hardware TM 9-2320-280-24P · Fig. 184

Every part in figure 184 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 24 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

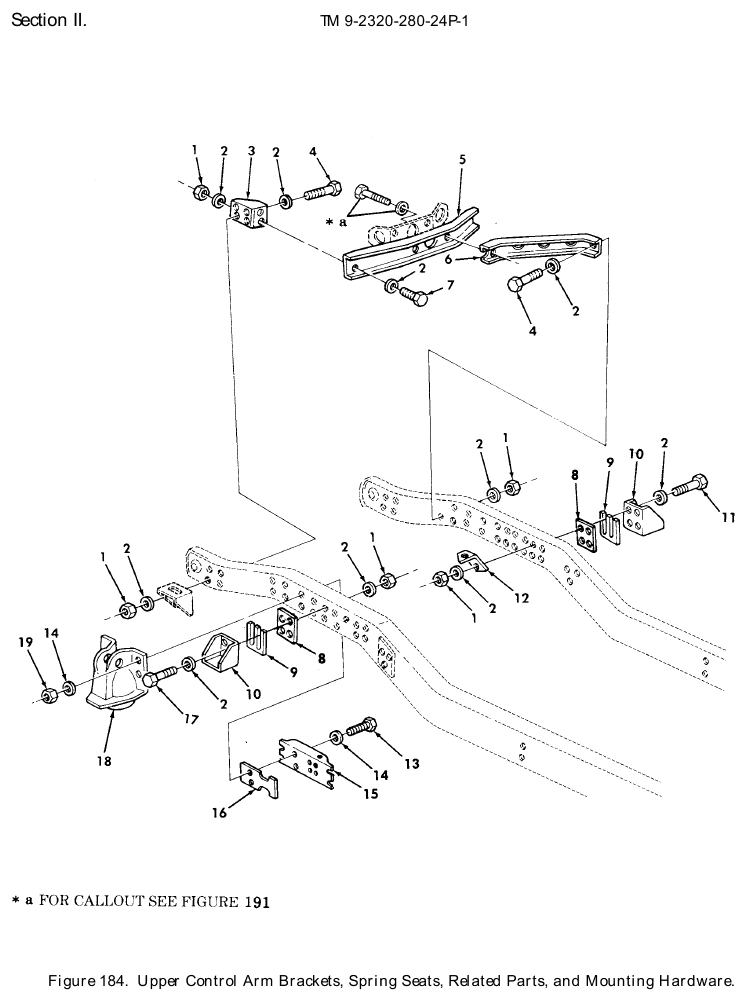

TM 9-2320-280-24P figure 184, Upper Control Arm Brackets, Spring Seats, Related Parts, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1037, M1042 and 3 more	16	1,713 in stock
1	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	30	1,713 in stock
2	Flat Washer NSN 5310-01-121-1703 · P/N 2310-0143-001 WASHER,FLAT 1/2 B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	60	2,218 in stock
2	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: All A2 models, plus M996, M996A1, M997, M997A1, M1037, M1042 and 3 more	32	2,218 in stock
3	Vehicular Components Bracket NSN 2590-01-184-4475 · P/N 12338167-1 BRACKET,VEHICULAR C REAR BUMPER,LH B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	1	6 in stock $25–$50 eachtypical
3	Mounting Bracket NSN 5340-01-361-6658 · P/N 12338167-2 BRACKET,MOUNTING R.H B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	1	1 in stock $40–$80 eachtypical
4	Cap Hexagon Head Screw NSN 5305-00-071-2078 · P/N B1821BH050C375N SCREW,CAP,HEXAGON H 1/2-13 X 3.75 B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	10	11 in stock
5	Structural Channel NSN 9540-01-175-7222 · P/N 12338193 CHANNEL,STRUCTURAL B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	1	2 in stock quote only $85–$145 eachtypical
6	Structural Vehicul Frame Section NSN 2510-01-189-0890 · P/N 5579538 FRAME SECTION,STRUC B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	2	91 in stock $45–$85 eachtypical
7	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 B17,B18,H11,H13,H14 H17,H18,H20,H24, H25,H26,H27,MMM Fits: M966A1, M998A1, M1035A1, M1038A1, M1043A1, M1044A1 and 2 more	4	296 in stock
8	Plate Spacer NSN 5365-01-210-1628 · P/N 12338171 SPACER,PLATE Fits: All models	4	408 in stock
9	Plate Spacer NSN 5365-01-209-7831 · P/N 5583219 SPACER,PLATE .060 INCH Fits: All models	4	We can source it
9	Plate Spacer NSN 5365-01-209-7832 · P/N 12338226-2 SPACER,PLATE .120 INCH Fits: All models	4	We can source it
10	Control Vehicular Suspension Arm NSN 2530-01-189-1745 · P/N 12338240 ARM,CONTROL,VEHICUL UPPER CONTROL ARM Fits: All models	4	We can source it $30–$60 eachtypical
11	Cap Hexagon Head Screw NSN 5305-01-185-7122 · P/N 5591781 SCREW,CAP,HEXAGON H 1/2-13 X 4.25 Fits: All models	8	We can source it
12	Mending Plate NSN 5340-01-209-7767 · P/N 12338172 PLATE,MENDING Fits: All models	1	2,540 in stock
13	Cap Hexagon Head Screw NSN 5305-00-947-4360 · P/N B1821BH075C450N SCREW,CAP,HEXAGON H 3/4-10 X 4.50 Fits: All models	8	We can source it
14	Flat Washer NSN 5310-01-260-4839 · P/N 5593312 WASHER,FLAT 3/4 Fits: All models	16	We can source it
15	Structural Vehicular Frame NSN 2510-01-203-9883 · P/N 12338152 FRAME,STRUCTURAL,VE Fits: All models	2	12 in stock quote only $155.88 per eachgov't list price
16	Reinforcement Plate NSN 2510-01-210-6942 · P/N 12338174 PLATE,REINFORCEMENT Fits: All models	2	4 in stock $35–$65 eachtypical
17	Cap Hexagon Head Screw NSN 5305-00-071-2081 · P/N B1821BH050C450N SCREW,CAP,HEXAGON H 1/2-13 X 4.50 Fits: All models	8	43 in stock
18	Vehicular Components Bracket NSN 2540-01-203-5664 · P/N 12338190 SEAT,SPRING VEHICUL Fits: M966, M998, M1025, M1026, M1035, M1038 and 6 more	2	73 in stock $131.53 per eachgov't list price
18	Vehicular Components Bracket NSN 2590-01-248-4873 · P/N 12338738 ARM,CONTROL,VEHICUL REAR,HEAVY DUTY Fits: All A1 and A2 models, plus M996, M997, M1037, M1042, M1097, M1123	2	635 in stock $106.61 per eachgov't list price
19	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 Fits: All models	8	5,754 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
