HMMWV Front Bumper and Lifting Shackle TM 9-2320-280-24P · Fig. 185

Every part in figure 185 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1501 Frame Assembly: 16 lines, 14 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

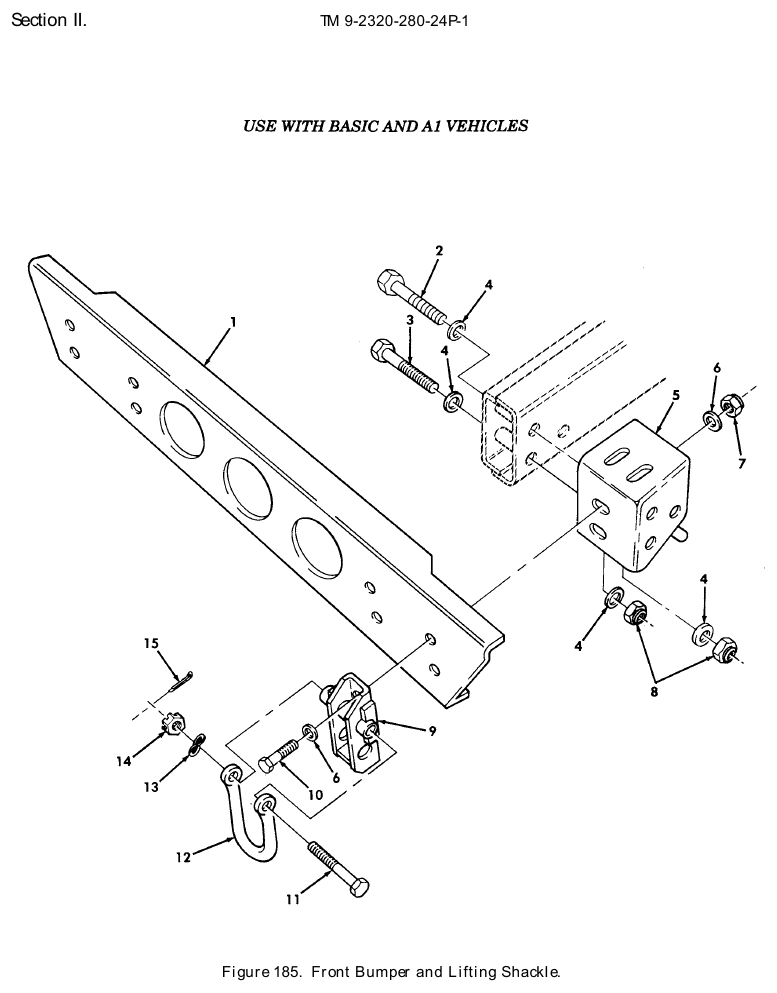

TM 9-2320-280-24P figure 185, Front Bumper and Lifting Shackle: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Bumper NSN 2540-01-189-1074 · P/N 12338426 BUMPER,VEHICULAR FRONT Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	1	6 in stock $144.00our price Buy online ↗
2	Cap Hexagon Head Screw NSN 5305-01-255-0094 · P/N 9427812 SCREW,CAP,HEXAGON H 5/8-11 X 3.25 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	We can source it $25–$40 eachtypical
3	Cap Hexagon Head Screw NSN 5305-00-724-7247 · P/N B1821BH063C350N SCREW,CAP,HEXAGON H 5/8-11 X 3.50 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	4	4 in stock
4	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	12	We can source it
5	Bumper Mounting Bracket NSN 2540-01-186-0501 · P/N 12338199 BRACKET,BUMPER MOUN FRONT Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	6 in stock $60–$100 eachtypical
6	Flat Washer NSN 5310-01-121-1703 · P/N 2436165 WASHER,FLAT 1/2 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	8	2,218 in stock
7	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	4	1,713 in stock
8	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N 12387349-43 NUT,SELF-LOCKING,HE 5/8-11 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	6	256 in stock
9	Bracket Weldment NSN 2540-01-185-6710 · P/N 12338425 BRACKET WELDMENT,TO USBL EFF 1 THRU 99,999 Fits: M966, M996, M997, M998, M1025, M1035 and 4 more	2	2 in stock
9	Vehicular Components Bracket NSN 2590-01-316-0084 · P/N 12342404 BRACKET,VEHICULAR C USBL EFF 100, 000 AND ABOVE Fits: M996A1, M997A1, M998A1, M1025A1, M1035A1, M1038A1 and 3 more	2	13 in stock $85–$140 eachtypical
10	Cap Hexagon Head Screw NSN 5305-00-071-2071 · P/N B1821BH050C200N SCREW,CAP,HEXAGON H FRONT 1/2-13 X 200 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	4	447 in stock
11	Cap Hexagon Head Screw NSN 5305-01-264-3602 · P/N 12338225-1 SCREW,CAP,HEXAGON H 5/8-18 X 5.50 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	69 in stock
12	Shackle NSN 4030-01-316-1551 · P/N 12342354 SHACKLE Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	94 in stock $53.00our price Buy online ↗
13	Spring Tension Washer NSN 5310-00-595-7486 · P/N 10-40704-22 WASHER,SPRING TENSI 49/64 I.D Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	9 in stock
14	Plain Slotted Hexagon Nut NSN 5310-00-850-7004 · P/N MS35692-54 NUT,PLAIN,SLOTTED,H 5/8-18 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	8,940 in stock
15	Cotter Pin NSN 5315-00-012-0123 · P/N MS24665-355 PIN,COTTER 1/8 X 1.25 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	2	955 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
