HMMWV Towing Pintle Assembly TM 9-2320-280-24P · Fig. 191

Every part in figure 191 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1503 Pintles and Towing Attachments: 31 lines, 24 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

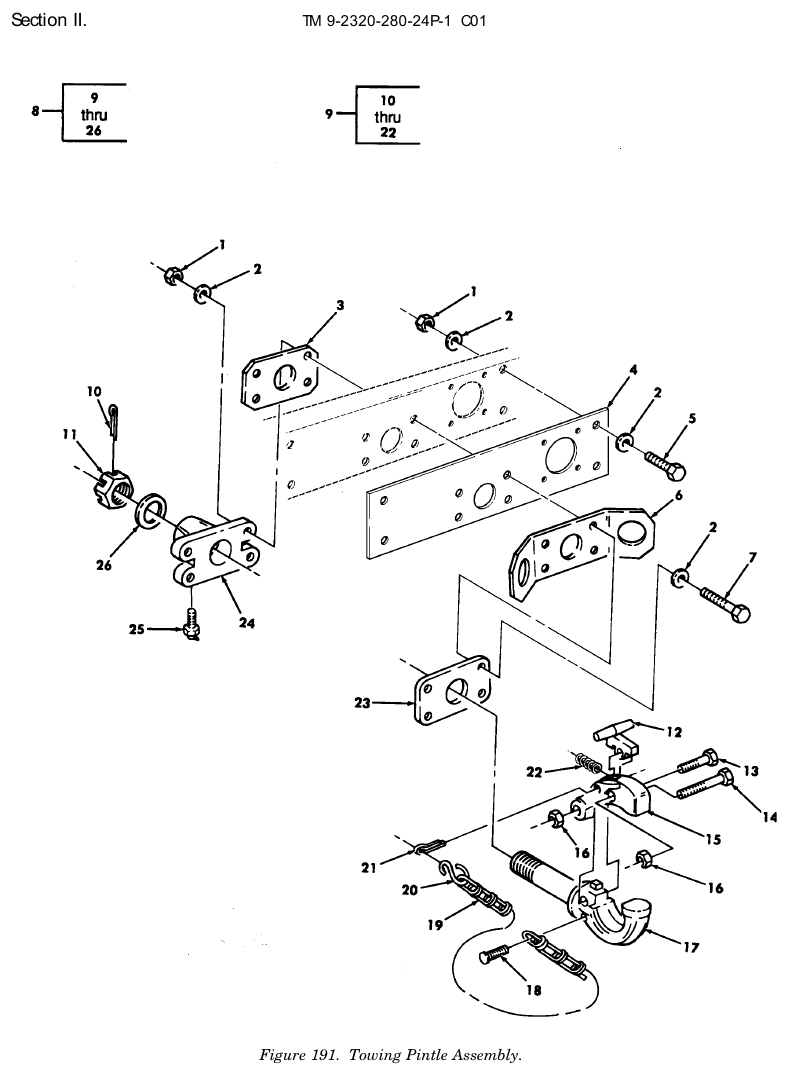

TM 9-2320-280-24P figure 191, Towing Pintle Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All models	4	1,713 in stock
1	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 USE WITH AIRLIFT BUMPER REINFORCEMENT MWO 9-2320-280-20-6 Fits: M1025A2, M1097, M1097A1, M1097A2	8	1,713 in stock
2	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: All models	8	7 in stock
2	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 USE WITH AIRLIFT BUMPER REINFORCEMENT MWO 9-2320-280- 20-6 Fits: M1025A2, M1097, M1097A1, M1097A2	16	7 in stock
3	Plate Spacer NSN 5365-01-219-3528 · P/N 12338195 SPACER,PLATE Fits: All models	1	4,027 in stock $14.99our price Buy online ↗
4	Plate P/N 12469169 PLATE,BUMPER REINFO USE WITH AIRLIFT BUMPER REINFORCEMENT MWO 9- 2320-280-20-6 Fits: M1025A2, M1097, M1097A1, M1097A2	1	Ask us
5	Cap Hexagon Head Screw NSN 5305-00-071-2077 · P/N B1821BH050C350N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 USE WITH AIRLIFT BUMPER REINFORCEMENT MWO 9-2320-280-20-6 Fits: M1025A2, M1097, M1097A1, M1097A2	4	40 in stock $25–$60 eachtypical
6	Mounting Plate NSN 2540-01-186-6039 · P/N 12338189 PLATE,MOUNTING,GROM Fits: All models	1	1 in stock $25–$60 eachtypical
7	Cap Hexagon Head Screw NSN 5305-00-071-2073 · P/N B1821BH050C250N SCREW,CAP,HEXAGON H 1/2-13 X 2.50 Fits: All models	4	2,000 in stock
7	Cap Hexagon Head Screw NSN 5305-00-071-2075 · P/N B1821BH050C300N SCREW,CAP,HEXAGON H USE WITH AIRLIFT BUMPER REINFORCEMENT MWO 9- 2320-280-20-6 Fits: M1025A2, M1097, M1097A1, M1097A2	4	259 in stock
7	Cap Hexagon Head Screw NSN 5305-00-071-2079 · P/N B1821BH050C400N SCREW,CAP,HEXAGON H USE WITH CROSSMEMBER REINFORCEMENT MWO 9- 2320-280-20-7 Fits: M966, M966A1, M998, M998A1, M1025, M1025A1 and 4 more	4	60 in stock
8	Towing Pintle Assembly NSN 2540-01-189-2193 · P/N T-60-A0S-L PINTLE ASSEMBLY,TOW Fits: All models	1	1 in stock $161.23 per assemblygov't list price
9	Towing Pintle Assembly NSN 2540-00-078-6633 · P/N MS51335-1 PINTLE ASSEMBLY,TOW Fits: All models	1	1 in stock $172.38 per eachgov't list price
10	Cotter Pin NSN 5315-00-846-0126 · P/N MS24665-628 PIN,COTTER 1/4 X 3.00 Fits: All models	1	85 in stock
11	Plain Slotted Hexagon Nut NSN 5310-00-849-6882 · P/N MS35692-94 NUT,PLAIN,SLOTTED,H 1.25-12 Fits: All models	1	We can source it $25–$55 eachtypical
12	Pintle Hook Latch NSN 2540-01-023-5116 · P/N 8380196 LATCH,PINTLE HOOK Fits: All models	1	122 in stock $35.00our price Buy online ↗
13	Cap Hexagon Head Screw NSN 5305-01-271-1806 · P/N 12296696-2 SCREW,CAP,HEXAGON H 1/2-20 X 1.75 Fits: All models	1	We can source it
14	Cap Hexagon Head Screw NSN 5305-00-719-5240 · P/N 91248A721 SCREW,CAP,HEXAGON H 1/2-20 X 2.50 Fits: All models	1	4 in stock
15	Pintle Hook Latch NSN 2540-00-525-7067 · P/N 7524314 LATCH,PINTLE HOOK Fits: All models	1	10 in stock $60–$105 eachtypical
16	Self-Locking Hexagon Nut NSN 5310-00-449-2376 · P/N MS21245-8 NUT,SELF-LOCKING,HE 1/2-20 Fits: All models	2	54 in stock
17	Towing Pintle Assembly NSN 2540-00-078-6633 · P/N MS51335-1 PINTLE ASSEMBLY,TOW TOWING Fits: All models	1	1 in stock $172.38 per eachgov't list price
18	Drive Screw NSN 5305-00-253-5626 · P/N MS21318-47 SCREW,DRIVE #10-8 X 1/2 Fits: All models	1	300 in stock
19	Chain Make From Chain P/N RR-C-271-6 CHAIN MAKE FROM CHAIN,P/N C43974, 6 LINKS Fits: All models	1	Ask us
20	Chain S Hook NSN 4030-00-916-2141 · P/N MS87006-53 HOOK,CHAIN,S Fits: All models	1	9 in stock
21	Cotter Pin NSN 5315-00-243-1169 · P/N 36344N24 PIN,COTTER 1/4 X 2.00 Fits: All models	1	2 in stock
22	Helical Compression Spring NSN 5360-00-704-4253 · P/N 7044253 SPRING,HELICAL,COMP Fits: All models	1	188 in stock
23	Retaining Shaft Plate NSN 3040-00-127-5322 · P/N 7355393 PLATE,RETAINING,SHA Fits: All models	1	We can source it $65–$110 eachtypical
24	Mounting Bracket NSN 5340-00-408-2432 · P/N 7355392 BRACKET,MOUNTING Fits: All models	1	We can source it $80–$130 eachtypical
24	Mounting Bracket NSN 5340-01-506-7986 · P/N 12469170 BRACKET,MOUNTING USE WITH AIRLIFT BUMPER REINFORCEMENT MWO 9-2320- 280-20-6 Fits: M1025A2, M1097, M1097A1, M1097A2	1	1,558 in stock $36.50our price Buy online ↗
25	Lubrication Fitting NSN 4730-00-050-4207 · P/N MS15001-4 FITTING,LUBRICATION Fits: All models	1	2 in stock
26	Flat Washer NSN 5310-00-735-5396 · P/N 7355396 WASHER,FLAT 1.25 Fits: All models	1	We can source it

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
