HMMWV Springs, Front and Rear TM 9-2320-280-24P · Fig. 192

Every part in figure 192 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 16 Springs and Shock Absorbers: 4 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

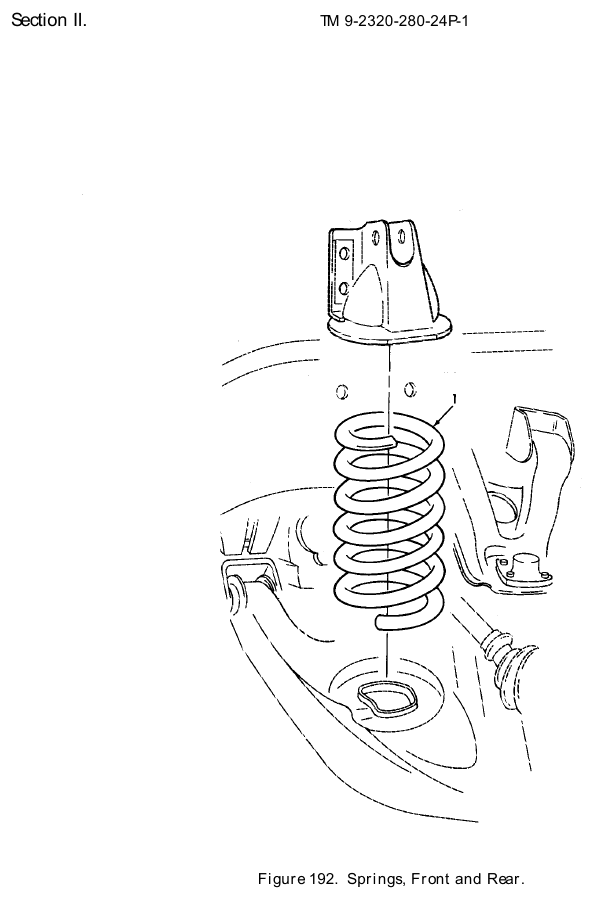

TM 9-2320-280-24P figure 192, Springs, Front and Rear: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Helical Compression Spring NSN 5360-01-357-2413 · P/N 12342616 SPRING,HELICAL,COMP REAR Fits: All A1 and A2 models, plus M1097, M1123	2	113 in stock $285.00our price Buy online ↗
1	Helical Compression Spring NSN 5360-01-254-1492 · P/N 12338316-3 SPRING,HELICAL,COMP REAR Fits: M996, M997, M1037, M1042	2	50 in stock $230.20 per eachgov't list price
1	Helical Compression Spring NSN 5360-01-179-4106 · P/N 12338316-2 SPRING,HELICAL,COMP REAR Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	3 in stock $316.18 per eachgov't list price
1	Helical Compression Spring NSN 5360-01-179-4107 · P/N 12338316-1 SPRING,HELICAL,COMP FRONT Fits: All models	2	517 in stock $156.88our price Buy online ↗

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
