HMMWV Shock Absorbers, Front and Rear TM 9-2320-280-24P · Fig. 193

Every part in figure 193 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1604 Shock Absorber Equipment: 10 lines, 8 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

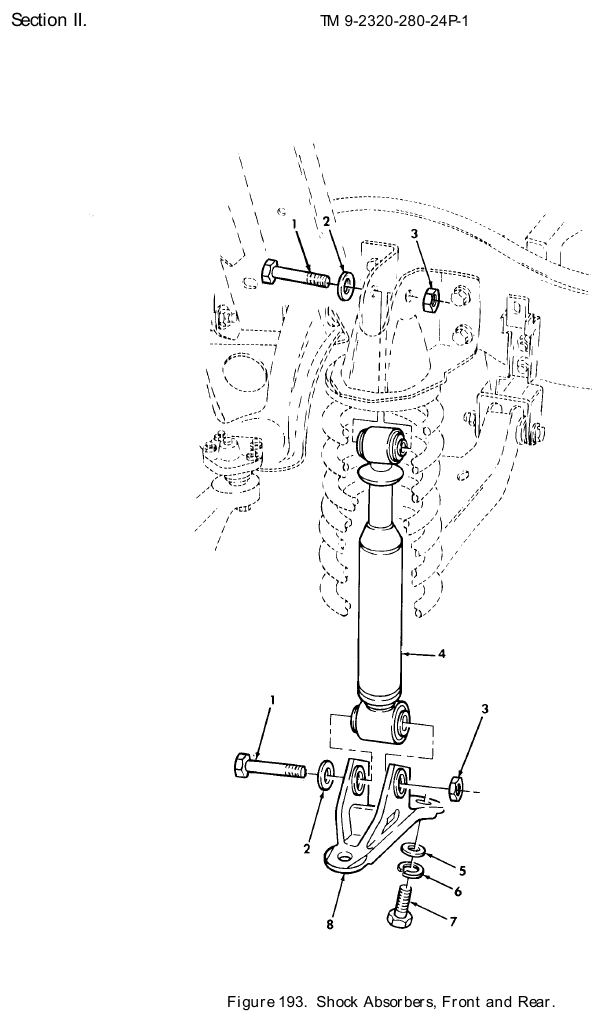

TM 9-2320-280-24P figure 193, Shock Absorbers, Front and Rear: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Thread Bushing NSN 5365-01-186-7764 · P/N 5595454 BUSHING,MACHINE THR FRONT AND REAR, 1.00-14 X 3.17 Fits: All models	8	14 in stock
2	Flat Washer NSN 5310-01-187-3485 · P/N 2065616 WASHER,FLAT 1.00 Fits: All models	8	We can source it
3	Self-Locking Hexagon Nut NSN 5310-01-439-1154 · P/N 12339206 NUT,SELF-LOCKING,HE 1.00-14 Fits: All models	8	20 in stock
4	Direct Action Shock Absorber NSN 2510-01-190-3862 · P/N 70113 SHOCK ABSORBER,DIRE FRONT SUSPENSION Fits: All models	2	434 in stock $112.42 per eachgov't list price
4	Direct Action Shock Absorber NSN 2510-01-251-5316 · P/N 70114 SHOCK ABSORBER,DIRE REAR H.D Fits: All A1 and A2 models, plus M996, M997, M1037, M1042, M1097, M1123	2	3,651 in stock $75.99our price Buy online ↗
4	Direct Action Shock Absorber NSN 2510-01-189-1832 · P/N 70112 SHOCK ABSORBER,DIRE REAR Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	40 in stock $79.00our price Buy online ↗
5	Flat Washer NSN 5310-00-823-8803 · P/N MS27183-21 WASHER,FLAT 5/8 Fits: All models	8	347 in stock
6	Lock Washer NSN 5310-00-820-6653 · P/N MS35338-50 WASHER,LOCK 5/8 Fits: All models	8	157 in stock
7	Machine Bolt NSN 5306-01-255-2661 · P/N 9424760 BOLT,MACHINE 5/8-11 X 2.00 Fits: All models	8	We can source it
8	Shock Mount Bracket NSN 2510-01-187-7037 · P/N 12338315 BRACKET,SHOCK MOUNT Fits: All models	4	3 in stock $70–$115 eachtypical

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
