HMMWV Stabilizer Bar and Connecting Links TM 9-2320-280-24P · Fig. 194

Every part in figure 194 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1605 Torque, Radius and Stabilizer Rods: 13 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

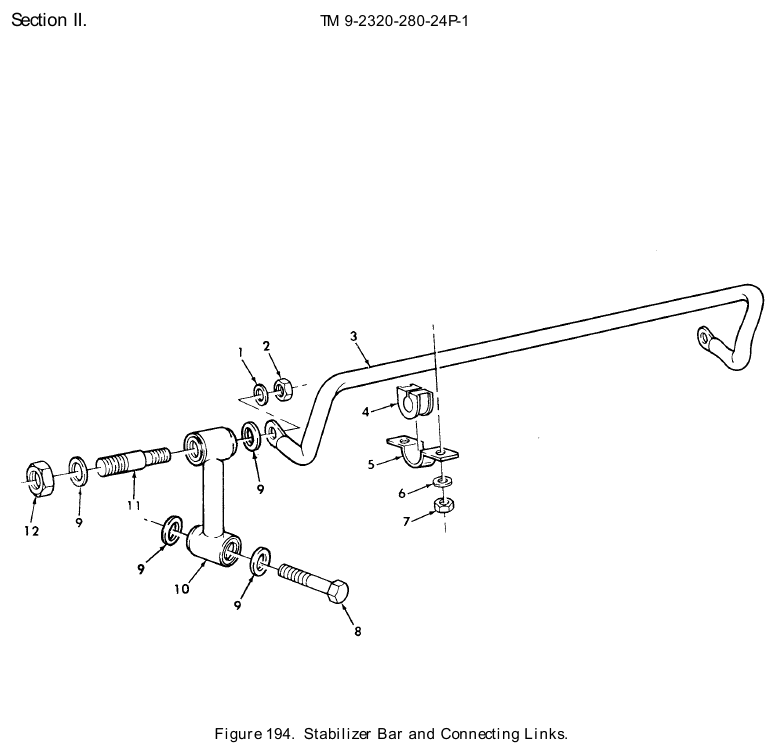

TM 9-2320-280-24P figure 194, Stabilizer Bar and Connecting Links: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-01-253-8948 · P/N 5593320 WASHER,FLAT 1/2 Fits: All models	2	7 in stock
2	Plain Hexagon Nut NSN 5310-01-184-5784 · P/N 9422302 NUT,PLAIN,HEXAGON 1/2-20 Fits: All models	2	4 in stock
3	Stabilizer Bar NSN 2510-01-187-2239 · P/N 12338329 BAR,STABILIZER Fits: All A0 and A1 models, plus M1121	1	8 in stock $239.54 per eachgov't list price
3	Stabilizer Bar NSN 2510-01-456-2277 · P/N 6004872 BAR,STABILIZER Fits: All A2 models, plus M1123	1	20 in stock $184.15 per eachgov't list price
4	Nonmetallic Grommet NSN 5325-01-191-0595 · P/N 12338317 GROMMET,NONMETALLIC STABILIZER BAR Fits: All models	2	1 in stock
5	Retaining Strap NSN 5340-01-190-0810 · P/N 12338319 STRAP,RETAINING Fits: All models	2	87 in stock $24.39our price Buy online ↗
6	Flat Washer NSN 5310-00-167-0822 · P/N 7725882 WASHER,FLAT 7/16 Fits: All models	4	214 in stock
7	Plain Hexagon Nut NSN 5310-00-896-0903 · P/N MS51967-12 NUT,PLAIN,HEXAGON 7/16-14 Fits: All models	4	253 in stock
8	Cap Hexagon Head Screw NSN 5305-00-724-7228 · P/N B1821BH063C300N SCREW,CAP,HEXAGON H 5/8-11 X 3.00 Fits: All models	2	9 in stock
9	Flat Washer NSN 5310-01-185-8689 · P/N 12338322 WASHER,FLAT 5/8 Fits: All models	8	8 in stock
10	Rigid Connecting Link NSN 3040-01-186-3718 · P/N 12338323 CONNECTING LINK,RIG Fits: All models	2	5 in stock $50–$90 eachtypical
11	Recessed and Stepped Stud NSN 5307-01-188-1229 · P/N 12339207 STUD,RECESSED AND S Fits: All models	2	8 in stock $113.08 per eachgov't list price
12	Self-Locking Hexagon Nut NSN 5310-00-061-4651 · P/N 12387349-43 NUT,SELF-LOCKING,HE 5/8-11 Fits: All models	2	256 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
