HMMWV Rear Radius Rods TM 9-2320-280-24P · Fig. 195

Every part in figure 195 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1605 Torque, Radius and Stabilizer Rods: 14 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

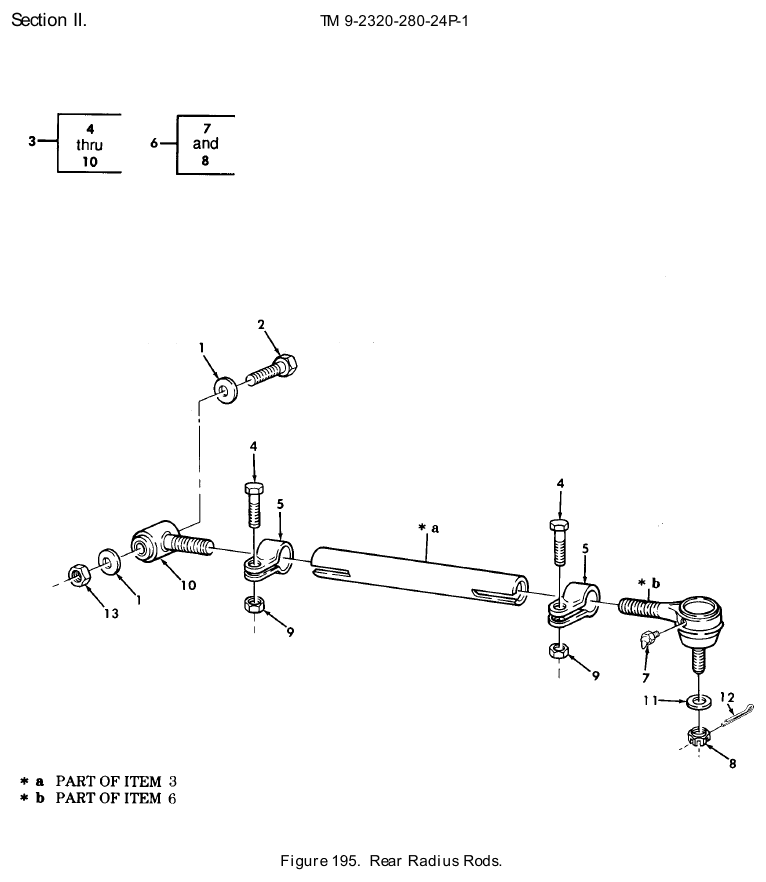

TM 9-2320-280-24P figure 195, Rear Radius Rods: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-01-260-4839 · P/N 5593312 WASHER,FLAT 3/4 Fits: All models	4	We can source it
2	Cap Hexagon Head Screw NSN 5305-00-947-4361 · P/N B1821BH075C475N SCREW,CAP,HEXAGON H 3/4-10 X 4.75 Fits: All models	2	3 in stock
3	Stabilizer Bar NSN 2510-01-205-6089 · P/N L-18-VT-5277-B-1 BAR,STABILIZER REAR 1 U0C:AVY,A11,A13,A14,A15,A20,A24,A25, A26,A27,B16,B17,B18,HVY,H11,H13,H14, H15,H16,H17,H18,H20,H21,H24,H25,H26, H27,H28 Fits: All models	2	14 in stock quote only $206.02 per assemblygov't list price
3	Stabilizer Bar NSN 2510-01-423-2877 · P/N 6005274B1 BAR,STABILIZER REAR U0C:BVY,B15,B20,B24,B25,C17 Fits: All models	2	10 in stock $223.57 per eachgov't list price
4	Cap Hexagon Head Screw NSN 5305-01-211-7478 · P/N 9419079 SCREW,CAP,HEXAGON H 7/16-14 X 1-3/4 Fits: All models	2	We can source it
5	Loop Clamp NSN 5340-01-191-8161 · P/N L-18-CPS-5-A-10 CLAMP,LOOP Fits: All models	2	877 in stock
6	Steering Tie Rod End NSN 2530-01-197-2160 · P/N L-18-SV-5150-C-1 TIE ROD END,STEERIN 2 Fits: All models	1	303 in stock $103.58 per eachgov't list price
7	Lubrication Fitting NSN 4730-00-050-4205 · P/N MS15001-3 FITTING,LUBRICATION Fits: All models	1	We can source it
8	Plain Slotted Hexagon Nut NSN 5310-01-212-2213 · P/N 9428308 NUT,PLAIN,SLOTTED,H 5/18-18 Fits: All models	1	1 in stock
9	Plain Hexagon Nut NSN 5310-00-896-0903 · P/N MS51967-12 NUT,PLAIN,HEXAGON 7/16-14 Fits: All models	2	253 in stock
10	Steering Tie Rod End NSN 2530-01-186-3740 · P/N 941180 TIE ROD END,STEERIN Fits: All models	1	104 in stock $171.62 per eachgov't list price
11	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8 Fits: All models	2	We can source it
12	Cotter Pin NSN 5315-00-012-0123 · P/N MS24665-355 PIN,COTTER 1/8 X 1.25 Fits: All models	2	955 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 Fits: All models	2	5,754 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
