HMMWV Body Mounting Components TM 9-2320-280-24P · Fig. 196

Every part in figure 196 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 18 Body, Cab, Hood, and Hull Assembly: 22 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

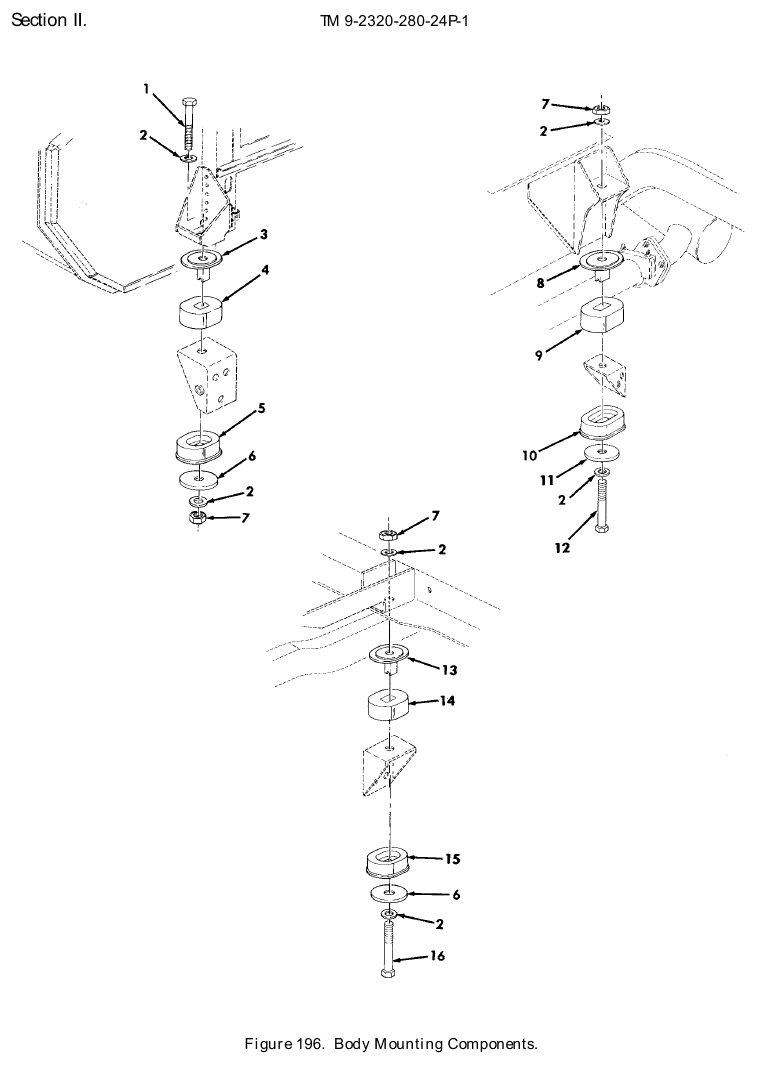

TM 9-2320-280-24P figure 196, Body Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-724-7254 · P/N B1821BH063C400N SCREW,CAP,HEXAGON H FRONT R.H.,5/8- 11 X 4.00 Fits: All models	1	210 in stock
1	Cap Hexagon Head Screw NSN 5305-00-724-7248 · P/N B1821BH063C375N SCREW,CAP,HEXAGON H FRONT L.H.,5/8- 11 X 3.75 Fits: All models	1	We can source it
2	Flat Washer NSN 5310-01-151-7347 · P/N 2436167 WASHER,FLAT 5/8 Fits: All models	12	We can source it
3	Sleeve Spacer NSN 5365-01-186-1294 · P/N 5569268 SPACER,SLEEVE FRONT Fits: All models	2	12 in stock $25–$45 eachtypical
4	Resilient Weapon System Mount NSN 5342-01-189-5452 · P/N 5569270 MOUNT,RESILIENT UPPER FRONT Fits: All models	2	74 in stock quote only $25–$55 eachtypical
5	Resilient Weapon System Mount NSN 5342-01-186-7236 · P/N 12339247-1 MOUNT,RESILIENT LOWER FRONT Fits: All models	2	70 in stock $28.00our price Buy online ↗
6	Flat Washer NSN 5310-01-476-9321 · P/N 12339248-3 SPACER,RING L.H.,FRONT Fits: All models	1	5 in stock
6	Flat Washer NSN 5310-01-252-7285 · P/N 12339248-2 WASHER,FLAT BODY MOUNT,RIGHT FRONT AND REAR Fits: All models	2	We can source it
7	Self-Locking Hexagon Nut NSN 5310-01-130-4274 · P/N 9422305 NUT,SELF-LOCKING,HE 5/8-11 Fits: All models	6	We can source it
8	Sleeve Spacer NSN 5365-01-186-1294 · P/N 5569268 SPACER,SLEEVE INTERMEDIATE Fits: All models	2	12 in stock $25–$45 eachtypical
9	Resilient Utility Mount NSN 5340-01-209-7802 · P/N 12339244-3 MOUNT,RESILIENT UPPER INTERMEDIATE Fits: All models	2	50,776 in stock $16.00our price Buy online ↗
10	Resilient Weapon System Mount NSN 5342-01-406-6962 · P/N 12339247-3 MOUNT,RESILIENT LOWER INTERMEDIATE Fits: All models	2	4 in stock $25–$55 eachtypical
11	Ring Spacer NSN 5365-01-214-4987 · P/N 5583215 SPACER,RING INTERMEDIATE Fits: All models	2	We can source it
12	Cap Hexagon Head Screw NSN 5305-00-724-7254 · P/N B1821BH063C400N SCREW,CAP,HEXAGON H INTERMEDIATE, R.H., 5/8-11 X 4.00 Fits: All models	2	210 in stock
12	Cap Hexagon Head Screw NSN 5305-00-724-7264 · P/N B1821BH063C450N SCREW,CAP,HEXAGON H INTERMEDIATE, L.H.,5/8-11 X 4.50 Fits: All models	2	24 in stock
13	Sleeve Spacer NSN 5365-01-264-4023 · P/N 12339249-1 SPACER,SLEEVE REAR Fits: All models	2	16 in stock $25–$45 eachtypical
14	Resilient Weapon System Mount NSN 5342-01-189-5452 · P/N 5569270 MOUNT,RESILIENT UPPER REAR Fits: All A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	74 in stock quote only $25–$55 eachtypical
14	Resilient Utility Mount NSN 5340-01-209-7802 · P/N 12339244-3 MOUNT,RESILIENT UPPER REAR Fits: M996, M996A1, M997, M997A1, M997A2, M1037 and 5 more	2	50,776 in stock $16.00our price Buy online ↗
15	Resilient Weapon System Mount NSN 5342-01-186-7236 · P/N 12339247-1 MOUNT,RESILIENT LOWER REAR Fits: All A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	70 in stock $28.00our price Buy online ↗
15	Resilient Weapon System Mount NSN 5342-01-406-6962 · P/N 12339247-3 MOUNT,RESILIENT LOWER REAR Fits: M996, M996A1, M997, M997A1, M997A2, M1037 and 5 more	2	4 in stock $25–$55 eachtypical
16	Cap Hexagon Head Screw NSN 5305-00-724-7263 · P/N B1821BH063C425N SCREW,CAP,HEXAGON H REAR,5/8-11 X 4.25 Fits: All A1 models except M996A1, M997A1, M1097A1; all A2 models except M997A2, M1097A2, plus M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	We can source it
16	Cap Hexagon Head Screw NSN 5305-00-724-7264 · P/N B1821BH063C450N SCREW,CAP,HEXAGON H BODY MOUNT REAR,5/8-11 X 4.50 Fits: M996, M996A1, M997, M997A1, M997A2, M1037 and 5 more	2	24 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
