HMMWV Body Assembly Components, Left Hand TM 9-2320-280-24P · Fig. 197

Every part in figure 197 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 40 lines, 25 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

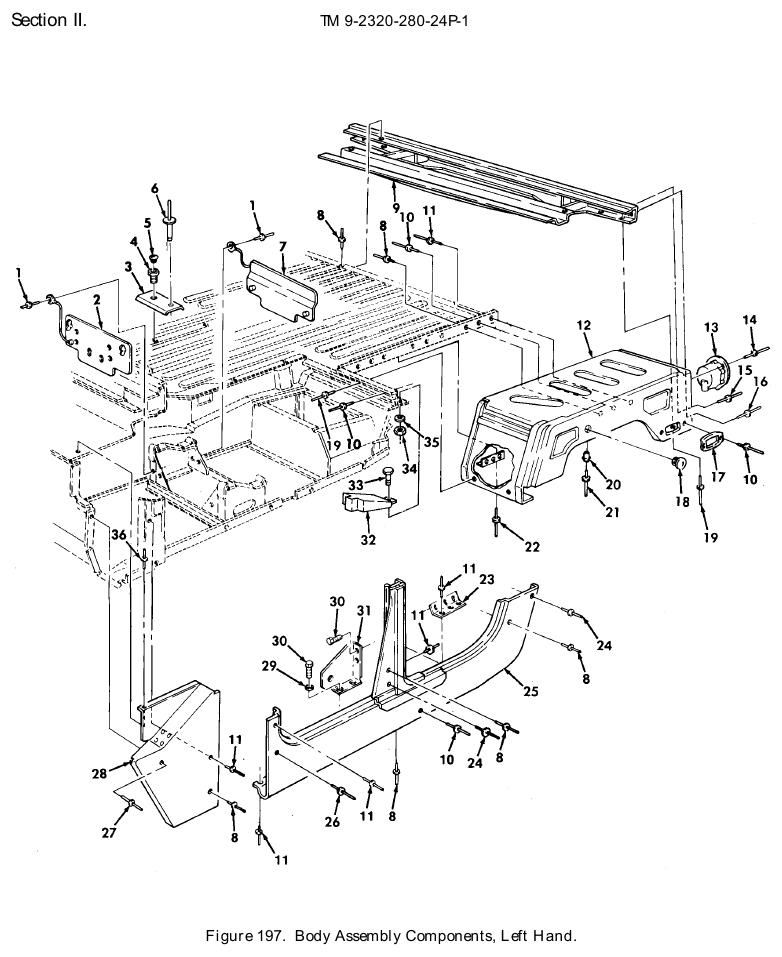

TM 9-2320-280-24P figure 197, Body Assembly Components, Left Hand: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-00-083-5009 · P/N ADS43 RIVET,BLIND 1/8 DIA Fits: All models	2	641 in stock
2	Seat Vehicular Support NSN 2540-01-197-5448 · P/N 12339026 SUPPORT,SEAT,VEHICU FRONT Fits: All models	1	22 in stock $40–$80 eachtypical
3	Double Angle Bracket NSN 5340-01-333-6038 · P/N 12342295 BRACKET,DOUBLE ANGL RADIO RACK Fits: All models	4	We can source it
4	Plain Blind Rivet Nut NSN 5310-01-198-1724 · P/N S31P280 NUT,PLAIN,BLIND RIV RADIO RACK Fits: All models	4	We can source it $35–$75 eachtypical
5	Plug Button NSN 5340-01-264-6104 · P/N 207-180201-0101 BUTTON,PLUG Fits: All models	4	We can source it
6	Blind Rivet NSN 5320-01-254-4251 · P/N 5593050 RIVET,BLIND Fits: All models	8	62 in stock
7	Seat Vehicular Support NSN 2540-01-197-5447 · P/N 12339027 SUPPORT,SEAT,VEHICU REAR 000 AND ABOVE Fits: All models	1	15 in stock $45–$90 eachtypical
8	Blind Rivet NSN 5320-01-136-1782 · P/N CR3213-6-4 RIVET,BLIND 3/16 DIA.,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	19	50 in stock
9	Vehicular Components Bracket NSN 2590-01-410-9968 · P/N 12446928 BRACKET,VEHICULAR C REAR,D-BEAM Fits: All models	1	44 in stock $812.57 per eachgov't list price
10	Blind Rivet NSN 5320-01-086-1143 · P/N CR3213-6-9 RIVET,BLIND 3/16 DIA Fits: All models	52	14 in stock
11	Blind Rivet NSN 5320-01-135-7319 · P/N CR3213-6-3 RIVET,BLIND 3/16 DIA Fits: All models	101	72 in stock
12	Vehicular Fender NSN 2510-01-335-4171 · P/N 12339701-1 FENDER,VEHICULAR LEFT SIDE REAR Fits: All models	1	2 in stock $1,400.00our price Buy online ↗
13	Light Housing NSN 5342-01-194-3128 · P/N 5575569 BRACKET TAILLAMP HOUSING Fits: All models	1	4,009 in stock $23.03our price Buy online ↗
14	Blind Rivet NSN 5320-01-275-1998 · P/N BAPKTR-64 RIVET,BLIND 3/16 DIA Fits: All models	8	We can source it
15	Solid Rivet NSN 5320-00-117-6856 · P/N MS20470AD6-12 RIVET,SOLID USE WITH ITEM 9,P/N 12446928 Fits: All A0 models except M996, M997; all A1 models except M996A1, M997A1; all A2 models except M997A2, plus M1121, M1123	32	380 in stock
15	Solid Rivet NSN 5320-00-117-6856 · P/N MS20470AD6-12 RIVET,SOLID USE WITH ITEM 9,P/N 12446928 Fits: M996, M996A1, M997, M997A1, M997A2	24	380 in stock
15	Solid Rivet NSN 5320-00-117-6853 · P/N MS20470AD6-8 RIVET,SOLID USE WITH ITEM 9,P/N 12338758 Fits: All A0 models except M996, M997, M1097; all A1 models except M996A1, M997A1, plus M1121	36	80 in stock
15	Solid Rivet NSN 5320-00-117-6853 · P/N MS20470AD6-8 RIVET,SOLID USE WITH ITEM 9,P/N 12338758 Fits: M996, M996A1, M997, M997A1	28	80 in stock
16	Blind Rivet NSN 5320-01-407-6239 · P/N NAS9303B-6-06 RIVET,BLIND USE WITH ITEM 9,P/N 12446928 Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
16	Blind Rivet NSN 5320-01-407-6239 · P/N NAS9303B-6-04 RIVET,BLIND USE WITH ITEM 9,P/N 12338758 Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
17	Light Housing NSN 6220-01-200-0897 · P/N 12338709 HOUSING,LIGHT MARKER Fits: All models	1	13 in stock
18	Protective Dust and Moi Cap-Plug NSN 5340-01-203-1980 · P/N 2683 CAP-PLUG,PROTECTIVE Fits: All models	2	521 in stock
19	Blind Rivet NSN 5320-01-085-9995 · P/N CR3213-6-7 RIVET,BLIND 3/16 DIA Fits: All models	17	We can source it
20	Pin-Rivet Collar NSN 5320-01-075-0367 · P/N NAS1080R06 COLLAR,GROOVED PIN Fits: All models	2	We can source it
21	Pin-Rivet NSN 5320-01-333-5545 · P/N M23469/2-50605 PIN-RIVET,GROOVED Fits: All models	2	We can source it
22	Solid Rivet NSN 5320-00-721-9062 · P/N MS20470AD6-10 RIVET,SOLID 3/16 DIA Fits: All models	16	We can source it
23	Angle Bracket NSN 5340-01-253-3757 · P/N 12338667 BRACKET,ANGLE Fits: All models	1	1 in stock
24	Blind Rivet NSN 5320-01-084-9235 · P/N CR3213-6-5 RIVET,BLIND 3/16 DIA Fits: All models	7	7 in stock
25	Body Vehicular Panel NSN 2510-01-335-7799 · P/N 12339698-3 PANEL,BODY,VEHICULA Fits: All models	1	We can source it $960.21 per eachgov't list price
26	Blind Rivet NSN 5320-01-084-6101 · P/N CR3212-6-3 RIVET,BLIND 3/16 DIA Fits: All models	3	12 in stock
27	Blind Rivet NSN 5320-01-143-5075 · P/N CR3213-6-2 RIVET,BLIND 3/16 DIA Fits: All models	21	92 in stock
28	Vehicula Cowl Panel NSN 2510-01-186-3106 · P/N 12338734 COWL PANEL,VEHICULA Fits: All models	1	35 in stock $101.58 per eachgov't list price
29	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	2	2,325 in stock
30	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All models	4	98 in stock
31	Mounting Bracket NSN 5340-01-246-8282 · P/N 12339988-1 BRACKET,MOUNTING L.H Fits: All models	1	We can source it $85–$145 per assemblytypical
32	Seal Assembly NSN 5330-01-252-5377 · P/N 5581162 SEAL ASSEMBLY Fits: All models	1	We can source it $30–$70 per assemblytypical
33	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: All models	1	287 in stock
34	Self-Locking Hexagon Nut NSN 5310-01-186-1245 · P/N 9423869 NUT,SELF-LOCKING,HE #10-24 Fits: All models	1	We can source it
35	Flat Washer NSN 5310-00-012-0391 · P/N 120391 WASHER,FLAT 5/16 Fits: All models	1	We can source it
36	Solid Rivet NSN 5320-00-117-6853 · P/N MS20470AD6-8 RIVET,SOLID Fits: All A2 models, plus M1123	4	80 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
