Catalog › Parts manuals › TM 9-2320-280-24P › Body, Cab, Hood, and Hull Assembly › Fig. 198

HMMWV Body Assembly and Related Parts TM 9-2320-280-24P · Fig. 198

Every part in figure 198 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 29 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

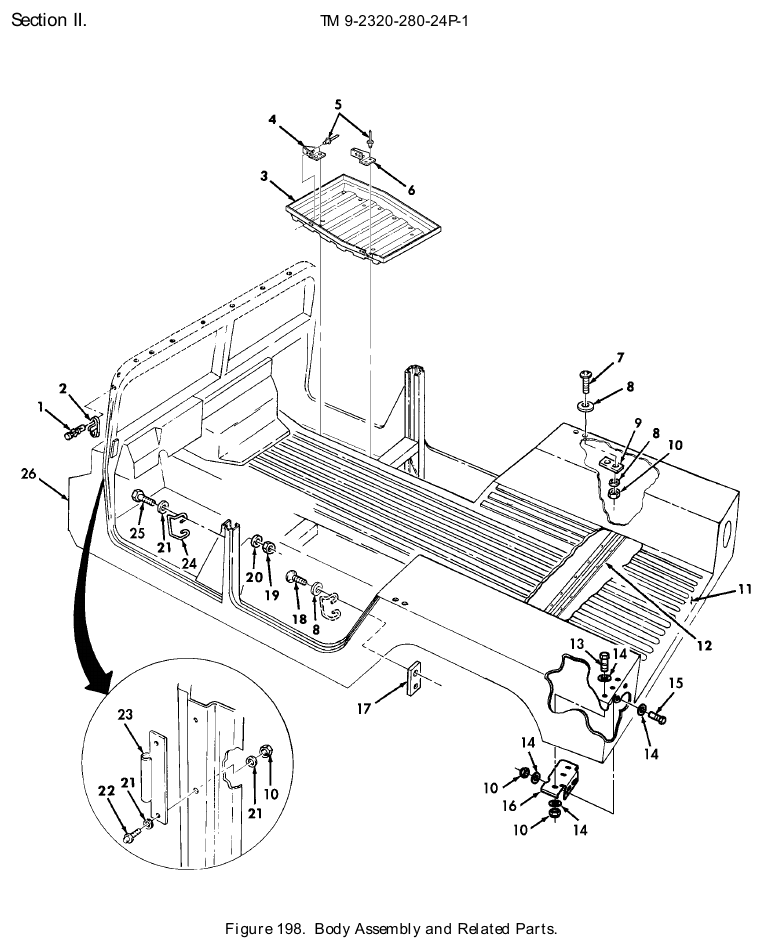

TM 9-2320-280-24P figure 198, Body Assembly and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND 1/8 DIA Fits: All models	4	132 in stock
2	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS WINDSHIELD Fits: All models	2	22 in stock
3	Battery Tray NSN 6160-01-470-4172 · P/N 12338765 TRAY,BATTERY FLOOR PLAN Fits: All models	1	132 in stock $148.86 per eachgov't list price
4	Angle Bracket NSN 5340-01-470-7135 · P/N 12339904 BRACKET,BATTERY FRONT Fits: All models	1	55 in stock $25–$45 eachtypical
5	Solid Rivet NSN 5320-00-754-0992 · P/N MS20470AD6-7 RIVET,SOLID Fits: All models	8	We can source it
6	Angle Bracket NSN 5340-01-470-7160 · P/N 12339905 BRACKET,BATTERY REAR Fits: All models	1	We can source it $30–$70 eachtypical
7	Cap Hexagon Head Screw NSN 5305-00-018-0024 · P/N 180024 SCREW,MACHINE 1/4-20 X .88 Fits: All models	12	We can source it
8	Flat Washer NSN 5310-00-187-0146 · P/N 120392 WASHER,FLAT 1/4 Fits: All models	24	195 in stock
9	Mending Plate NSN 5340-01-255-9510 · P/N 12339009 PLATE,MENDING REINFORCEMENT,C- PILLAR Fits: All models	6	5,308 in stock $7.69our price Buy online ↗
10	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	16	184 in stock
11	Body Vehicular Panel NSN 2510-01-262-6010 · P/N 5588702 PANEL,BODY,VEHICULA CARGO FLOOR PANEL REPAIR,24 X 24 INCHES Fits: All models	1	79 in stock quote only $183.33 per eachgov't list price
12	Structural Vehicul Frame Section NSN 2510-01-262-6007 · P/N 12338740 FRAME SECTION,STRU CARGO FLOOR SUPPORT Fits: All models	3	We can source it $134.71 per eachgov't list price
13	Electrical Lead Assembly NSN 5995-01-211-4505 · P/N 180021 SCREW,CAP,HEXAGON H Fits: All models	6	We can source it $80–$135 eachtypical
14	Flat Washer NSN 5310-01-103-6042 · P/N 120392 WASHER,FLAT Fits: All models	16	40 in stock
15	Machine Bolt NSN 5306-01-371-4685 · P/N 180022 BOLT,MACHINE Fits: All models	4	We can source it
16	Mounting Bracket NSN 5340-01-470-5892 · P/N 12339031-1 BRACKET,RETAINER L.H Fits: All models	1	We can source it
16	Mending Plate NSN 5340-01-433-6262 · P/N 12339031-2 BRACKET,RETAINER R.H Fits: All models	1	We can source it
17	Assembled Nut Retainer NSN 5340-01-197-5477 · P/N 5584423 RETAINER,ASSEMBLED REAR DOOR STRIKER Fits: All models	2	21 in stock
18	Machine Screw NSN 5305-00-988-1727 · P/N MS35206-283 SCREW,MACHINE 1/4-20 X 3/4 Fits: All models	4	2,424 in stock
19	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51942-34 NUT,SELF-LOCKING,HE 5/16-24 Fits: All models	4	904 in stock
20	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: All models	8	1,368 in stock
21	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT Fits: All models	8	351 in stock
22	Machine Bolt NSN 5306-01-323-5534 · P/N 12340352-2 BOLT,MACHINE TOP FRONT HINGE,1/4-20 X 7/8 2-DOOR Fits: All models	8	We can source it $25–$40 eachtypical
22	Machine Bolt NSN 5306-01-323-5535 · P/N 5585259-B BOLT MACHINE BOTTOM FRONT HINGE AND TOP AND BOTTOM REAR HINGE, 1/4-20 X 3/4 4-DOOR Fits: All models	12	1,653 in stock
23	Hinge Mount NSN 5342-01-203-2822 · P/N 13338650 MOUNT,RESILIENT Fits: All models	8	24,044 in stock $10.00our price Buy online ↗
24	Buckle NSN 5340-01-207-0717 · P/N 5581362 BUCKET FRONT Fits: All models	2	101 in stock $17.50our price Buy online ↗
25	Machine Bolt NSN 5306-00-182-2027 · P/N AN5H10A BOLT,MACHINE 5/16-24 X 1.00 Fits: All models	4	360 in stock
26	Structural Vehicular Frame NSN 2510-01-359-2076 · P/N 12446861 FRAME,STRUCTURAL,VE COMPLETE Fits: All A1 and A2 models, plus M1097, M1123	1	We can source it quote only $29,420.73 per eachgov't list price
26	Structural Vehicul Frame Section NSN 2510-01-262-6011 · P/N 12446868 FRAME SECTION,STRU REPLACEMENT BODY ASSEMBLY Fits: All A0 models except M1097, plus M1121	1	We can source it $27,887.15 per assemblygov't list price

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
